Preen AFV+ Series - Page 86

AFV
+
Series High Power Programmable AC Power Supply
3-74

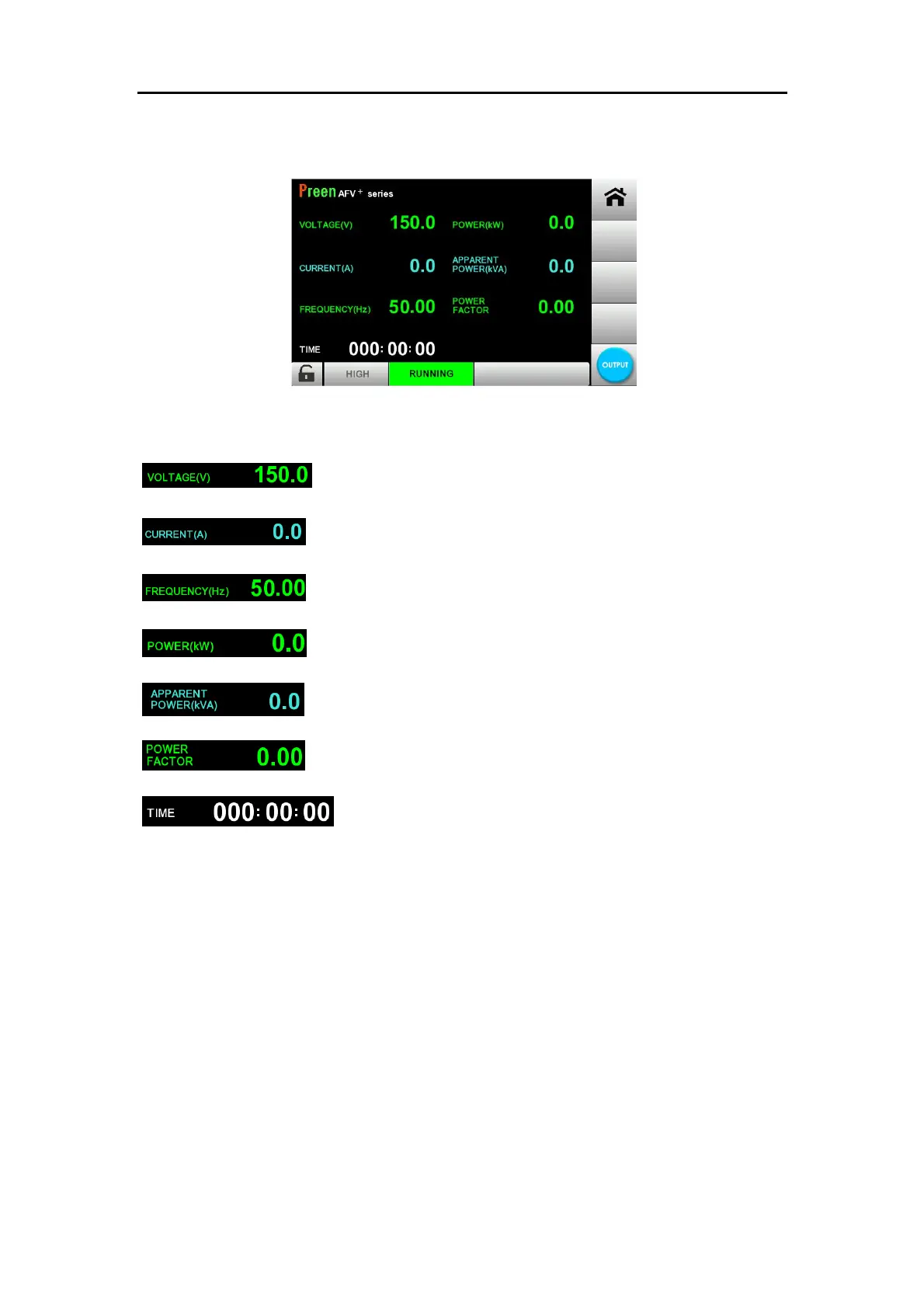

Single-phase meter page is described as figure below.
Figure 3.57 Single-phase meter page
：Displays measurement of the output voltage.
：Displays measurement of the output current.
：Displays measurement of the output frequency.
：Displays measurement of the output power (W).
：Displays measurement of the apparent power (VA).
：Displays measurement of the output power factor.
：Displays run time (hour/minute/second)
