GPIO Port provided in ProntoNet with serial number 8938/00250 or later

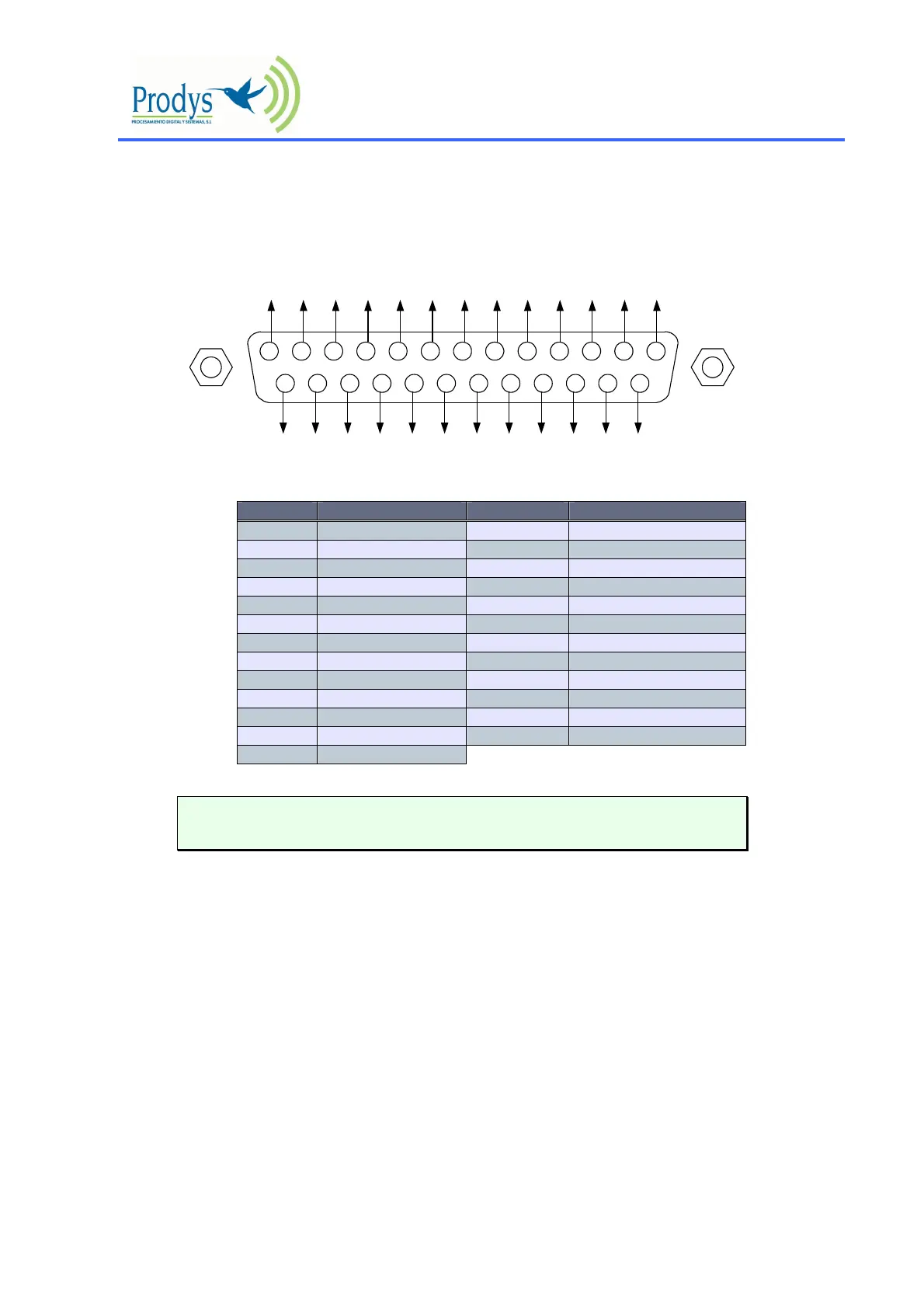

A subD 25 pin socket provides a general purpose connection with 7 inputs and 7 outputs. The
connections must be wired according to the following diagram:
12345
15
9 678
1617181920
10111213
25 24 23 22 21 14
NC
NC
NC
NC
OUT1
OUT3
OUT5
OUT7
NC
OUT2
OUT4
OUT6
GND
VCC
NC
IN2
IN4
IN6
NC
NC
IN1
GND
IN3
IN5
IN7
Pin Function Pin Function
1 +5VDC 14 IN 7
2 IN 6 15 IN 5
3 IN 4 16 IN 3
4 IN 2 17 IN 1
5 NC 18 NC
6 NC 19 NC
7 GND 20 GND
8 OUT 7 21 OUT 6
9 OUT 5 22 OUT 4
10 OUT 3 23 OUT 2
11 OUT 1 24 NC
12 NC 25 NC
13 NC
Pin 1 is connected to +5 volts. If you need it , run this power supply through
your device with a resistor in series to limit the maximum current to 300 mA.
Inputs
The inputs are active for grounding (active low).
Outputs
The outputs are “open collector”. They allow an output of 5VDC on one pin to facilitate
interconnection with the outputs. Each output supports up to a maximum of 40VDC / 40 mA and
will require a pull-up resistor to function with other logic inputs. An appropriate value is 2.2
Kohms.
GPIO Port provided in ProntoNet with serial number previous to
8938/00250
ProntoNet with serial numbers before than 8938/00250 are provided with the following GPIO port
