Prontonet User’s Manual v410 64
Temperature out of range alarm will arise when the temperature goes over 39
ºC.
Lan traffic alarm will come up when more than 90% of the LAN bandwidth is in
use.

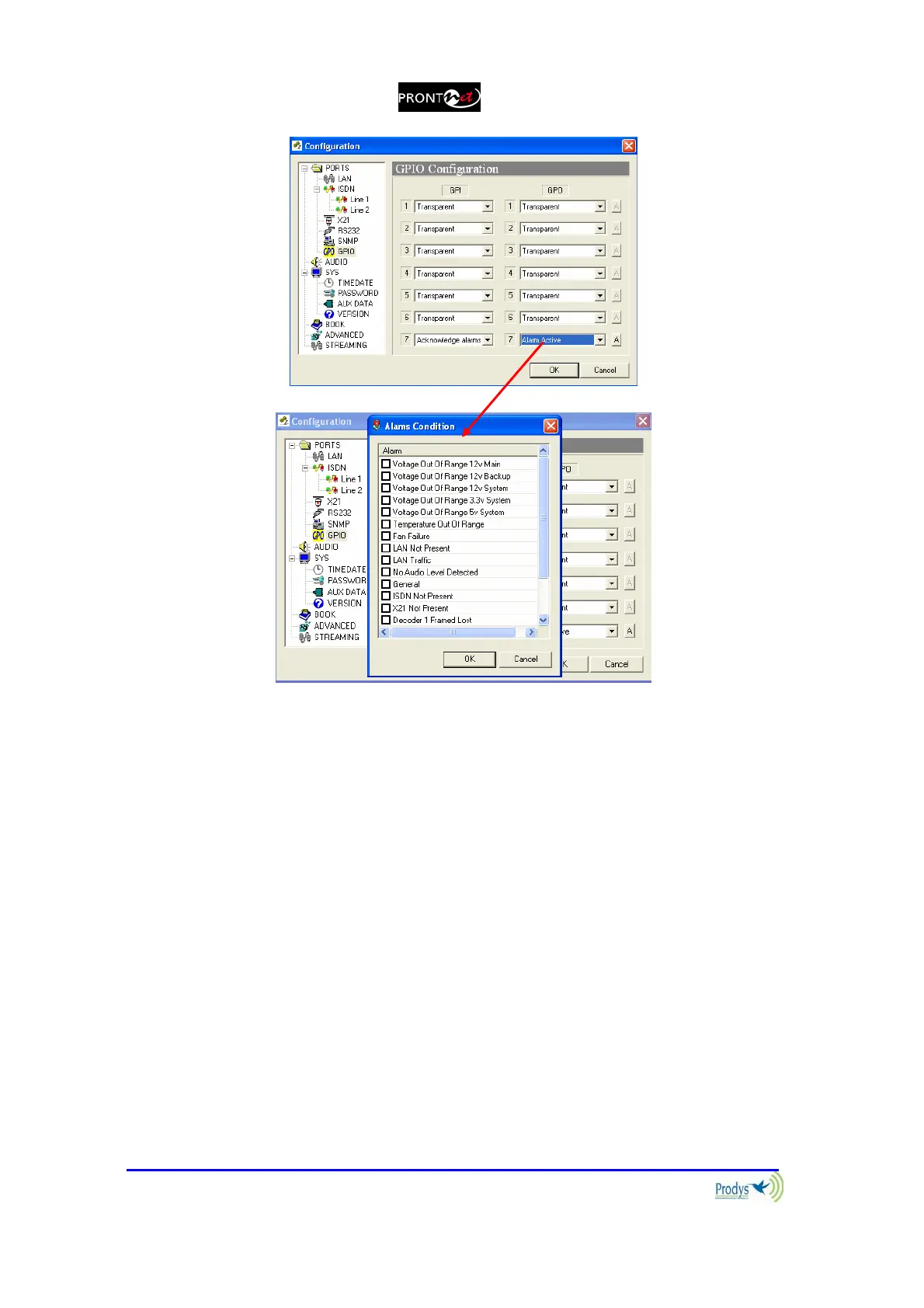

This GPO will be activated when one or more of the selected alarms arises. This
option is available from version 3.3.1.
V.1.2 Audio Input:
From here select the audio input (analog or digital). If it is digital we can choose
between synchronising with the audio input or with an external clock. The
AES/EBU Transparent is a special transmission mode for PCM 24 bits digital audio
without any processing at all. This mode allows to transmit “NON-PCM audio” or
data between devices that use AES3 digital audio interface, for example Dolby E
systems.
Audio gain adjustment: Audio inputs and outputs can be adjusted, even when
lines are connected, and each audio channel independently. This option is
available from version 3.3.1.
