10.2.1 Setting and Functional Description of the Relays
10.2.1.1
Setting and Functional Description of "Relay Off"
only with realy „off“
relay
setting ?
relay adjustment
relay1
relay2
off
off
A0224_GB

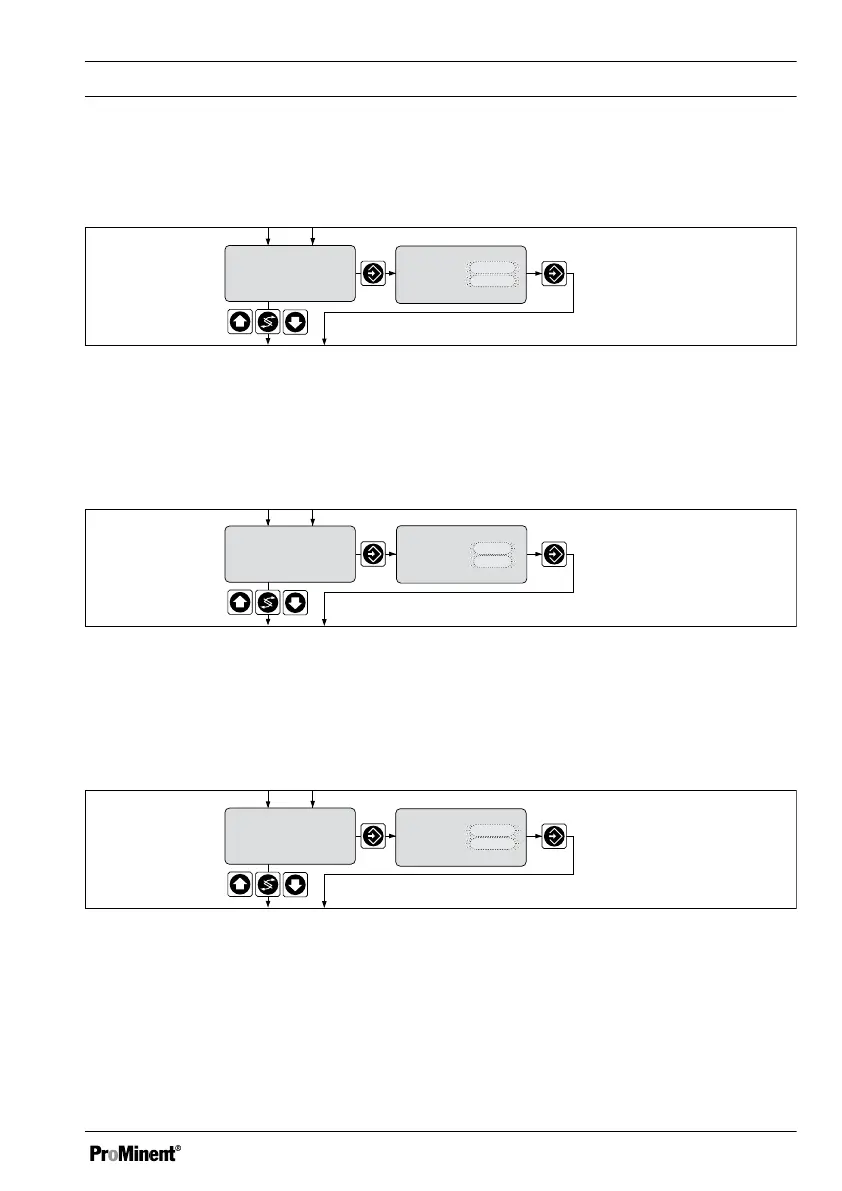

Fig. 56: Relay off
The functionality of the relays is switched off.
10.2.1.2 Setting and Functional Description of "Relay Used as a Limit
Relay"
only with limit value relay
relays
setting ?
relay adjustment
relay1
relay2
limit1
limit2
A0222_GB
Fig. 57: Limit relay
Relay 1 and/or relay 2 can be configured as limit relays. The limit values can be set in the
menu
Ä Chapter 10.3 ‘Setting the Limits’ on page 122
.
10.2.1.3 Setting and Functional Description of "Relay Used as an Actuator"
relay1
relay2
actuat1
actuat2
A0223_GB
relays
setting ?
relay adjustment
only with actuator
Fig. 58: Relay used as an actuator
Operating Menus Independent of Measured Variables
117
