ProMinent DULCOMETER D1Cb - Permanent Display 1

Meaning Comment Symbol
Solenoid valve 2 activation off Symbol right
Solenoid valve 2 activation on Symbol right
Stop key pressed
Manual dosing
Fault
Measured value rises very quickly Trend of measured value dis‐
play
Measured value rises quickly Trend of measured value dis‐
play
Measured value rises slowly Trend of measured value dis‐
play
Measured value falls very quickly Trend of measured value dis‐
play
Measured value falls quickly Trend of measured value dis‐
play
Measured value falls slowly Trend of measured value dis‐
play
Measured value steady Trend of measured value dis‐
play

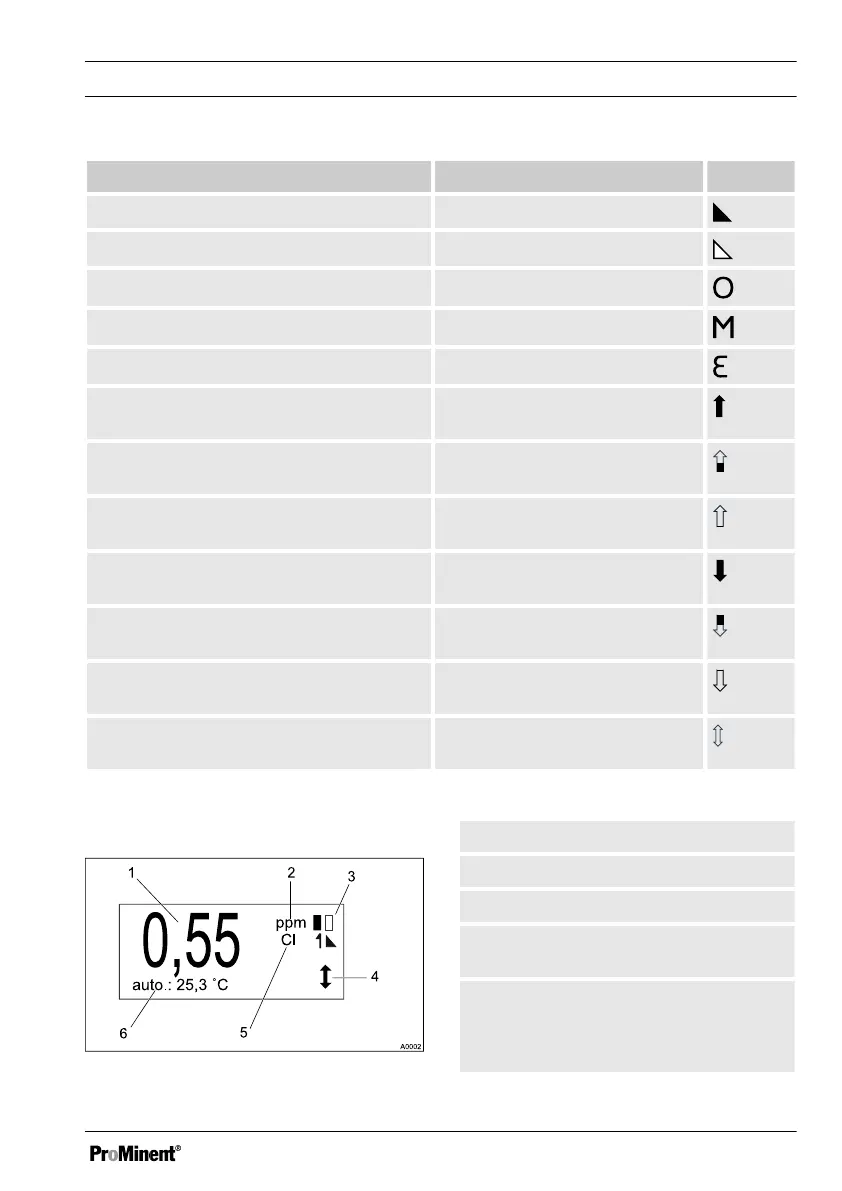

6.3 Permanent Display 1
Fig. 27: Permanent Display 1
1. Reading
2. Mass unit ("ppm" in this example)
3. Status of the actuators
4. Display of reading trend - falling /
rising
Not all symbols are visible simultane‐
ously in the permanent display 1. The
scope of the symbols depends on what
is required.
Operating diagram/ Display Symbols
61
