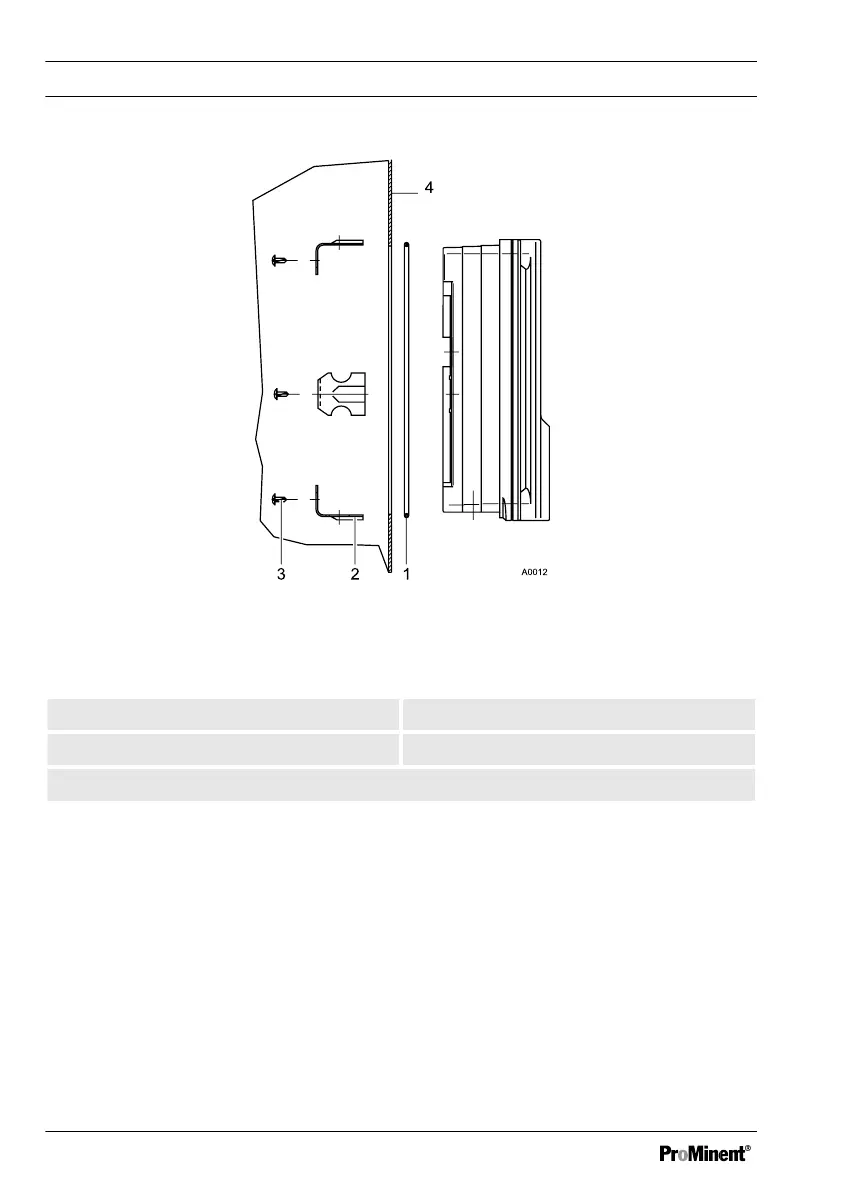

Fig. 5: The material thickness of the control panel must be at least 2 mm to ensure
secure fixing
1. 1 x Foam rubber caulk strip d3 2. 6 x Galvanised steel retaining brackets
3. 6 x Galvanised PT cutting screws 4. Control panel
For the part number of the assembly set, refer to
Ä Table on page 149
D1Cb mounting
