Fabricating the opening:
®®
STOP
S
T
A
RT
DULCOM
ETER
®
D
1
C
A0697

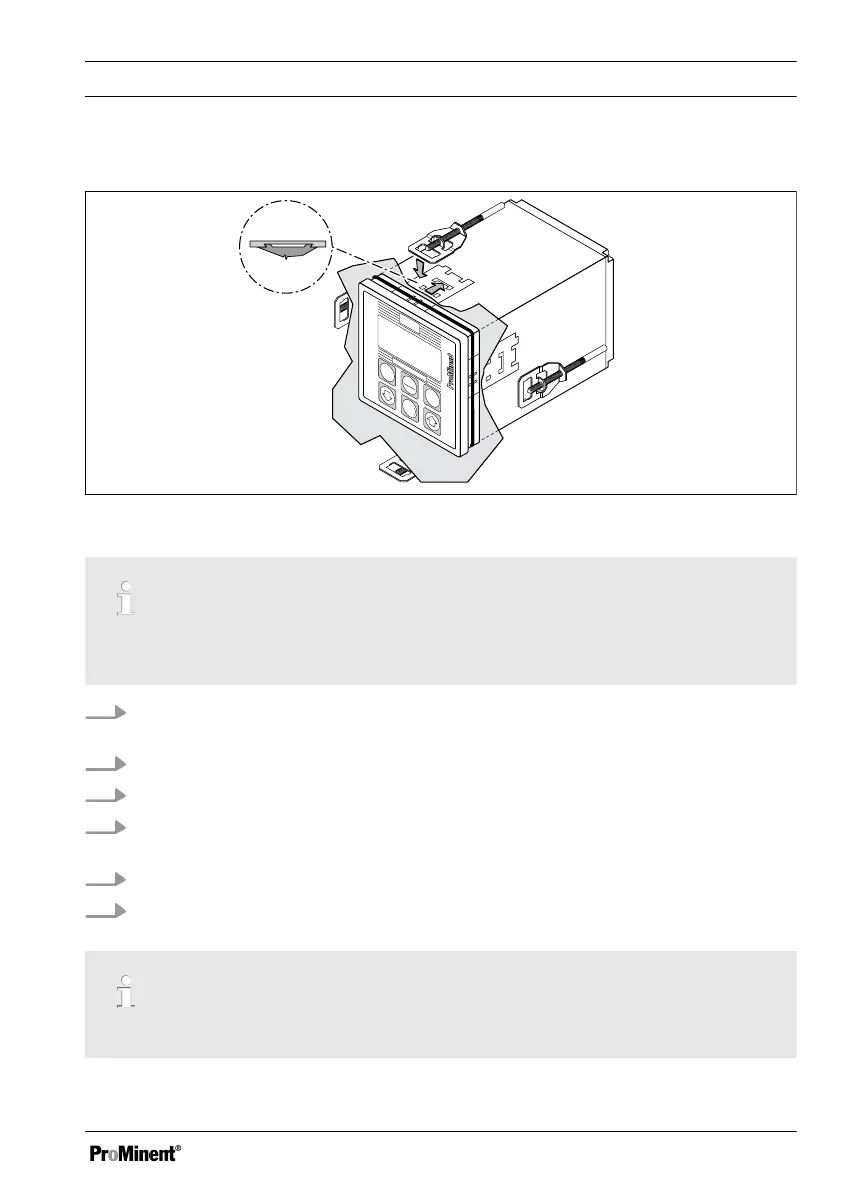

Fig. 17: Screw the studs forward
A drilling punched 1:1 template is enclosed with the device as a mounting aid. Its use
will ensure optimal positioning of the device on the control panel.
1. Align and secured the punched drilling template in the appropriate position on the
control panel using a spirit level
2. Mark the four corners using a centre punch and drill four holes using a 6 mm Ø bit
3. Then saw out the connected bridges with a jigsaw
4. Dress the surfaces so they are smooth and the dimensions are within the specified
tolerance.
5. Finally ensure the edges are fully de-burred
6. Before inserting the device in the control panel opening, check the position of the
seal (must lie against the front collar)
IP54 protection rating
D1Cc mounting
43
