Promise Technology Vess A6120 - Page 26

14
Vess A6000 Series NVR Server Promise Technology

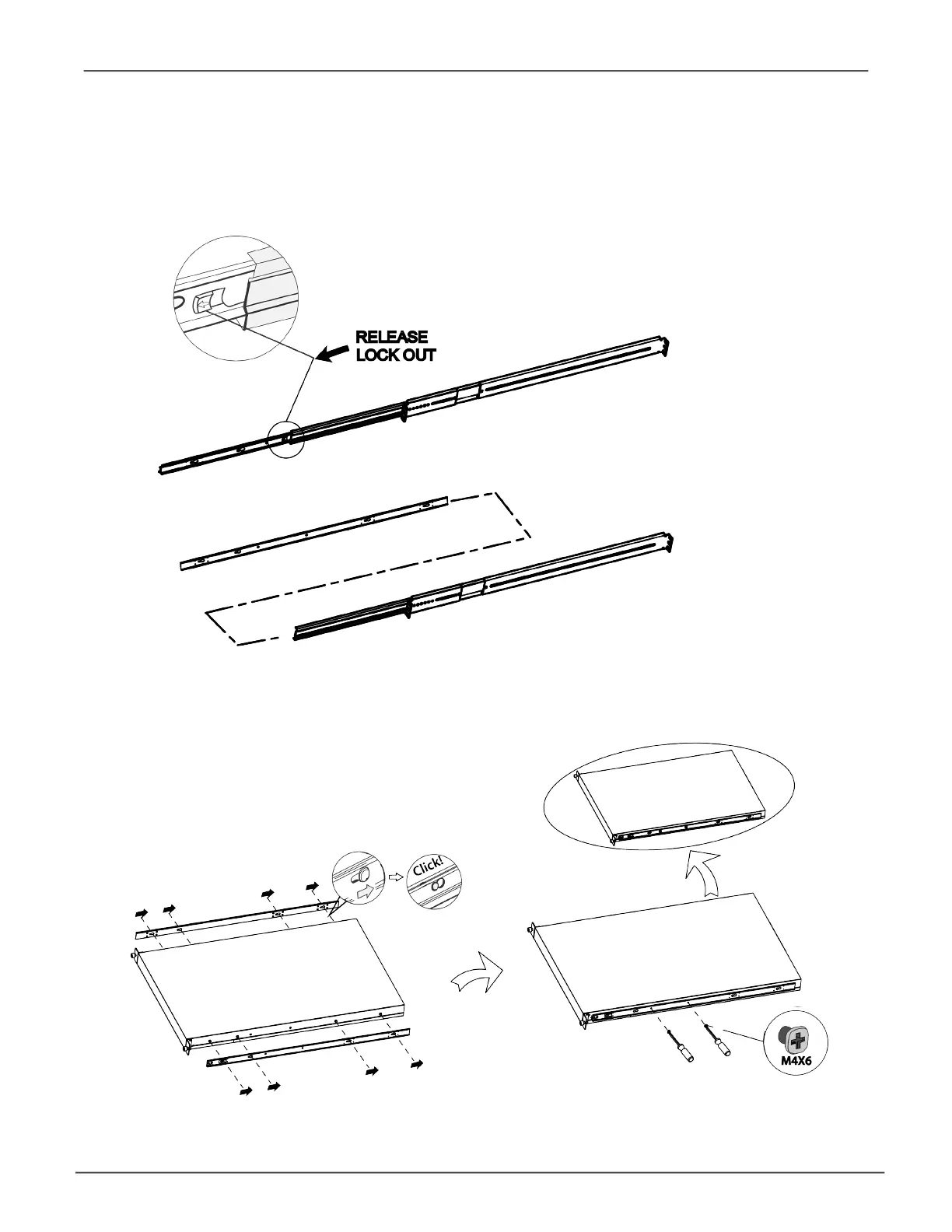

1. For both sliding rail assemblies, release and detach the inner member from the slide.
2. Attach the inner member of the sliding rail assembly to each side of the Vess A6120.
Follow these steps to install the mounting rails in an equipment rack.
