Promise Technology Vess A6120 User Manual

54
Vess A6000 Series NVR Server Promise Technology
AdVAnCed ConFigurAtion
When you choose the Advanced option, the Step 1 – Disk Array Creation screen displays.

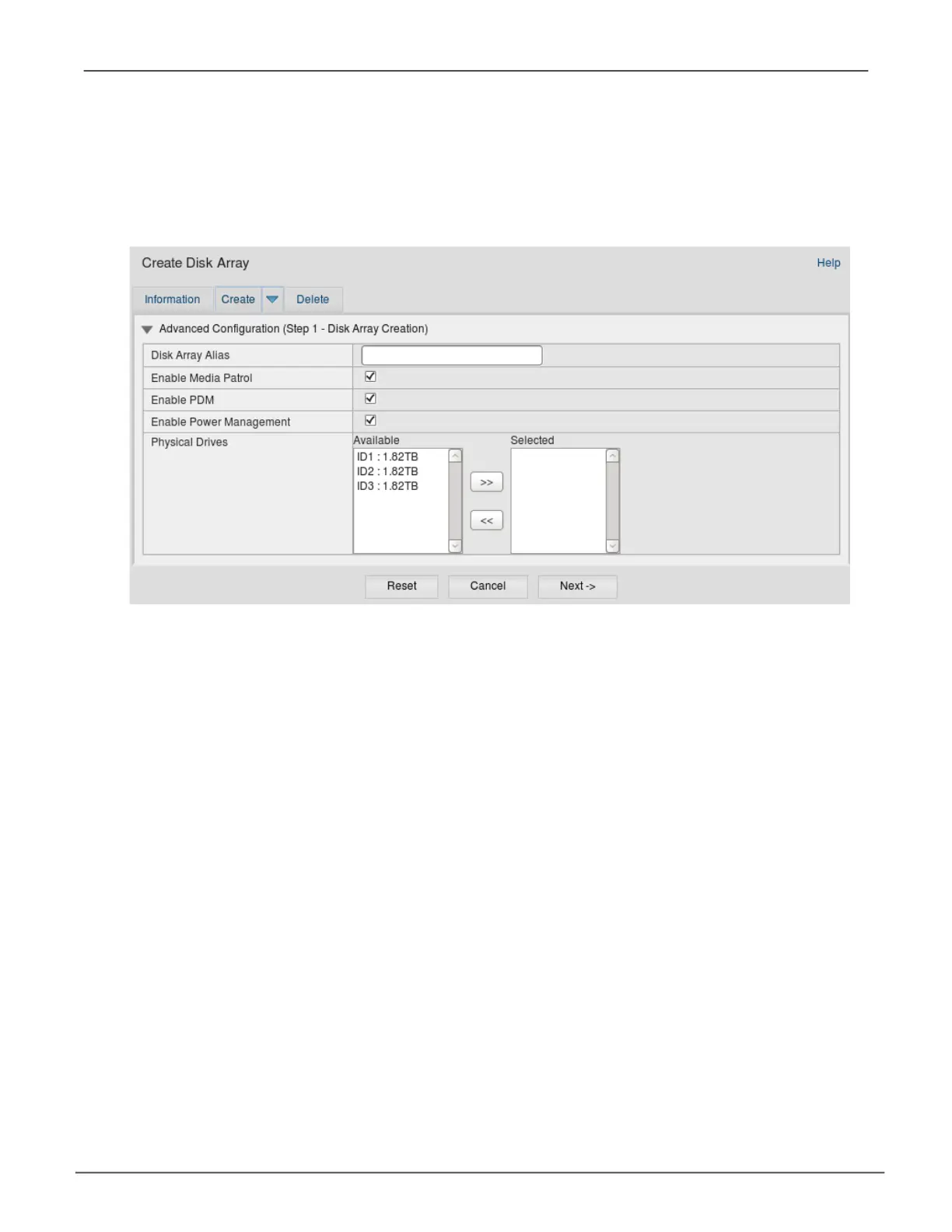

Advanced Conguraon (Step 1 Disk Array Creaon)
Step 1 – Disk Array Creation
1. Optional. Enter a name for the disk array in the eld provided.
Maximum of 32 characters; letters, numbers, space between characters, and underline.
Uncheck the boxes if you want to disable Media Patrol or PDM.
PROMISE recommends leaving these features enabled.
Highlight physical drives you want in the disk array from the Available list and press the >> button to
move them to the Selected list.
You can also double-click them to move them.
2. When you are done, click the Next button.

Promise Technology Vess A6120 Specifications

General

Brand	Promise Technology
Model	Vess A6120
Category	Storage
Language	English
