Promise Technology Vess A6120 - Installing a LAN Mezzanine Card

1
2
3
Standoff
Mezzanine Card

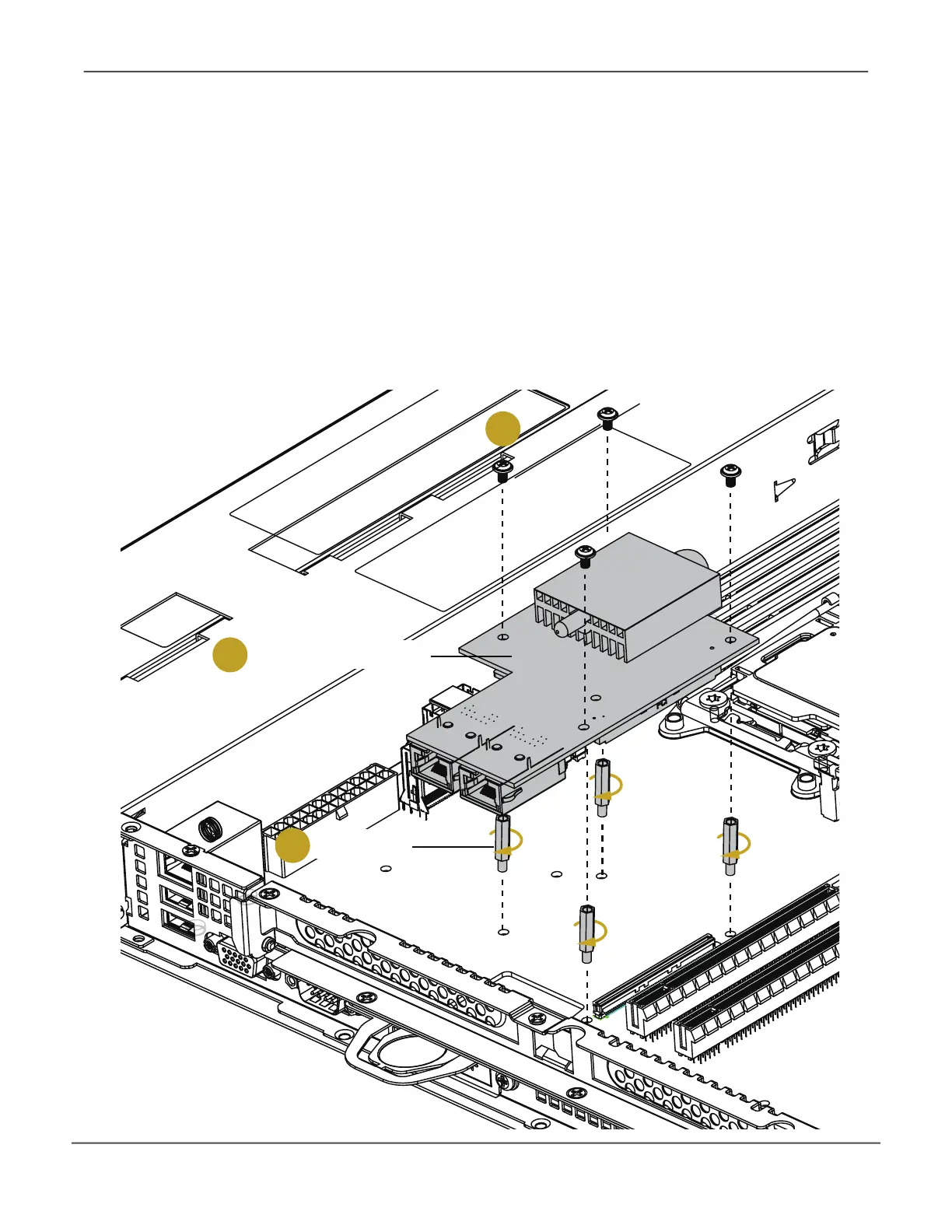

instALLing A LAn mezzAnine CArd
You can use an optional Ethernet mezzanine card for additional LAN ports. Please be aware that the mezzanine
card must be used in conjunction with a matching I/O module.
*For 10G BASE-T mezzanine card, you need to install the RJ-45 plug release module instead of a regular I/O
module.
1. Install the four standoffs into the motherboard around the mezzanine card slot. Hand- tighten the
standoffs.
2. Gently insert the mezzanine card into the mezzanine card slot on the motherboard.
37
System Hardware AssemblyVess A6120 Product Manual
