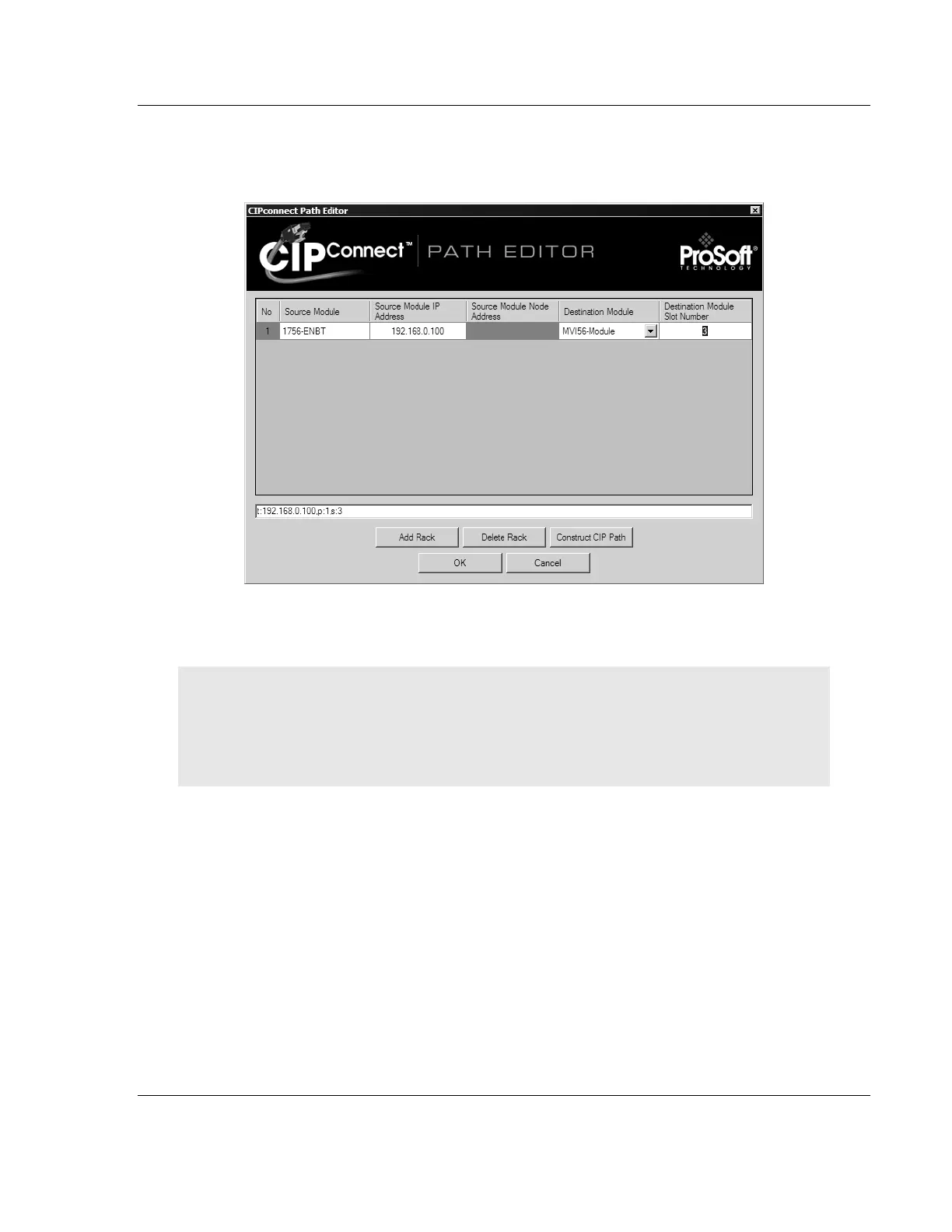

For the following example, the PC will be connected through Ethernet to a
1756-ENBT communication card (IP=192.168.0.100) and the MVI56-
PDPMV1 card is located in slot 3 of the same rack.
For more information, please refer to Using the CIPconnect Path Editor (page
222).
Note: CIPconnect is available for MVI56-PDPMV1 firmware version 1.28.000 (or later) and for
MVI69-PDPMV1 firmware version 1.37.002 (or later). This functionality requires comDTM version
1.0.1.5 with install version 1.01.0003 (or later). For information on how to check the comDTM
version and install version, refer to Verifying the comDTM Version and comDTM Install Version
(page 224).
