7.2.7 ADVANCED CONFIGURATION PAGE.

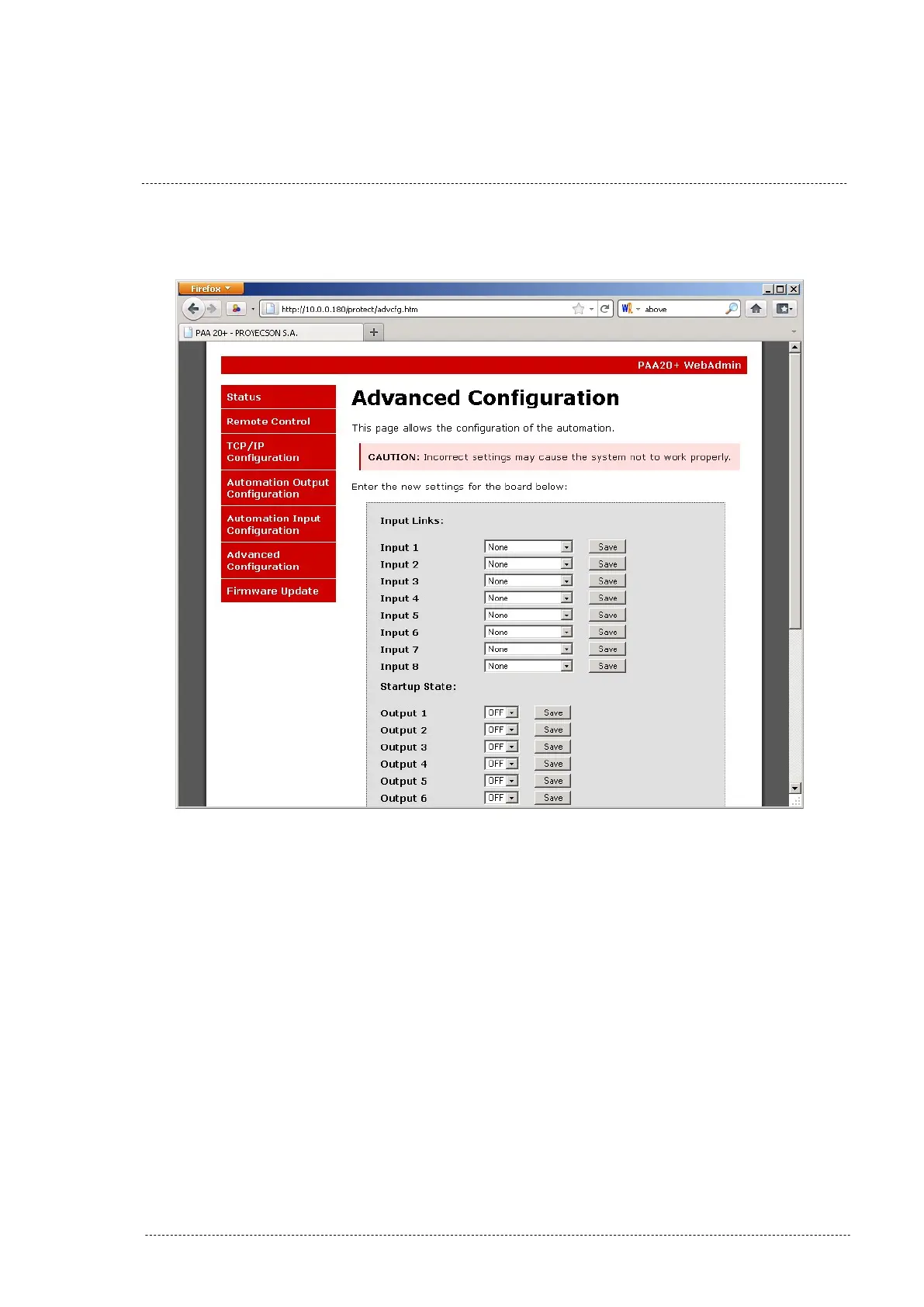

Figure 7.2.7A
Using the Advanced Configuration page it is possible to set some special
features of the PAA20+. Figure 7.2.7A shows a snapshot of the top of this
page. The advanced features in this firmware version are the “Input Link”
and the “Startup State”.
To store the changes proceed as in previous pages.
Input Links: This feature lets you link an input to an output without the
intervention of the server. Using the selection tab in the right side of every
input row, you can choose which of the four upper outputs (from relay 9 to
relay 12) going to be modified.
You may see the options of the selection tab in the Figure 7.2.7B.
INSTALLATION MANUAL: PAA20+ V 2.0 (10/2021) 38
