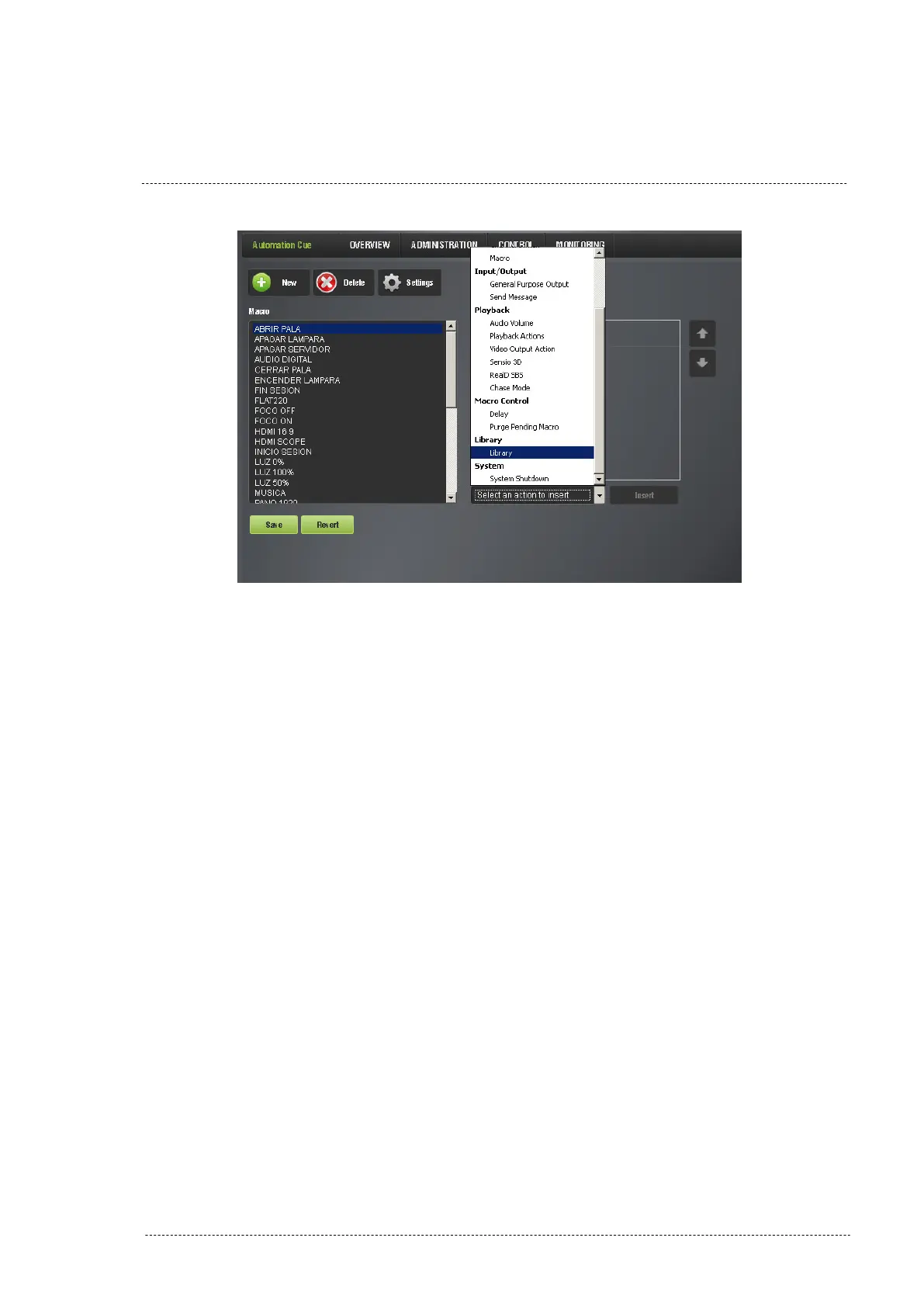

Figure 8.3.3C
6. On the pop-up window select have to select:
• Driver: PAA20V2.
• Action: The action you want to activate on the PAA20+.
• Actions from H1 to H12 activate (High) and maintain active the cor-
responding output.
• Actions from L1 to L12 deactivate (Low) and maintain inactive the
corresponding output.
• Actions from P1 to P12 generate a momentary pulse (500ms) in the
corresponding output.
• Message Label: The text you want.
• Device Name: PAA20+
• Message Type: Text.
• Message: The one corresponding to the Action selected. Do not
modify.
See figure 8.3.3D as an example.
