QUICK CHECK

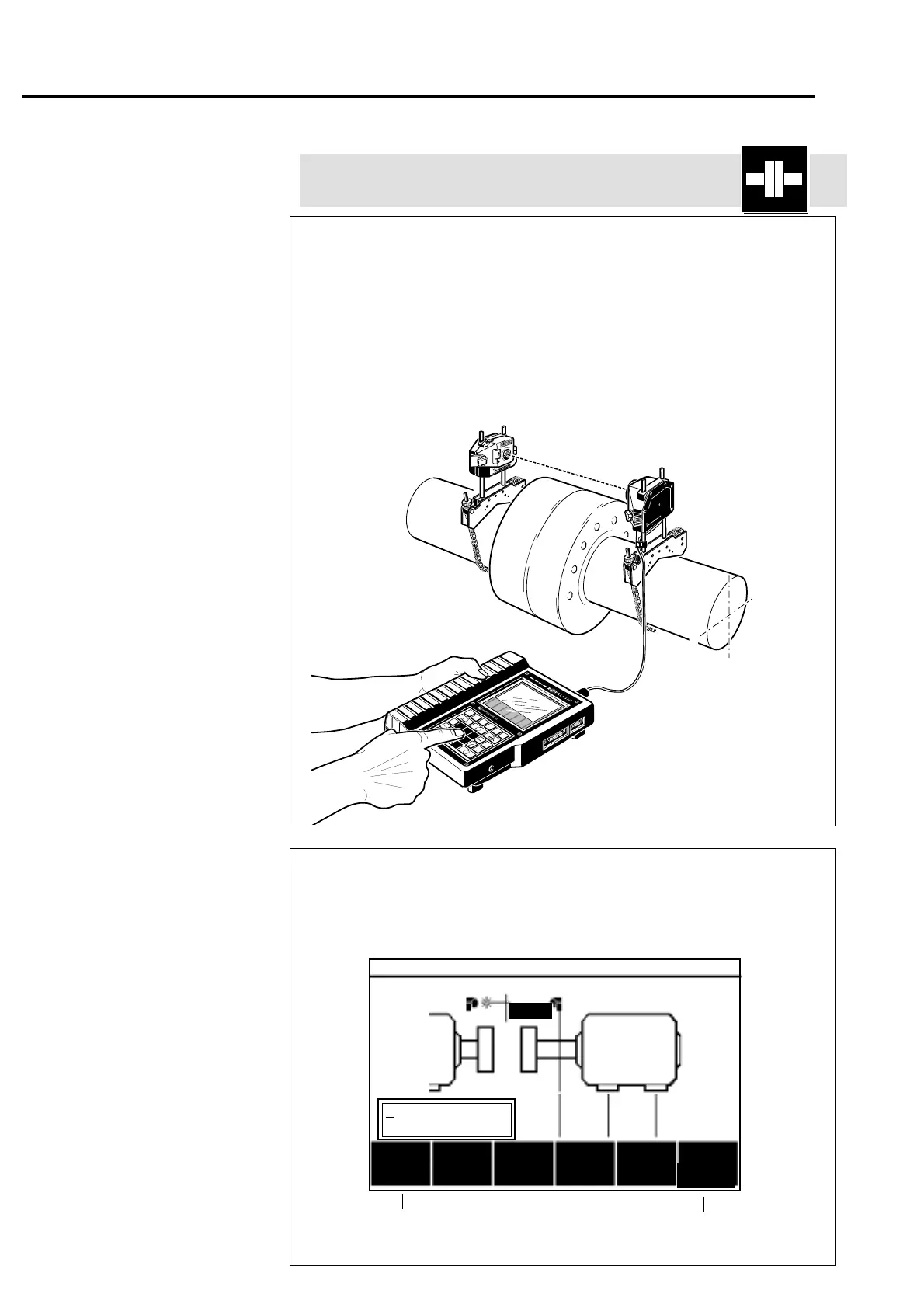

1. Set up ROTALIGN
Prepare the machines for alignment (see page 4-10 for details. In
particular, rigid couplings (e.g. turbines) must be loosened so as not
to exert any force on the shafts.
Mount the laser and receiver on the coupling with the laser on the
left (stationary) machine (page 4-12). Connect the receiver to
ROTALIGN, switch on, and select Q
UICK CHECK.
2. Enter Dimensions
Type in the three dimensions as shown, and press ENTER to confirm
the entry. Errors can be corrected with the CLR key. (See page 4-21
to change mm / inches.)
STATIONARY
MACHINE
MOVEABLE
MACHINE
quick
check
Laser
Receiver
Coupling center to receiver
420 685
320
320
(mm)
NEW
MACH
Clears all
dimensions and
measurements
+
Used with inch fractions
e.g. 44 ¼" entered as
4 4 + 1 / 4 <Enter> (page 4-22)
To Next Page
