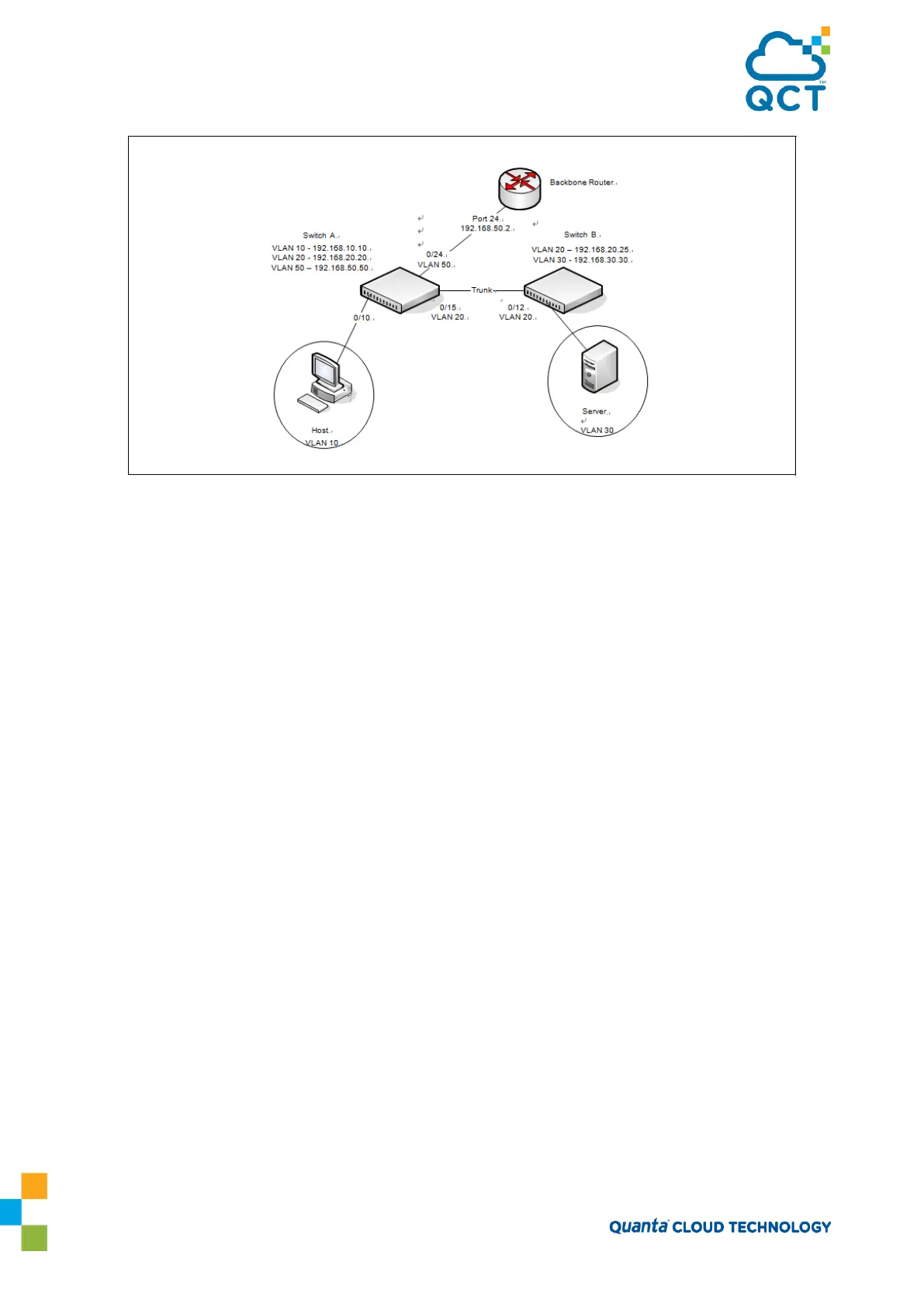

Figure 7-2: IP Routing Example Topology
7.1.2.1. Configuring Switch A
To configure Switch A.
1. Create the VLANs.
(QCT) #configure
(QCT) (Config)#vlan database
(QCT) (Vlan)#vlan 10,20,30,50
2. Configure the VLANs for routing.
(QCT) (Config)#interface vlan 10
Interface vlan 10 created for VLAN ID 10
(QCT) (if-vlan10)#interface vlan 20
Interface vlan 20 created for VLAN ID 20
(QCT) (if-vlan20)#interface vlan 30
Interface vlan 30 created for VLAN ID 30
(QCT) (if-vlan30)#interface vlan 50
Interface vlan 50 created for VLAN ID 50
(QCT) (if-vlan50)#exit
3. Enable routing on the switch.
(QCT) #configure
(QCT) (Config)#ip routing
4. Assign an IP address to VLAN 10. This command also enables IP routing on the VLAN.
