b. Exchange the VPN related route information per VR with PE device using Extended communities
2. The internal Routers in the
Enterprise
networks to provide
isolation
of different
departments/offices
at layer-
3 or routing domain.
This scenario does not mandate that the BGP protocol be running on the device. It can still be run in this
scenario to achieve dynamic route leaking only. The IGP protocol (OSPF or RIP) running in the VR instance
communicates route information with corresponding peers in the same VR on other CE devices or internal
Routers.

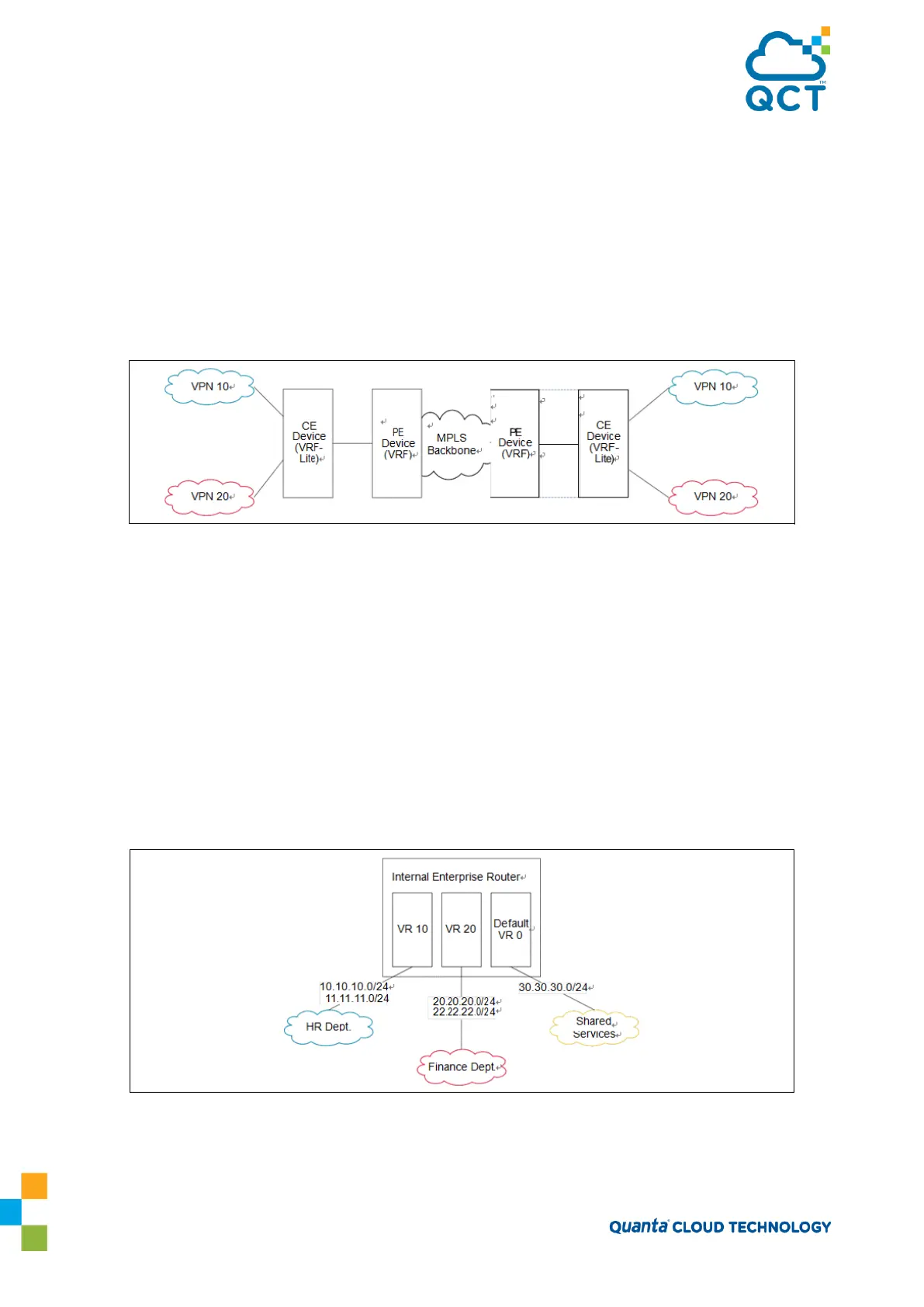

Figure 7-10: VRF Scenarios
The default global routing table is also referred to as VR 0.
In the following example,
subnetworks 10.10.10.0/24
and
11.11.11.0/24
belong to the virtual routing domain
“HR Dept” and subnetworks 20.20.20.0/24 and 22.22.22.0/24 belong to virtual routing domain “Finance
Dept”. Hence, the hosts in networks 10.10.10.0/24 can communicate only with other network 11.11.11.0/24
via the router and the hosts in networks 20.20.20.0/24 can communicate only with other network
22.22.22.0/24 via the router.
If there is a shared service printer @30.30.30.30 in the default global routing domain “Shared Services”, we
would want the HR and
Finance
domains to have access to it.
Therefore,
we statically leak a
30.30.30.0/24
route from global routing table to VR 10 and VR 20. At the same time, we statically leak the routes
10.10.10.0/24 and 11.11.11.0/24 from VR 10 to global table (the same applies to VR 20).
Figure 7-11: VRF routing with shared services
The route tables in both the VRs and the global domain look like the following:
