190
(QCT) (Config)#interface vlan 10
(QCT) (if-vlan10)#ip vrrp 10
5. Specify the IP address that the virtual router function will use.
(QCT) (if-vlan10)#ip vrrp 10 ip 192.168.10.1
6. Assign a virtual router ID to the VLAN routing interface for the second VRRP group.
(QCT) (if-vlan10)#ip vrrp 20
7. Specify the IP address that the virtual router function will use.
The router is the virtual IP address owner of this address, so the priority value is 255 by default.
(QCT) (if-vlan10)#ip vrrp 20 ip 192.168.10.2
8. Enable the VRRP groups on the interface.
(QCT) (if-vlan10)#ip vrrp 10 mode
(QCT) (if-vlan10)#ip vrrp 20 mode
(QCT) (if-vlan10)#exit
(QCT) (Config)#exit
7.3.2.2. VRRP with Route and Interface Tracking

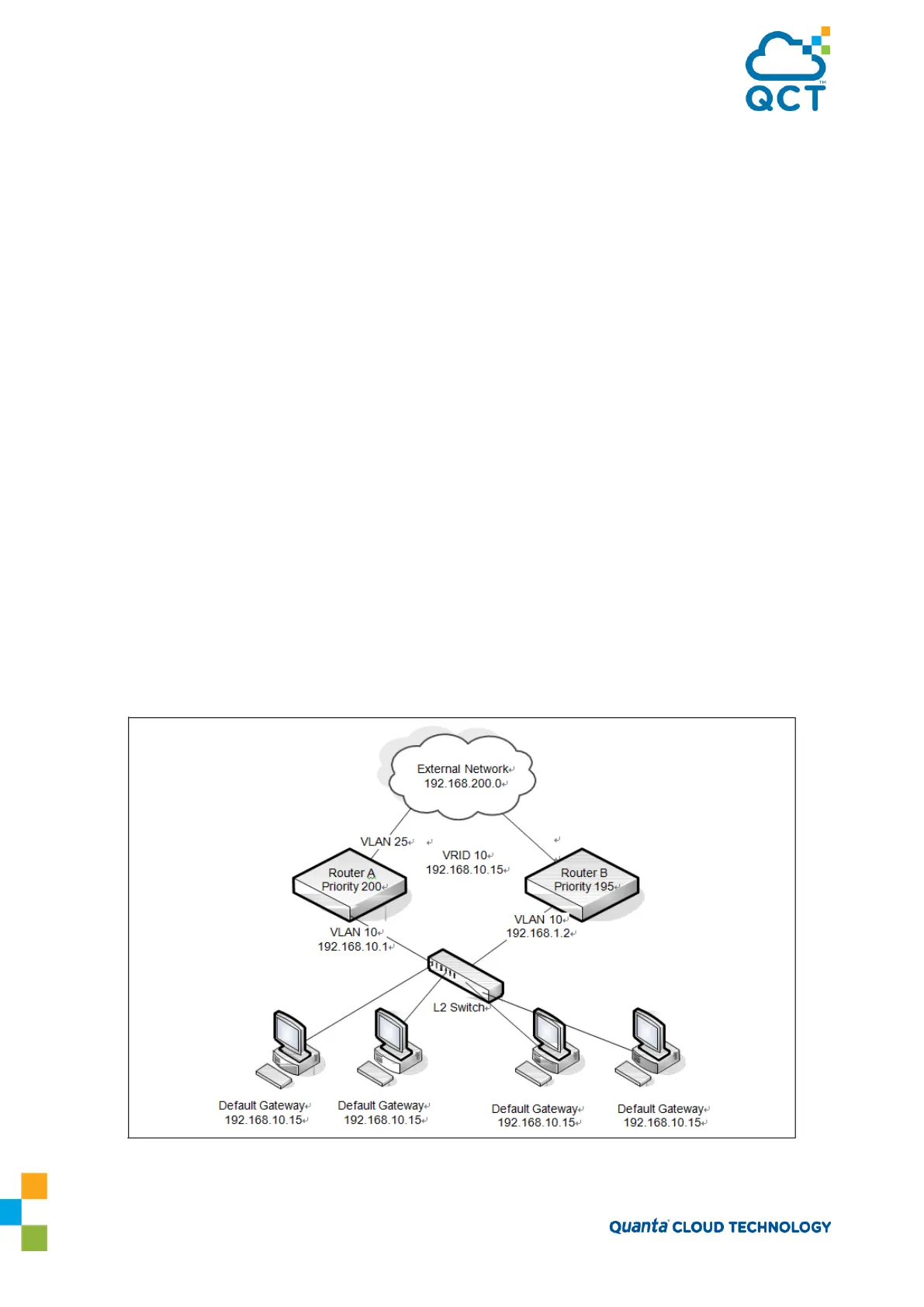

In Figure 29, the VRRP priorities are configured so that Router A is the VRRP master, and Router B is the VRRP
backup. Router A forwards IP traffic from clients to the external network through the VLAN 25 routing
interface. The clients are configured to use the virtual IP address 192.168.10.15 as the default gateway.
Figure 7-6: VRRP with Tracking Network Diagram
