Quanta Cloud Technology QuantaMesh QNOS5 User Manual

60

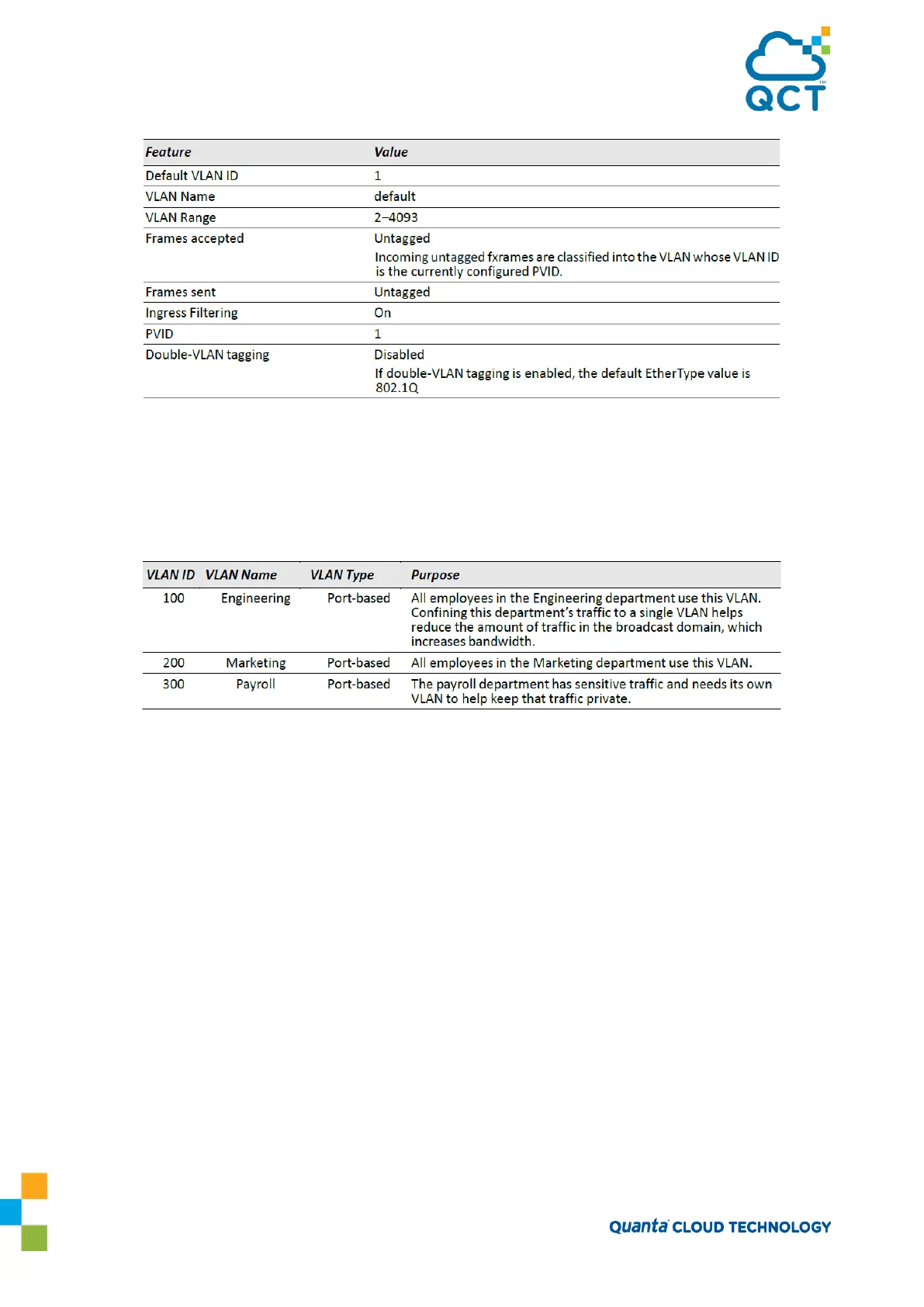

Table 3-1: VLAN default and maximum values
3.1.4. VLAN Configuration Example
A network administrator wants to create the VLANs in Table 2:
Table 3-2: Example VLAN
Figure 3 shows the network topology for this example. As the figure shows, there are two switches, two file
servers, and many hosts. One switch has an uplink port that connects it to a layer 3 device and the rest of the
corporate network.
