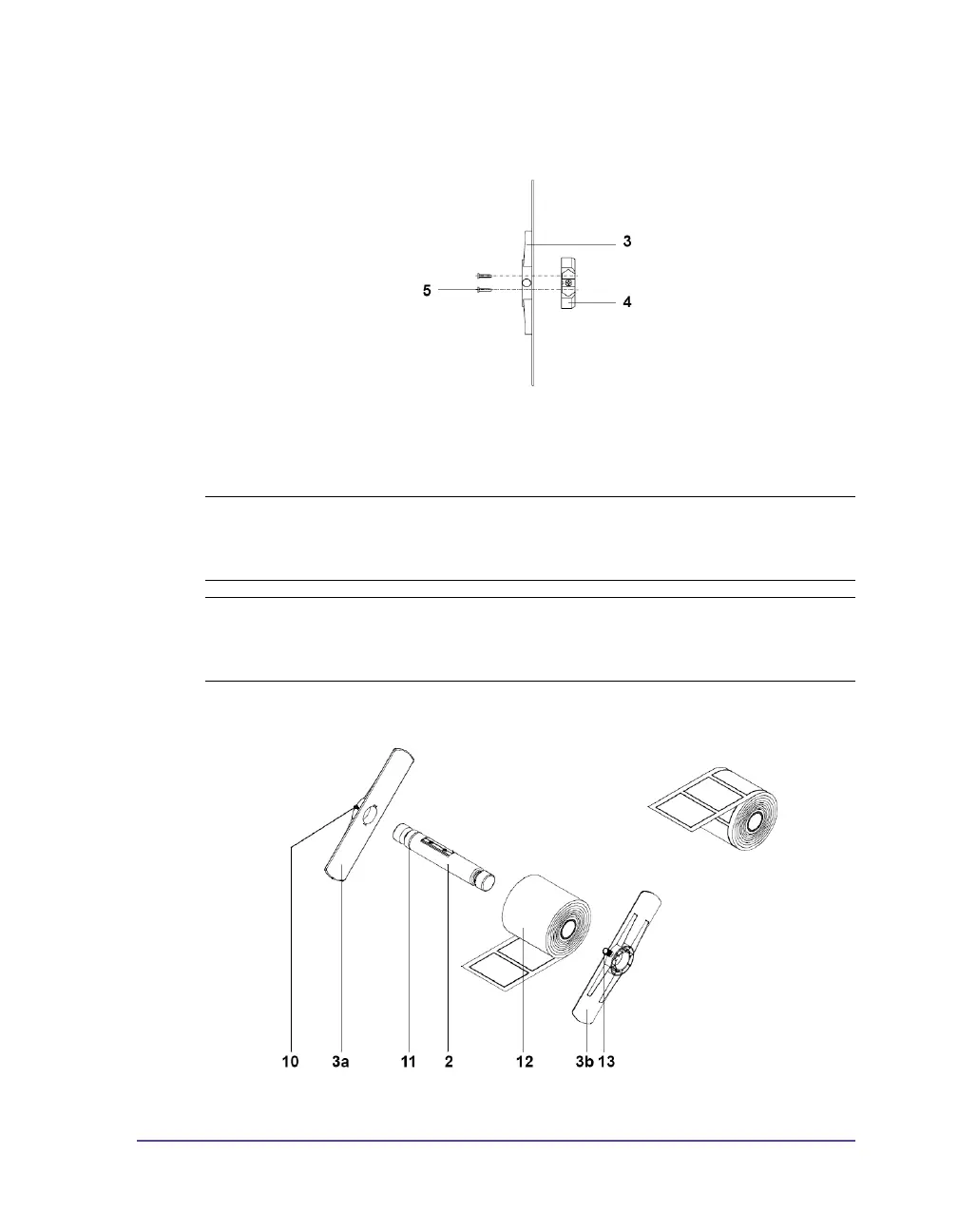

the roll. Fix the winding adapters (4) on the flanges (3) by using the screws (5)
included in the delivery content.
Preparing the flanges
Retaining Rolls with 1.56 in (40 mm) Cardboard Core on the
Winding Axle
Mounting the winding axle
Note: Before mounting the winding axle read this section and Insertion of the
Prepared Winding Axle on page 8-34. Pay attention to the running of the media
in dependence to inside and outside wound label rolls.
Note: For rolls with 1.56 in (40 mm) cardboard core you have to dismount the
winding adapters from the flanges. The spring has to be mounted on the
winding axle (see Preparing the Winding Axle and the Flanges on page 8-30).
