6-4 Loading media
Inserting a label strip into the printhead
1 Turn lever (8) counterclockwise to lift the printhead.
2 Push guide ring on axis (6) all the way out.
3 Guide label strip to the print unit above the internal rewinder (5).
4 Guide label strips below the axis (6) and through the label sensor (7) in
such a way that it exits the print unit between the printhead and the print
roller.
5 Push guide ring on axis (6) against the outer edge of the label strip.

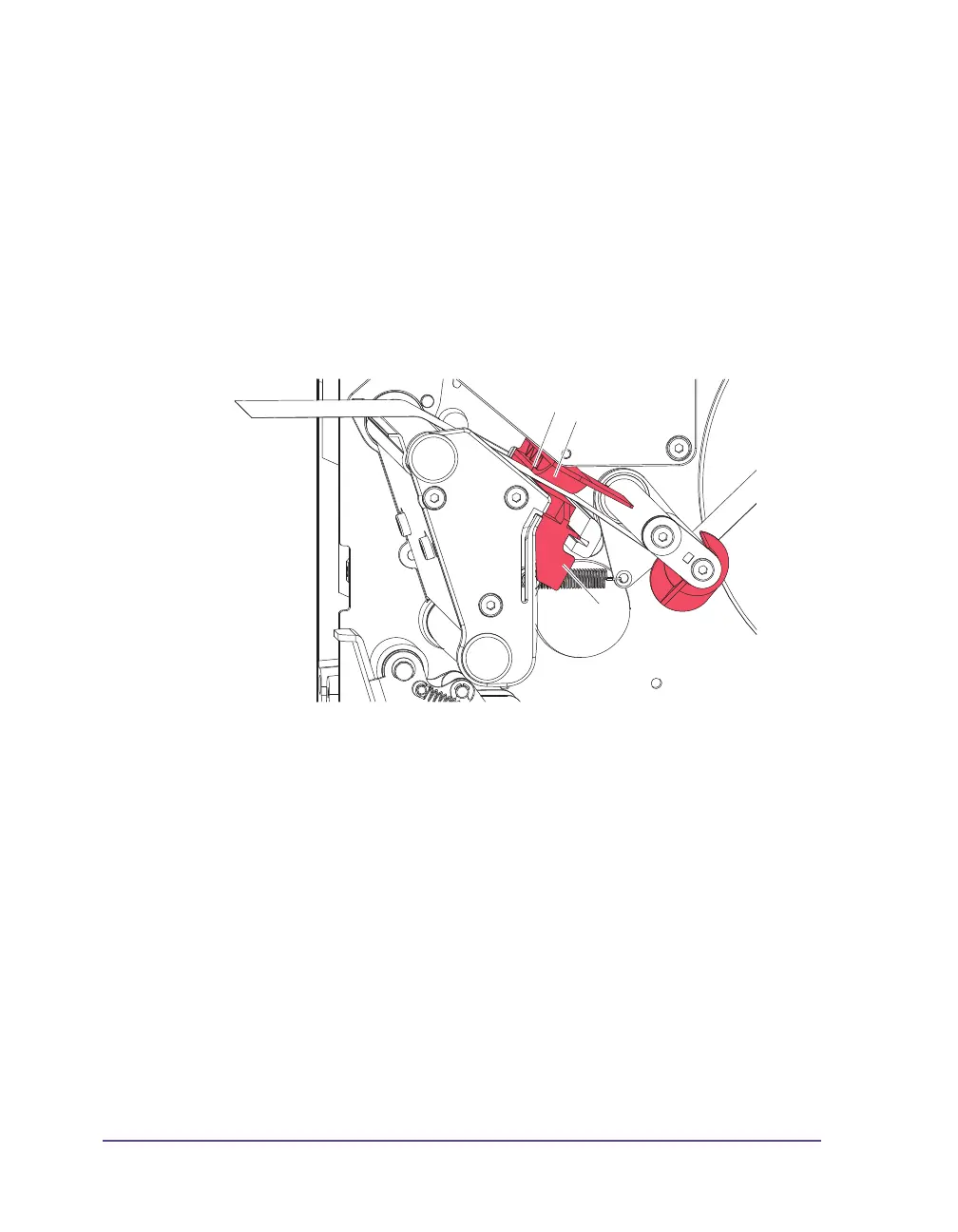

Setting the label sensor
The label sensor (2) can be shifted perpendicular to the direction of paper
flow for adaptation to the label medium. The sensor unit (1) of the label
sensor is visible from the front through the print unit and is marked with a
indentation in the label sensor retainer.
• Position label sensor with tab (3) in such a way that the sensor (1) can
detect the label gap or a reflex or perforation mark.
• If the labels deviate from a rectangular shape, align label sensor using the
tab (3) with the front edge of the label in the direction of paper flow.
