QuickLabel Systems pronto! 486 - Mounting the Cutter Tray

Pronto! 482/486/682/863 9-5

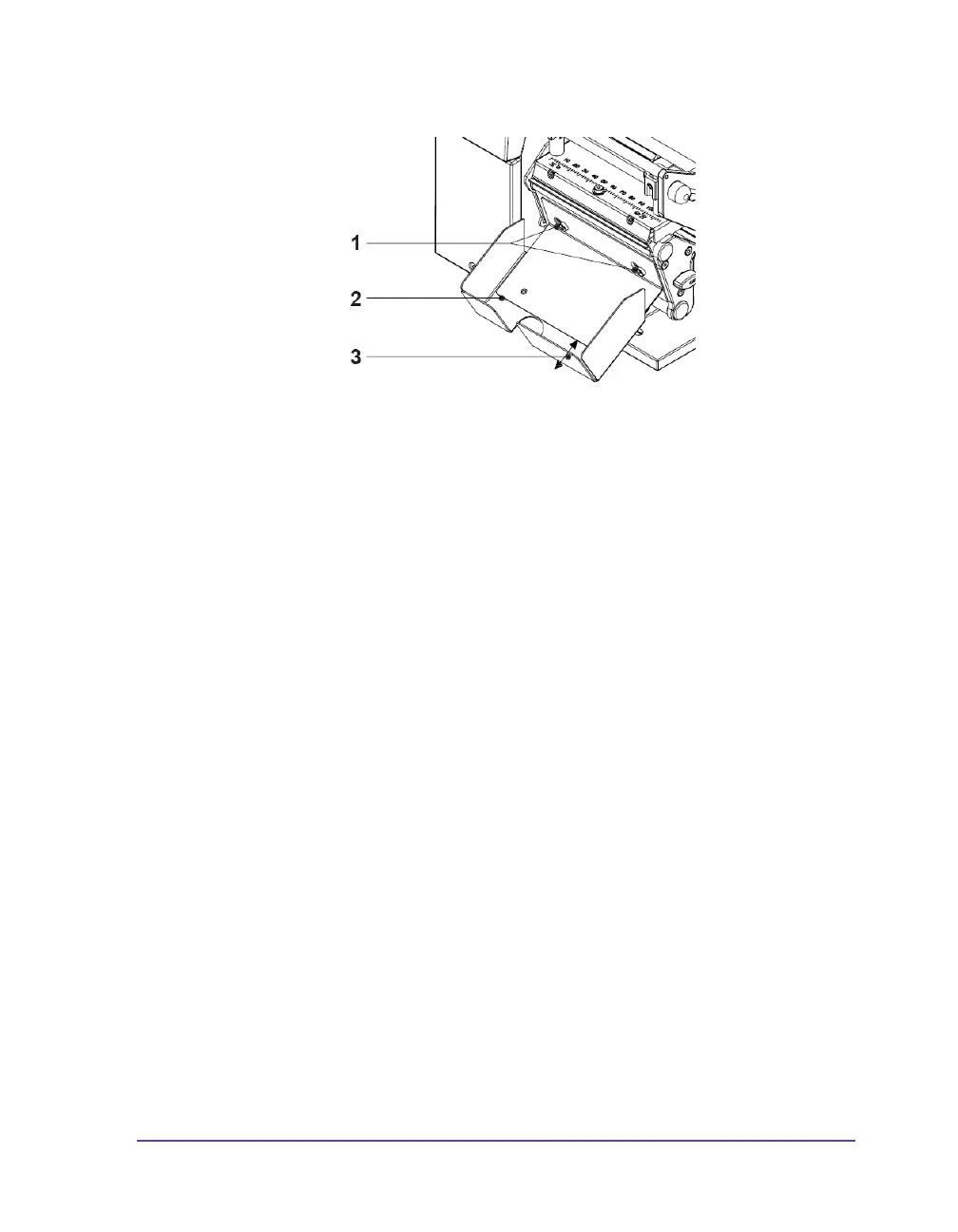

Mounting the Cutter Tray
1 Loosen the screws (1).
2 Place the cutter tray (2) on the screws (1) in front of the tear-off plate or
the dispense plate and slide it to the left until it stops.
3 Tighten the screws (1).
4 The length of the cutter tray (2) may be modified by moving the slide (3).
