8-8 Accessories
Mounting the External Rewinder

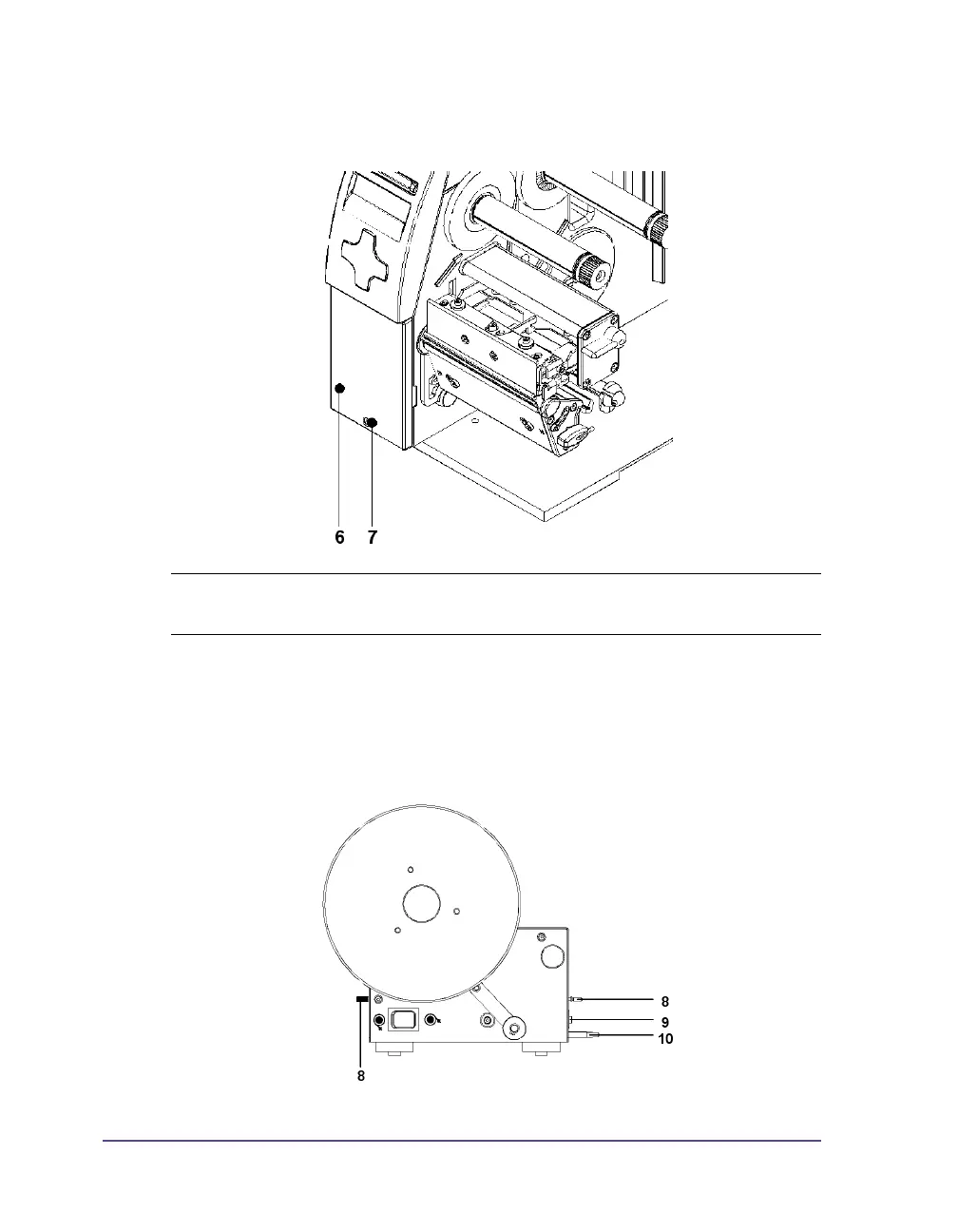

The printer is normally shipped with the front cover (6) mounted. In order to
install the rewinder the front cover has to be removed.
1 Loosen the screw (7).
2 Remove the front cover (6).
The External Rewinder is mounted on the printer so it is not necessary to
adjust the device.
Caution: The printer must be switched off when mounting the rewinder.
Otherwise it can cause damage on printer and rewinder.
