Pronto! 482/486/682/863 5-15

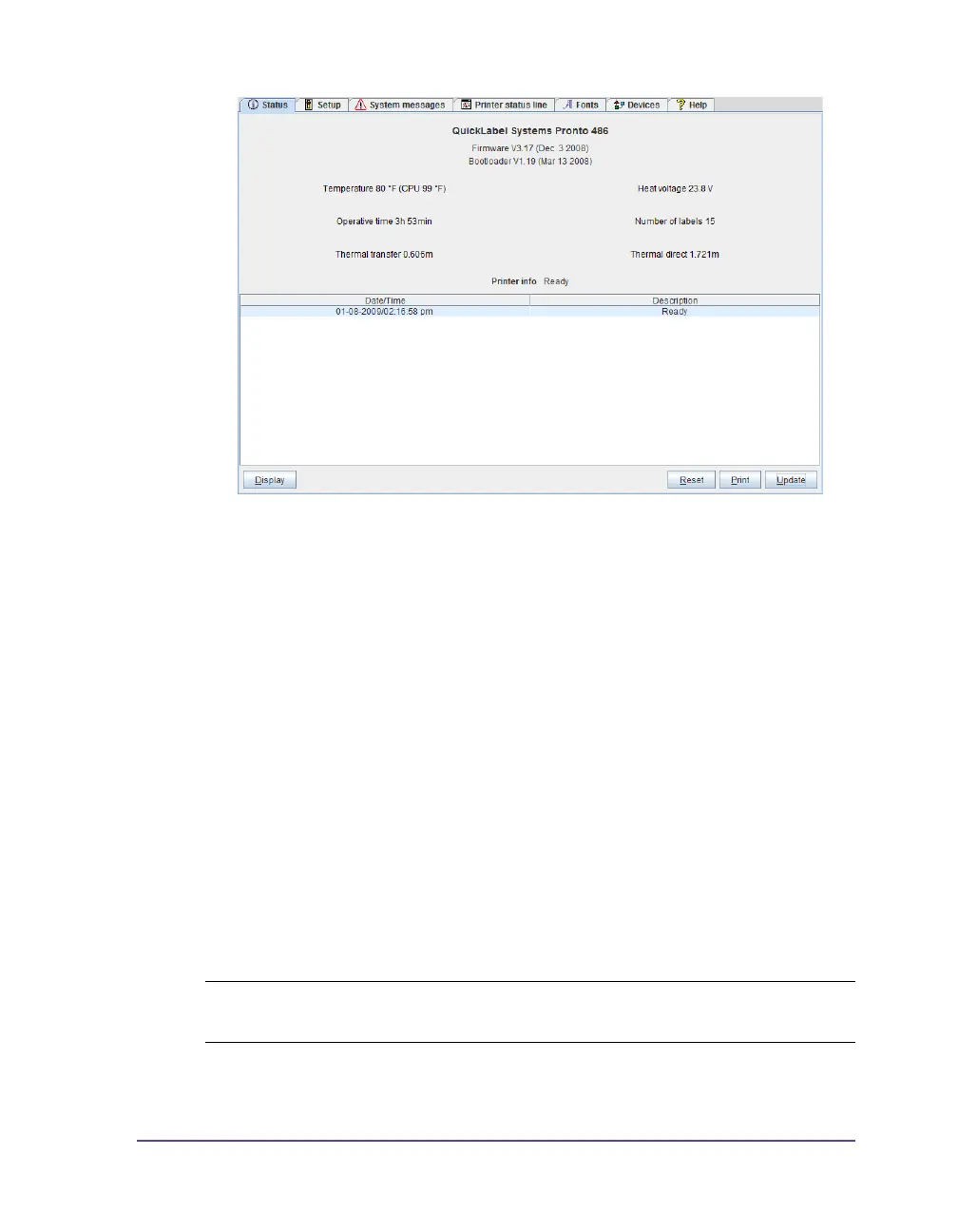

Status tab
The following information is contained in the top section of the "Status" tab:
•Printer type
• Firmware version
• Bootloader version
• Printhead temperature and temperature of CPU
• Heat voltage for the printhead. The heat voltage is only active during
printing. Otherwise, 0.0 V is displayed.
• Operative time of the printer
• Number of labels printed since commissioning
• Previously printed paper length with thermal transfer printing
• Previously printed paper length with thermal direct printing
• Printer status: "Ready", "Printing label", "Settings" or "Error"
A list of the events which have occurred since the printer was switched on are
found in the bottom section of the tab. No more than the last eight events are
displayed.
Note: Information is not updated automatically while the "Status" tab is open.
Updating occurs when the tab is changed or by clicking the Update button.
