10-12 CS4 Cutter/Stacker Accessory
Loading Material
• Load transfer ribbon and endless material as described in Loading media
on page 6-1.
• Use the tear-off mode information for loading endless material for cut
mode. Place the media strip between the printhead and the drive roller,
so that the front edge of the strip reaches through the cutter.
Operation
The printer is ready for operation when all connections have been made and
all materials are loaded correctly.

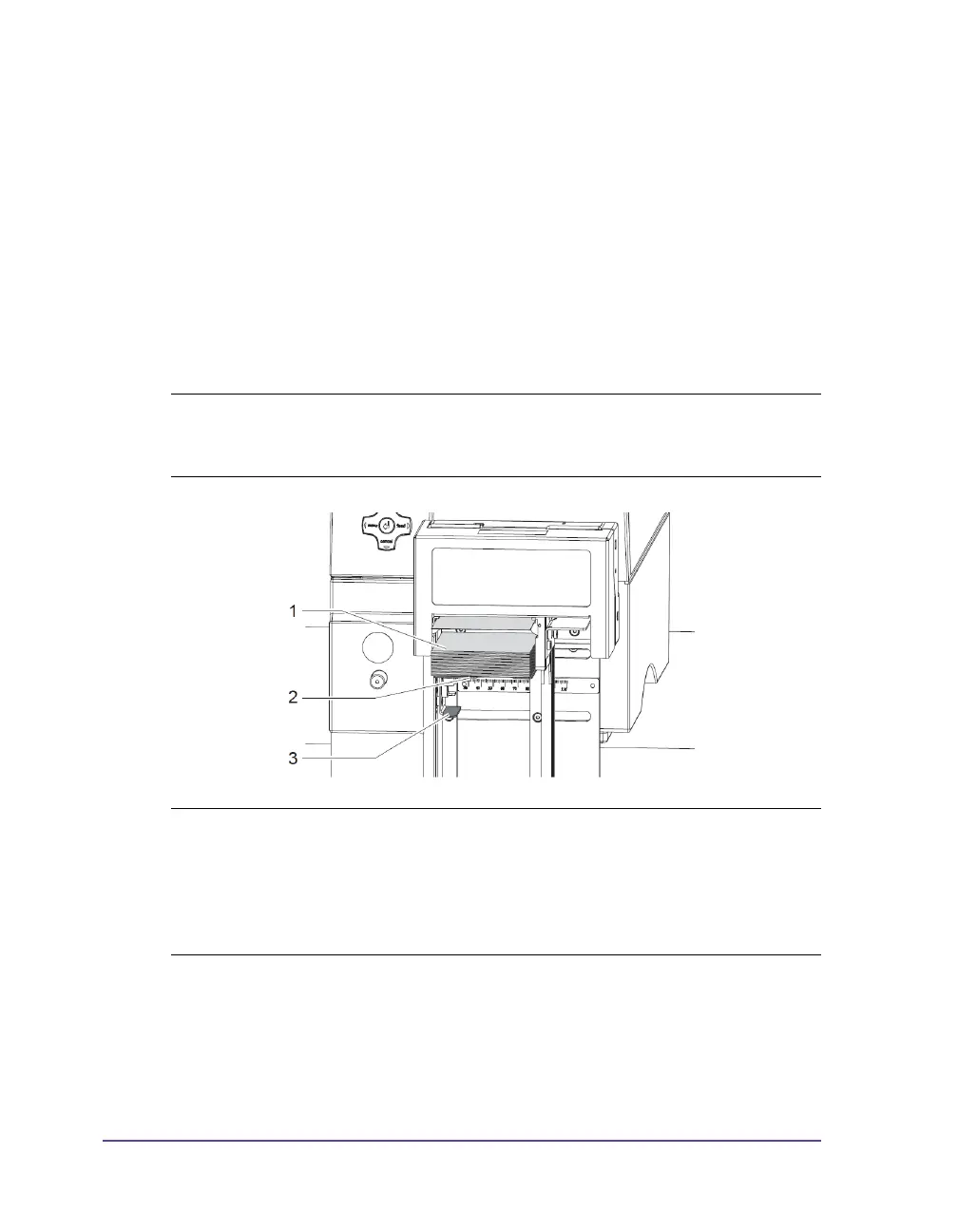

• Move the table (2) upwards using the handle (3) until it stops.
• Switch on the printer.
• The cutter performs a cut.
Note: To operate the cutter with continuous material in the printer, “Endless
media” has to be selected in the Setup > Print parameters > Label sensor
menu. Otherwise no synchronization cut is carried out.
Warning: Operate the stacker only with a table designated for the media to be
used and the matching safety covers. Do not operate the stacker when the
table is lowered manually.
With inappropriate tables and safety covers or with manually lowered table
the reliability and machinery safety cannot be guaranteed.
