10-8 CS4 Cutter/Stacker Accessory

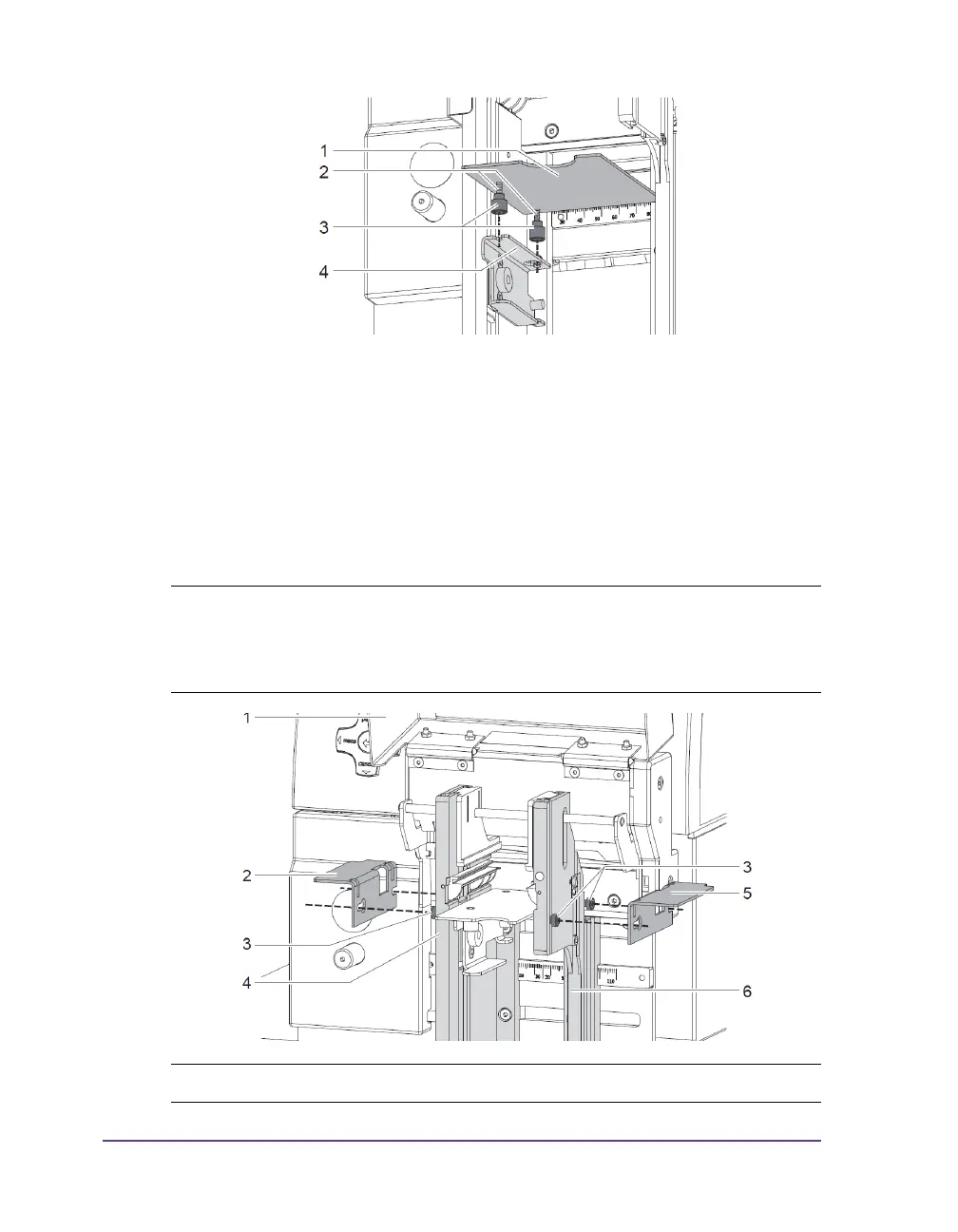

Mounting the Table
1 Loosely screw the knurled nuts (3) contained in the delivery contents of
the table onto the threaded pins (2).
2 Insert the threaded pins of the table (1) into the holes of the retainer (4)
and move the table to the printer until it stops.
3 Tighten the knurled nuts (3).
Mounting the Safety Cover
Warning: Equip the stacker only with safety covers designated for the media
to be used. Mount the safety covers in the correct position. Without safety
covers or with improperly mounted safety covers the reliability and
machinery safety cannot be guaranteed.
Note: Mount safety cover (5) only.
To Next Page
