To Next Page

To Previous Page

-36-

Back to previous level help guide line for selected setting

CleanJet, HACCP, Delta T, E1/2 Store selected setting

Start time, CDS, Descaling, Settings

Selection of core temperature Searing

Notes:

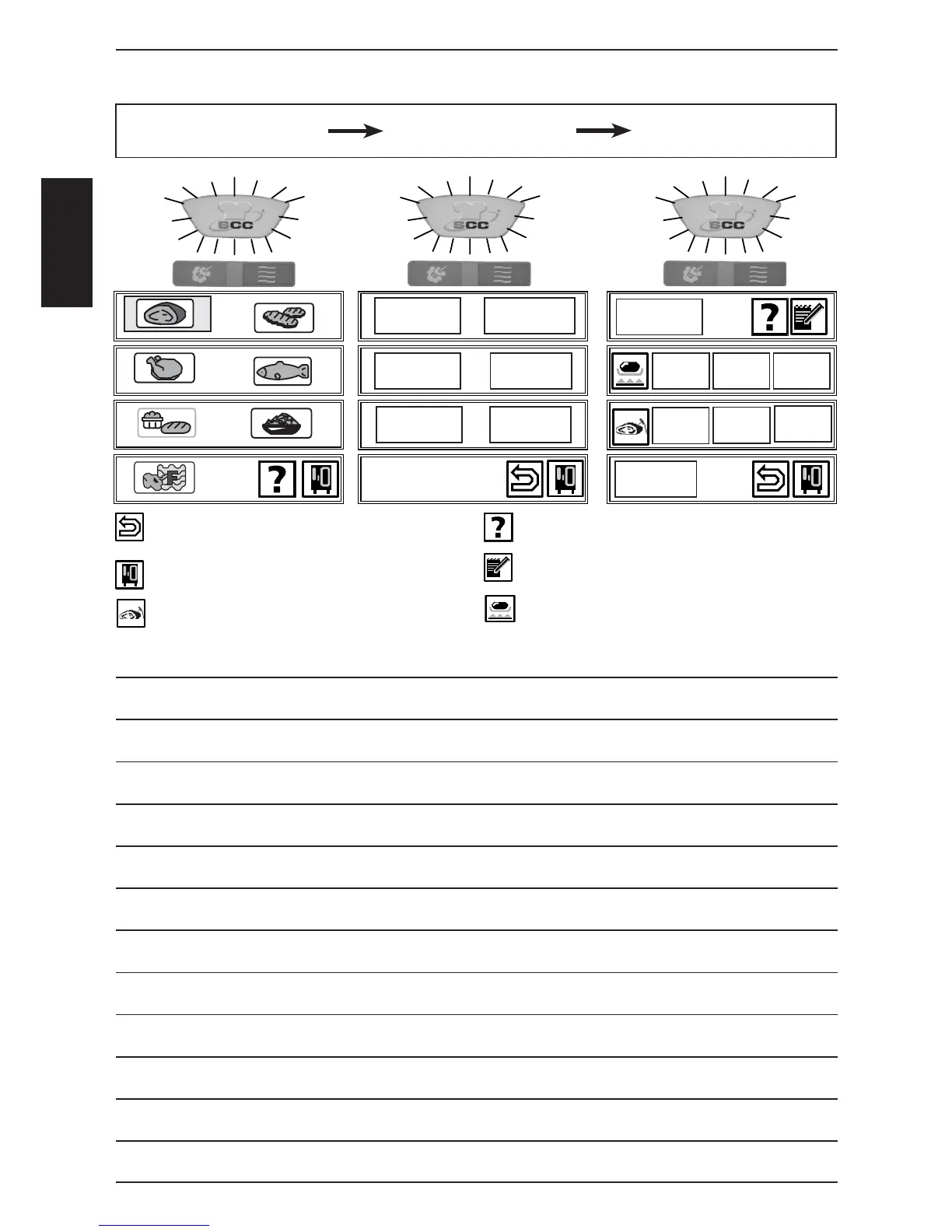

SelfCooking Control

Mode - Level 1

SelfCooking Control

Mode - Level 2

SelfCooking Control

Mode - Level 3

Up to Software version SCC 01-07-12 only!

Universal

roasting

Roasting with

crackling

Soft

roasting

Soft

cooking

Overnight

cooking

Overnight

roasting

Low

Overnight

roasting

rare

well

done

preheat

High

Contents2
Table of Contents3
Overview4
Water Level Control Steam Generator6
Cleaning Program8
Empty Steam Generator8
Select Descaling Program8
Changing Temperature Display from °C to °F9
CM PCB (42.00.047) from 02-2006 (Without Transformer)10
LED Code Fan Motor SCC and CM from 04/200411
Motor for CM 40.00.27411
Service Level CM from 04 - 200417
Function Test17
Service Level: Dp -- Diagnostic Program18
Service Level: Rt -- Running Time19
Service Level: SE -- Basic Settings20
Service Level: F -- Function Test22
Service Level: er -- Error Code History24
Failure Codes CM from 04-200425
CM Gas from 04 - 200426
Gas Valve Components27
Identiﬁcation of the Different Gas Burners/Gas Blowers27
Ignition Box of Hot Air Blower, Bottom (201-202)27
Basic Info about CM Gas from 04-200427
Sequence of Events of Steam / Hot Air Burner (SCC as Well as CM)28
Check Gas Type / Gas Conversion: CM Gas from 04-200429
Changing Installation Altitude: CM Gas from 04-200430
Flue Gas Analysis: CM Gas from 04-200431
Values for Burner Adjustments of Gas Units SCC / CM33
Changing Gas Blower Speed (MAX, Start, MIN Rpm): CM Gas from 04-200434
SCC Control Panel35
SCC Electric from 04-200442
SCC Operator Pcb (42.00.002)44
Measuring Points I/O PCB SCC (40.00.049)45
Motor for SCC / CM46
SCC Units: Sequence of Events48
Service Level SCC54
SCC Diagnostic Mode Overview56
SCC Diagnostic Mode57
SCC Diagnostic Mode58
SCC Running Times Overview60
SCC Running Times61
- SCC Running Times62
- Overview Basic Settings64
- SCC Basic Settings (Switch off - on after Adjustment)65
SCC Basic Settings66
- Overview Function Test68
- Overview Service Messages72
- Service Messages SCC73
- Calibration SCC76
- Control Drain Valve 54.00.35778
- SCC Gas from 04-200480
- Basic Info about SCC Gas from 04-200482
- Check Gas Type - Gas Conversion: SCC Gas from 04 - 200484
- Adjustment of Installation Altitude above Sea Level SCC Gas from 04 - 200485
- Flue Gas Analysis: SCC Gas from 04-200486
- Changing Gas Blower Speed (MAX, Start, MIN Rpm) SCC Gas from 04 - 200489
- Flash SCC Software90
- Changing SCC Pcb / Changing SCC EEPROM / Software Update92
- Software Update CM Units with Flash-Box 87.00.03794
- Copying Unit Software from PC to CM Flash-Box95
- Fault Tree: Changing Pcb / Changing EEPROM / Fault "E1"96
- How to Update CM Units Via PC97
- User Instruction Electrical Descaler Pump98
- Descaling Interrupt SCC/CM99
- Rational Installation/Commissioning Checklist SCC/CM100
- Perimeter Clearances101
- Drain Connection101
- Levelling and Floor Fixing101
- Electrical Connection – Observe Local and National Codes102
Water Info108
- SCC Fault List - Troubleshooting110
- No Function - Safety Chain116
- No or to Low Steam Production117
- "RESET" Indication (Gas Units)119
- Indication Descaling/Service 12120
- Buzzer Sounds121
- No Function - Safety Circuit122
- No Steam123
- Indication "E13" (SC-Automatic)126
- Indication "Res" (= Reset)127
- Chng POL (Check Polarity)127
- Bill of Material139
- SCC Service Reference184
