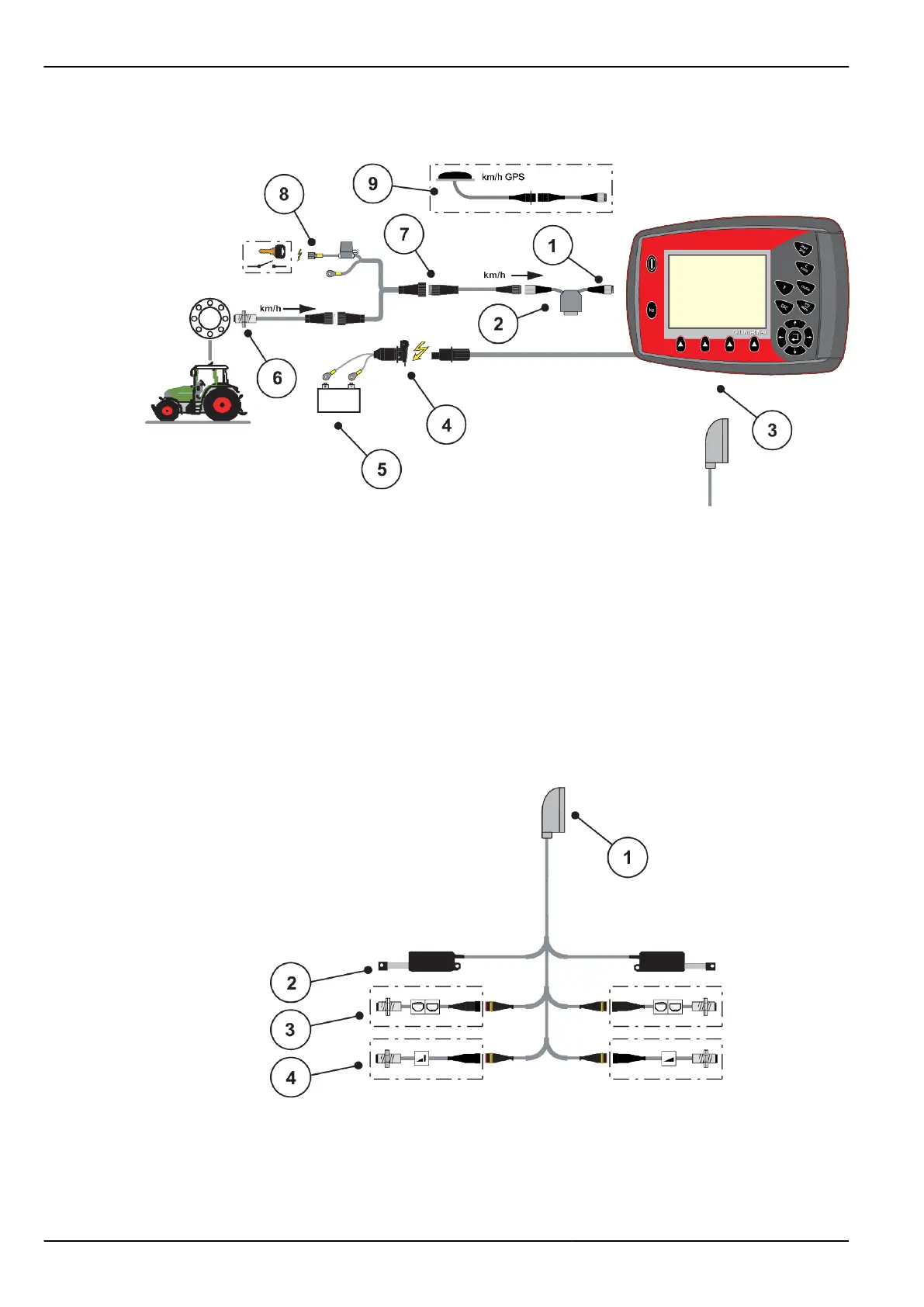

Rauch QUANTRON - Overwiew of Connections to Machine

power supply via ignition lock
[1] Serial interface RS232, 8-pin plug connector
[2] Option: Y-cable (V24 RS232 interface for
storage medium)
[3] Connection for 39-pin machine plug (rear)
[4] 3-pin plug connector conforming to
DIN 9680/ISO 12369
[5] Battery
[6] Forward speed sensor
[7] 7-pin plug connector conforming to
DIN 9684
[8] Option: QUANTRON-A electricity supply via
ignition switch
[9] Option: GPS cable and receiver
3.3.2 Overwiew of connections to machine
MDS
Fig. 11: Schematic connection diagram of QUANTRON-A – MDS
[1] 39-pin machine plug
[2] Metering slide actuator, left/right
[3] Option (level sensor, left/right)
[4] Option (TELIMAT sensor, top/bottom)
3. Attachment and installation
28
5902662 QUANTRON-A AXIS/MDS
