Fertliser settings in Easy-Mode
The Mode setting is described under
4.10.3 Setting the mode
.
In this menu, the fertilizer and spreading settings can be changed.
u
Access the menu Main menu > Fertiliser settings.
In the
M EMC
function, the mode is automatically set to expert.

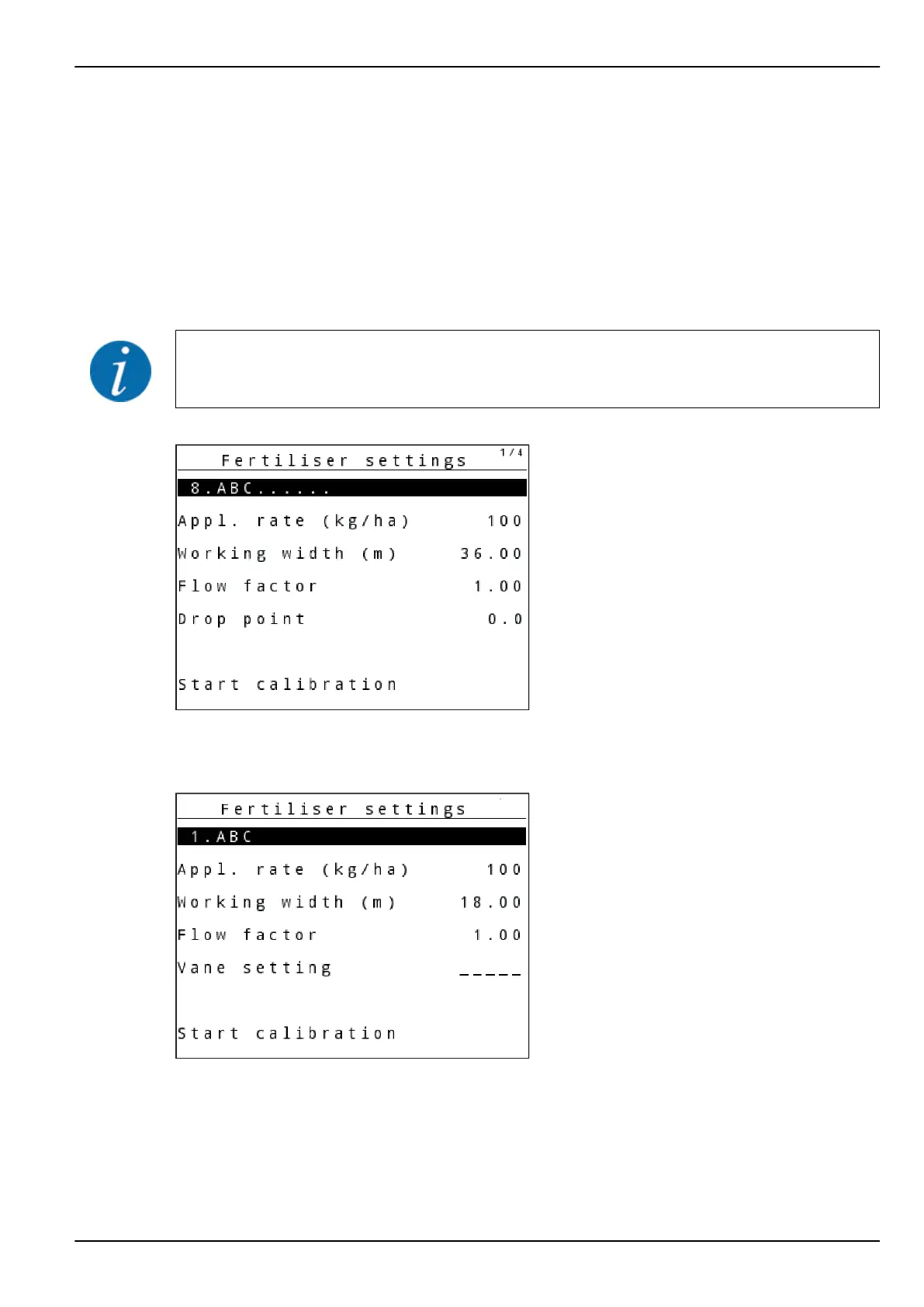

Fig. 21: Fertiliser settings menu for AXIS, Easy mode
Fig. 22: Fertiliser settings menu for MDS, Easy mode
4. Operation
QUANTRON-A AXIS/MDS
5902662
41
40
42
Table of Contents
Default Chapter
3
Table of Contents
3
1 User Instructions
6
About this Operator's Manual
6
Meaning of Warnings
6
Notes on Text Descriptions
7
Instructions and Procedures
7
Lists
7
Menu Hierarchy, Keys and Navigation
7
2 Layout and Function
9
Overview of Supported Machines
9
Layout of the Control Unit
11
Control Elements
12
Display
14
Description of the Operating Screen
14
Display of the Metering Slide Status
17
Display of Sections
18
Library of Icons Used
19
Operating Screen Icons
19
Structural Menu Overview
20
WIFI Module
23
3 Attachment and Installation
24
Tractor Requirements
24
Connections, Sockets
24
Power Supply
24
Forward Speed Signal
25
Connect Control Unit
25
Overview of Connections to Tractor
26
Overwiew of Connections to Machine
28
Metering Slide Preparation
32
4 Operation
33
Switching on the Machine Control Unit
33
Navigation Within the Menus
34
Weighing/Trip Counter
36
Trip Counter
36
Display Rest Quantity
37
Zero Scales
39
Main Menu
40
Fertliser Settings in Easy-Mode
41
Fertiliser Settings in Expert-Mode
42
Application Rate
45
Setting the Working Width
46
Flow Factor
46
Drop Point
48
Calibration
49
PTO Speed
52
Disc Type
53
Boundary Spreading Quantity
53
Calculate Optipoint
54
GPS Control Info
55
Fertilizer Charts
55
Calculate Varispread
57
Machine Settings
58
Forward Speed Calibration
59
AUTO/MAN Mode
62
Quantity
66
Signal Idle Measurement
66
Easy Toggle
66
Fast Emptying
67
Field Data
69
Selecting a Field Data File
69
Start the Recording
70
Stopping the Recording
72
Deleting Field Data
72
System/Test
73
Setting the Language
74
Display Configuration
75
Setting the Mode
76
Test/Diagnosis
77
Data Transmission
80
Total Data Counter
81
Service
81
Changing the System of Units
81
Info
82
Operating Lights (Spreadlight)
82
Hopper Cover
84
Special Functions
85
Entering Text
85
Entering Values
87
Creating Screenshots
88
5 Spreading Operation
90
TELIMAT Border Spreading Unit
90
GSE Sensor
91
Working with Sections
91
Spreading with Reduced Sections
91
Spreading Operation with One Section and in Boundary Spreading Mode
92
Spreading with the Automatic Operating Mode (AUTO Km/H + AUTO Kg)
94
Spreading with the AUTO Km/H Operating Mode
96
Spreading with the man Km/H Operating Mode
97
Spreading in the man Scale Operating Mode
97
GPS Control
98
6 Alarm Messages and Possible Causes
102
Meaning of the Alarm Messages
102
Fault/Alarm
106
7 Special Equipment
107
8 Guarantee and Warranty
109
