Access the menu System/T
est > Test/diagnosis
u
Select the Sensor brd.spread menu item.
u
Press the Enter key.
The status of the actuators/sensors is displayed.

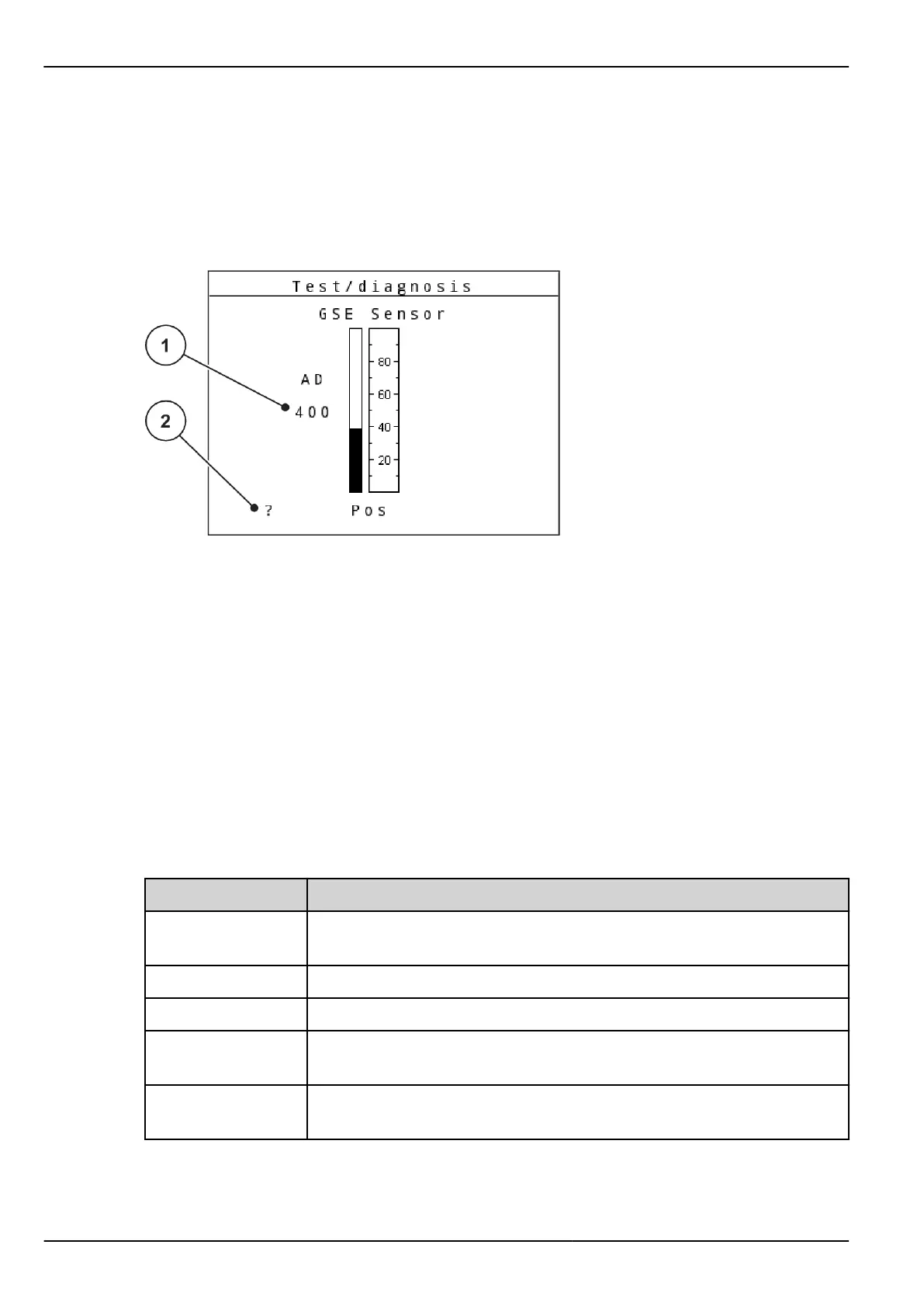

Fig. 44: Test/diagnosis; example: GSE sensor
[1] Status display [2] Sensor position display
Sensor position display
The sensors report the position of the border spreading unit:
• O = Up; the border spreading unit is inactive.
• U
= Down; the border spreading unit is in working position.
• ? = the border spreading unit has not yet reached its end position.
4.10.5 Data transmission
Data transmission is carried out using various data protocols.
Sub-menu Meaning
ASD Automatic field documentation; transmission of field data to a PDA and/or
Pocket PC via Bluetooth
LH5000 Serial communication, e.g., spreading using application maps
GPS Control Protocol for automatic section control using an external terminal
GPS Control VRA VRA: V
ariable Rate Application
Protocol for the automatic transmission of the target application rate
TUVR Protocol for automatic section control and application rate change for specific
sub-areas with an external Trimble terminal
4. Operation
80
5902662 QUANTRON-A AXIS/MDS
