u
Press the Reduce left spreading width function key or the Reduce right spreading width
function key.
The section of the spreading side will be reduced by one step.
u
Press the Increase left spreading width function key or the Increase right spreading width
function key.
The section of the spreading side will be increased by one step.
The sections are not graded proportionally. The spreading width can be set via the VariSpread
spreading width assistant.
• See 4.6.12 Calculate VariSpread
5.3.2 Spreading operation with one section and in boundary spreading mode
AXIS-M V8, MDS V8
During spreading operation, the sections can be changed gradually and border spreading can be
activated. The figure below shows the operating screen with boundary spreading activated and a
section activated.

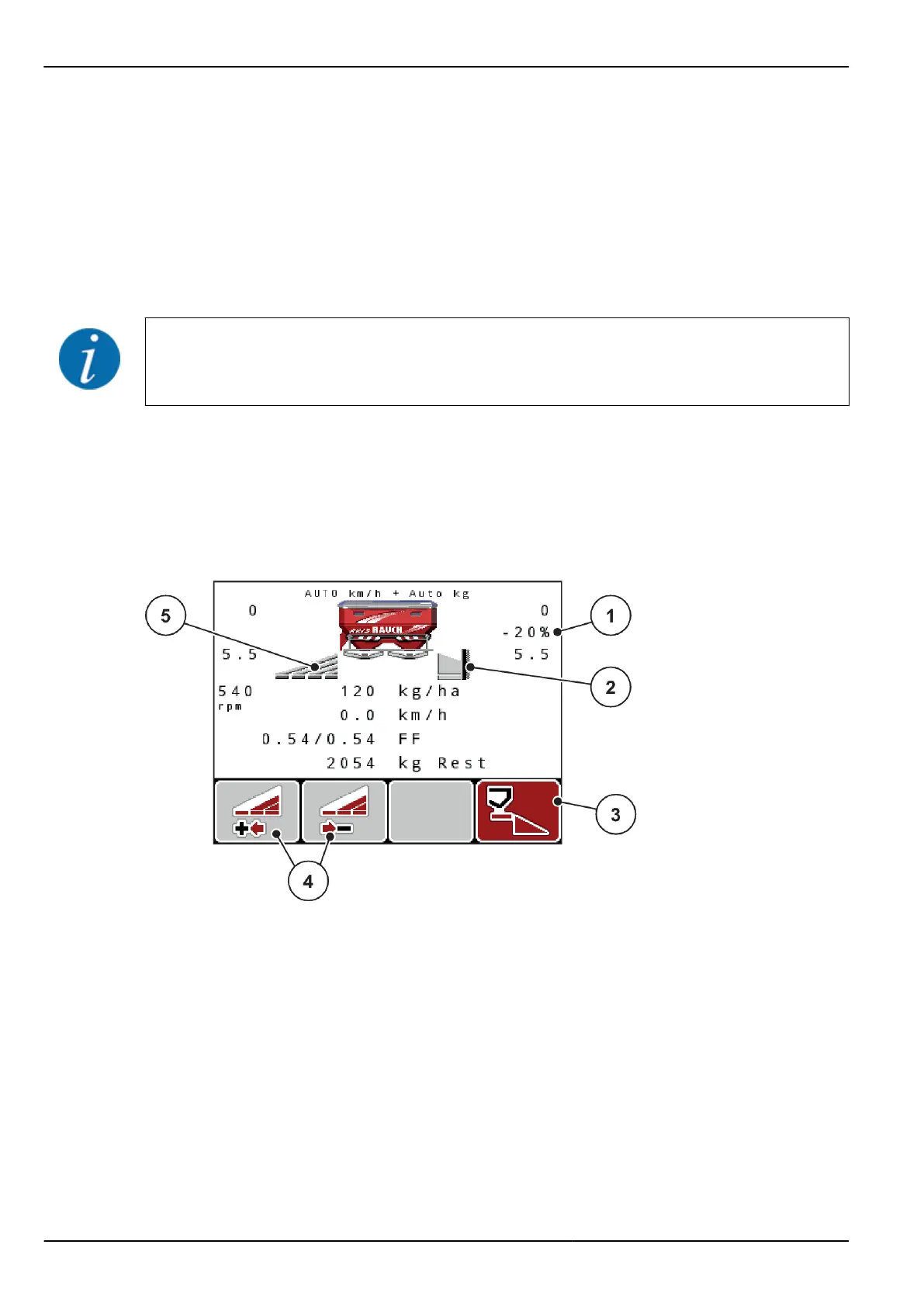

Fig. 51: Operating screen with one section on the left, boundary spreading on the right
[1] Display of application rate change in
boundary spreading mode
[2] The right spreading side is in boundary
spreading mode.
[3] The right spreading side is activated.
[4] Reduce or increase left section
[5] Left section adjustable in 4 steps
(VariSpread 8)
5. Spreading operation
92
5902662 QUANTRON-A AXIS/MDS
