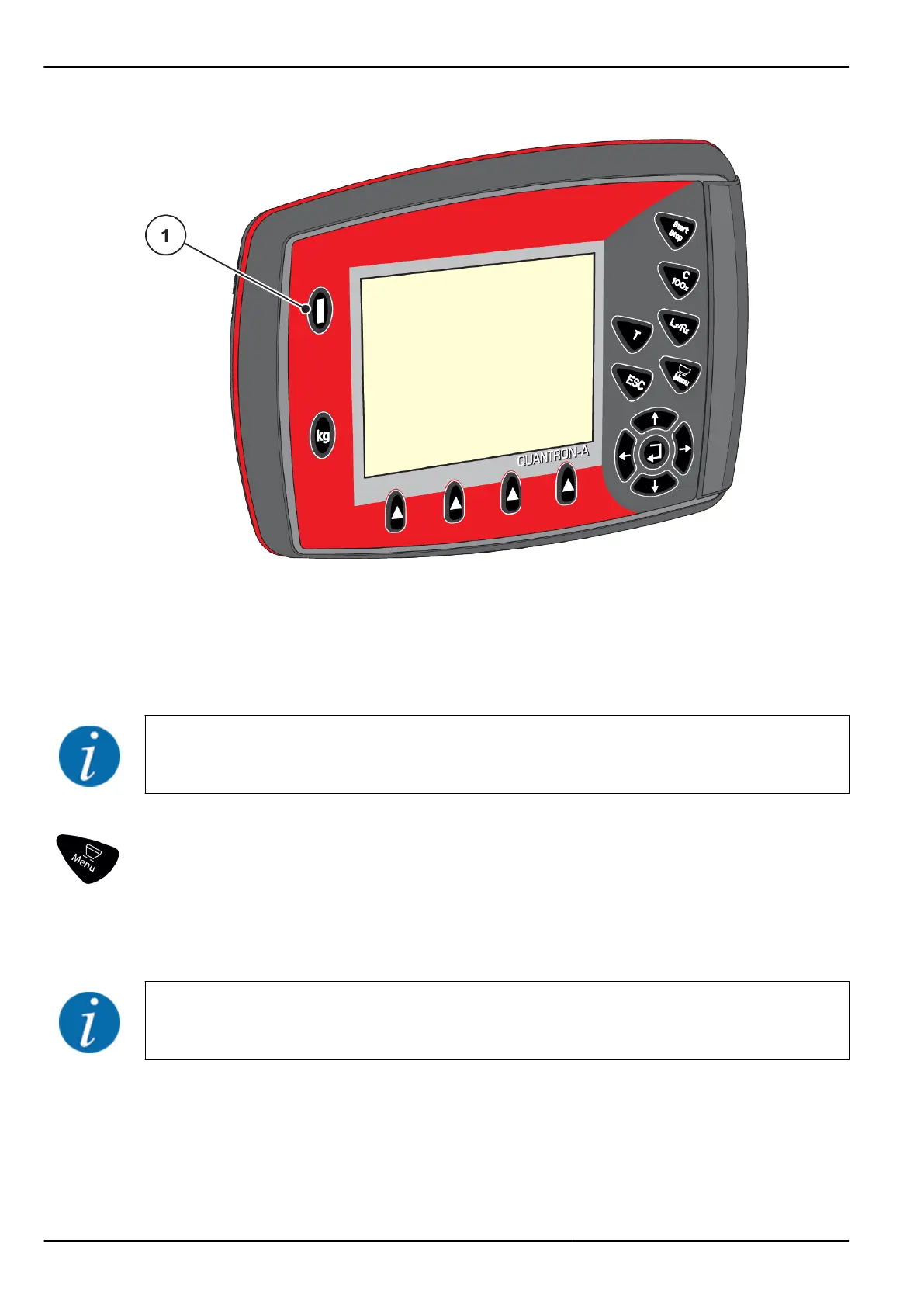

Fig. 16: Switching on the control unit
[1] ON/OFF switch
4.2 Navigation within the menus
Please refer to section 1.3.3 Menu hierarchy, keys and navigation for important notes regarding
the display and navigation between menus.
Accessing the main menu
u
Press the Menu key. See 2.3 Control elements
The main menu is displayed.
The black bar indicates the first sub-menu.
Not all parameters are displayed simultaneously in one menu window. The arrow keys enable
switching to the next or previous windows.
4. Operation
34
