Rauch QUANTRON User Manual

u
Press Start/Stop.
The alarm is acknowledged.
The electrical actuators move to the preset value.
u
Press the ESC key to return to the main menu.
4.9 Field data
In this menu, you can create and manage up to 200 field data files.
u
Access the menu Main menu > Field data.

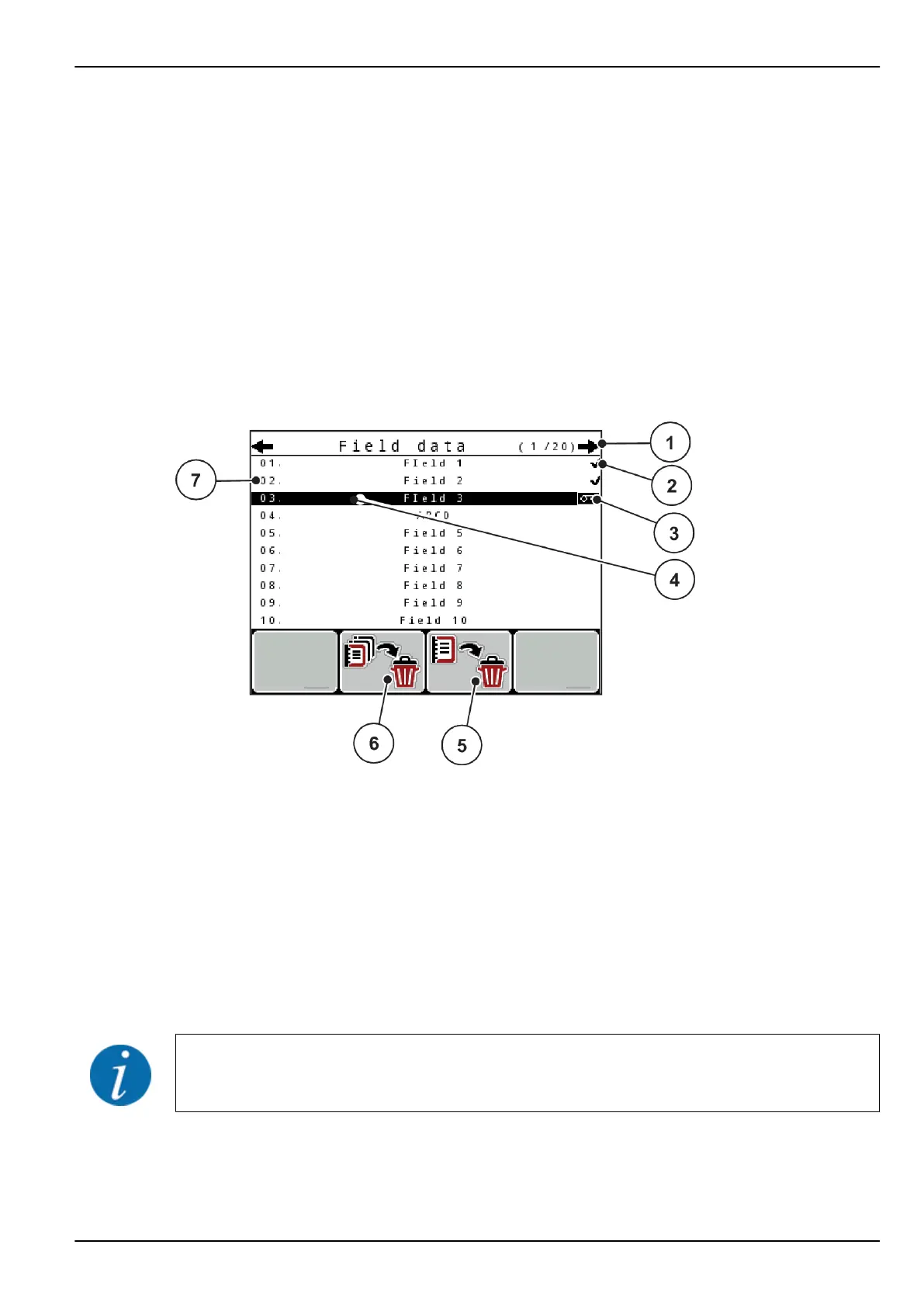

Fig. 36: Menu Field data
[1] Display of page number
[2] Display of filled field data
[3] Display of active field data
[4] Name of field data
[5] F3 function key: Delete field data
[6] F2 function key: Delete all field data
[7] Display of memory location
4.9.1 Selecting a field data file
Already saved field data files can be selected and processed again. The data already saved in the
field data is not overwritten; instead the new values are added.
Press the left/right arrow keys to browse forward and back through the pages in the Field data
Field data menu.
4. Operation
QUANTRON-A AXIS/MDS 5902662
69
