• The application rate on the left is set to the full working width.
• The right boundary spreading function key has been pressed, boundary spreading is active, and
the application rate is reduced by 20 %.
• Press the Reduce left spreading width function key in order to reduce the section by one step.
• If you press the C/100% function key, the full working width will be reapplied immediately.
• Only for TELIMAT versions without sensor: If you press the T key, boundary spreading is
deactivated.
AXIS-M VariSpread pro
During spreading operation, the sections can be changed gradually and boundary spreading can be
activated. The figure below shows the operating screen with boundary spreading activated and a
section activated.

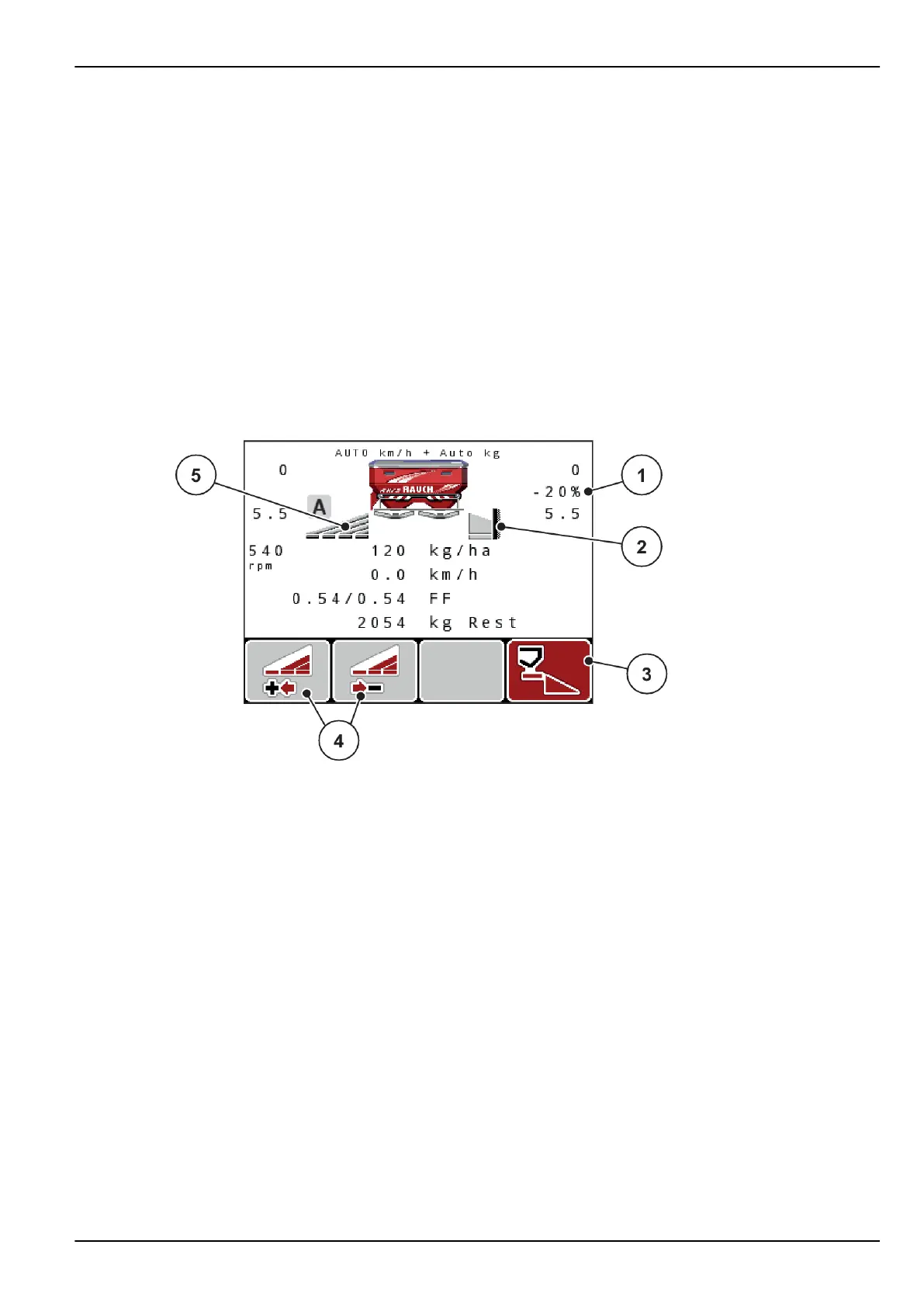

Fig. 52: Operating screen with one section on the left, boundary spreading on the right
[1] Display of application rate change in
boundary spreading mode
[2] The right spreading side is in boundary
spreading mode.
[3] The right spreading side is activated.
[4] Reduce or increase left section
[5] Infinitely variable adjustment of left section
(VariSpread pro)
• The application rate on the left is set to the full spreading side.
• The right boundary spreading function key has been pressed, boundary spreading is active,
and the application rate is reduced by 20%.
• Press the Reduce left spreading width function key in order to reduce the section.
• If you press the C/100% function key, the full spreading side will be reapplied immediately.
• Only for TELIMAT versions without sensor: If you press the T key, boundary spreading is
deactivated.
5. Spreading operation
QUANTRON-A AXIS/MDS 5902662
93
