AXIS-M EMC – VariSpread VS pro

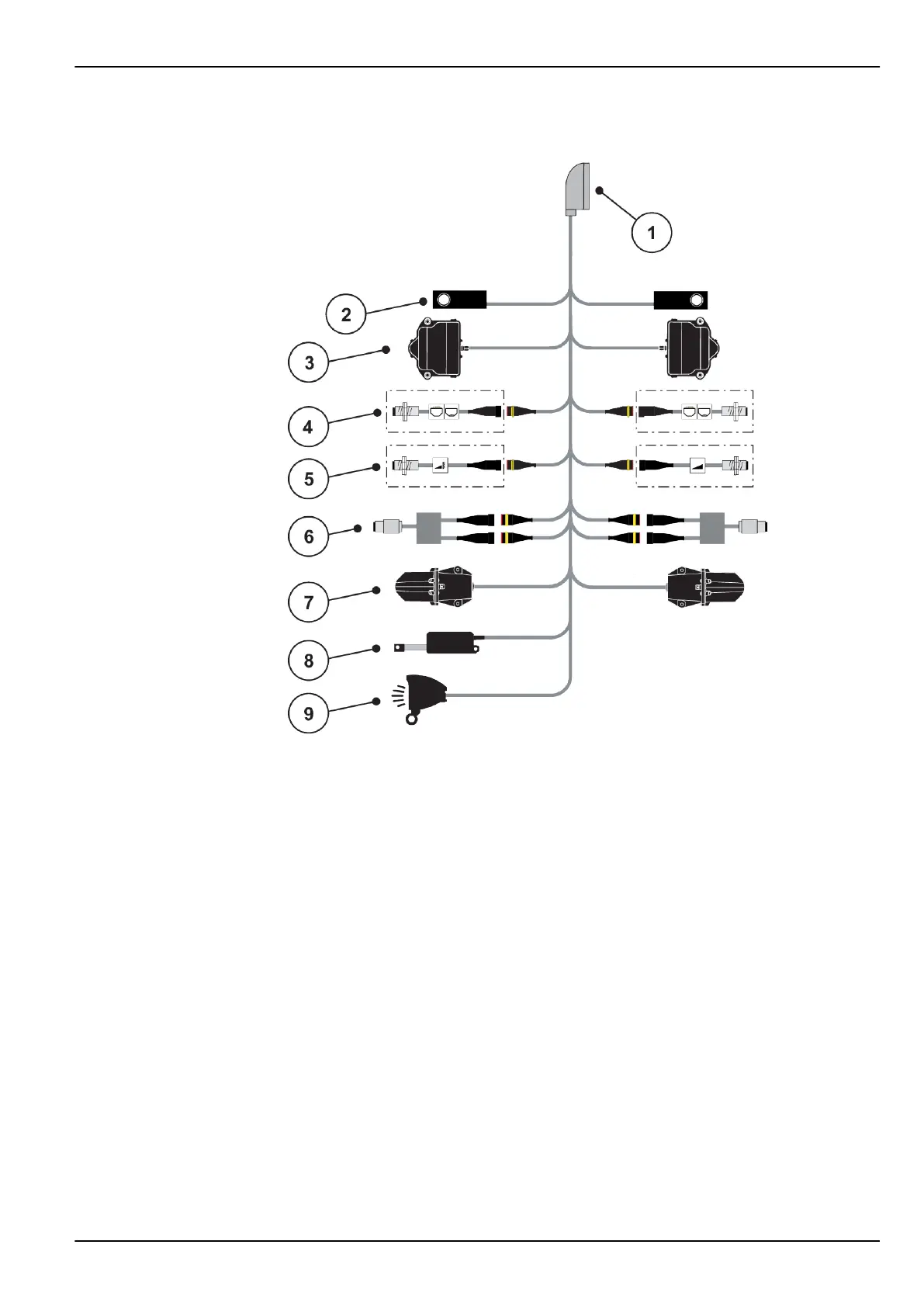

Fig. 14: Schematic connection diagram of QUANTRON-A – AXIS-M EMC VS pro
[1] 39-pin machine plug
[2] Weigh cell, left/right (machines with weigh
frame only)
[3] Metering slide rotary drive, left/right
[4] Option: Level sensor, left/right
[5] Option: TELIMAT sensor and/or GSE
sensor, top/bottom
[6] Torque/speed sensor, left/right
[7] Drop point adjustment, left/right
[8] Hopper cover
[9] Option: SpreadLight
3. Attachment and installation
QUANTRON-A AXIS/MDS 5902662
31
