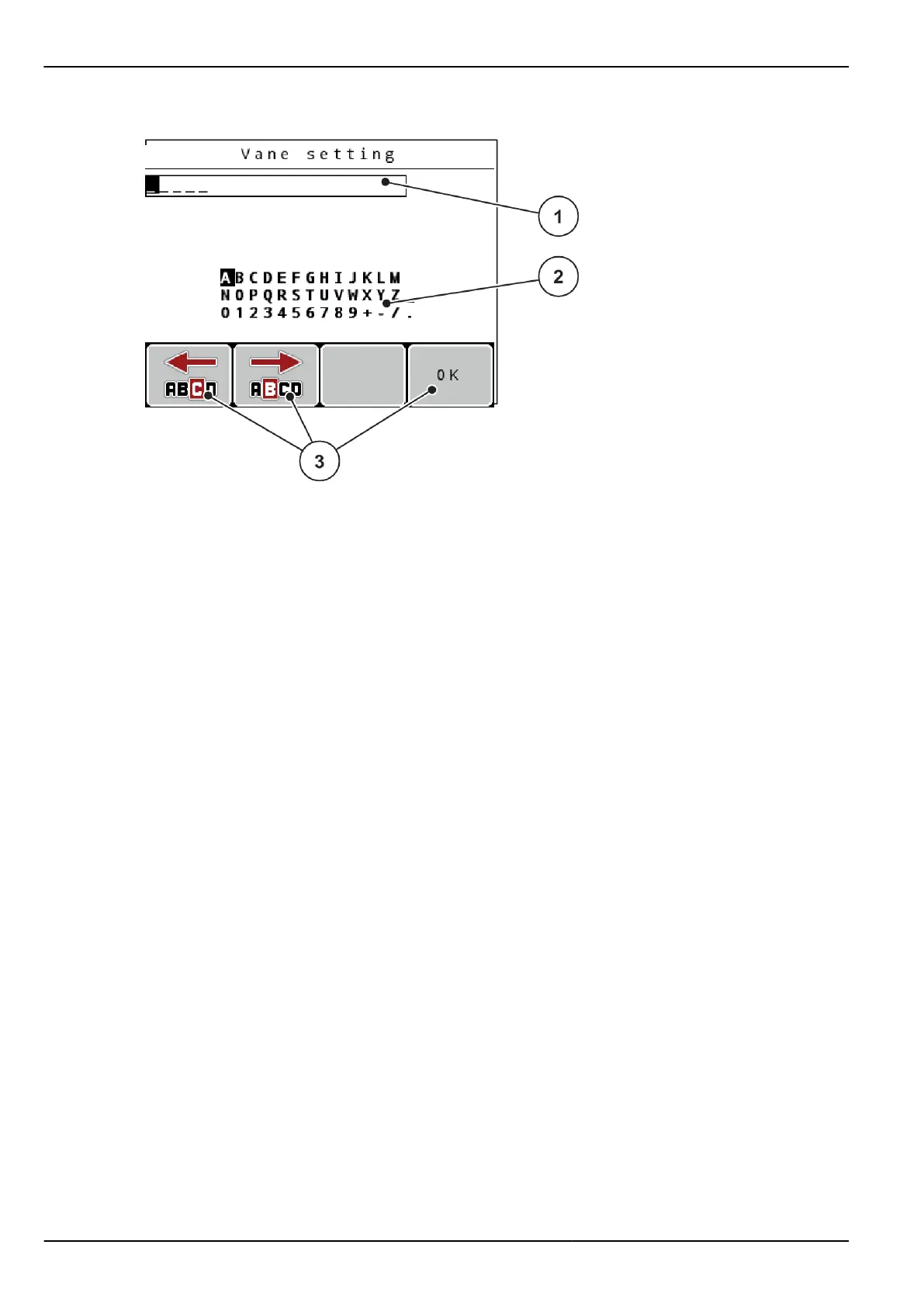

Fig. 47: Text input menu
[1] Input field
[2] Character field, display of available
characters (language-dependent)
[3] Function keys for navigation in the input
field
Entering text:
u
Switch from the higher-level menu to the Text input menu.
u
Use the function keys to move the cursor to the position of the character to be written first in the
input field
u
Use the arrow keys to select the character to be written in the character field.
u
Press the Enter key.
The highlighted character appears in the input field.
The cursor jumps to the next position.
u
Continue until the entire text is entered.
u
Press the F4/OK function key.
The input is confirmed.
The control unit saves the text.
The display shows the previous menu.
Single characters can be overwritten by another character.
4. Operation
86
5902662 QUANTRON-A AXIS/MDS
