Chapter 5
48 Envizio Pro and Envizio Pro II Installation and Operation Manual
Manually Configure Sections
If the boom or implement is not aligned end-to-end on the swath midpoint, sections will need to manually
configured. Select Manually Configure to begin locating boom or implement sections.

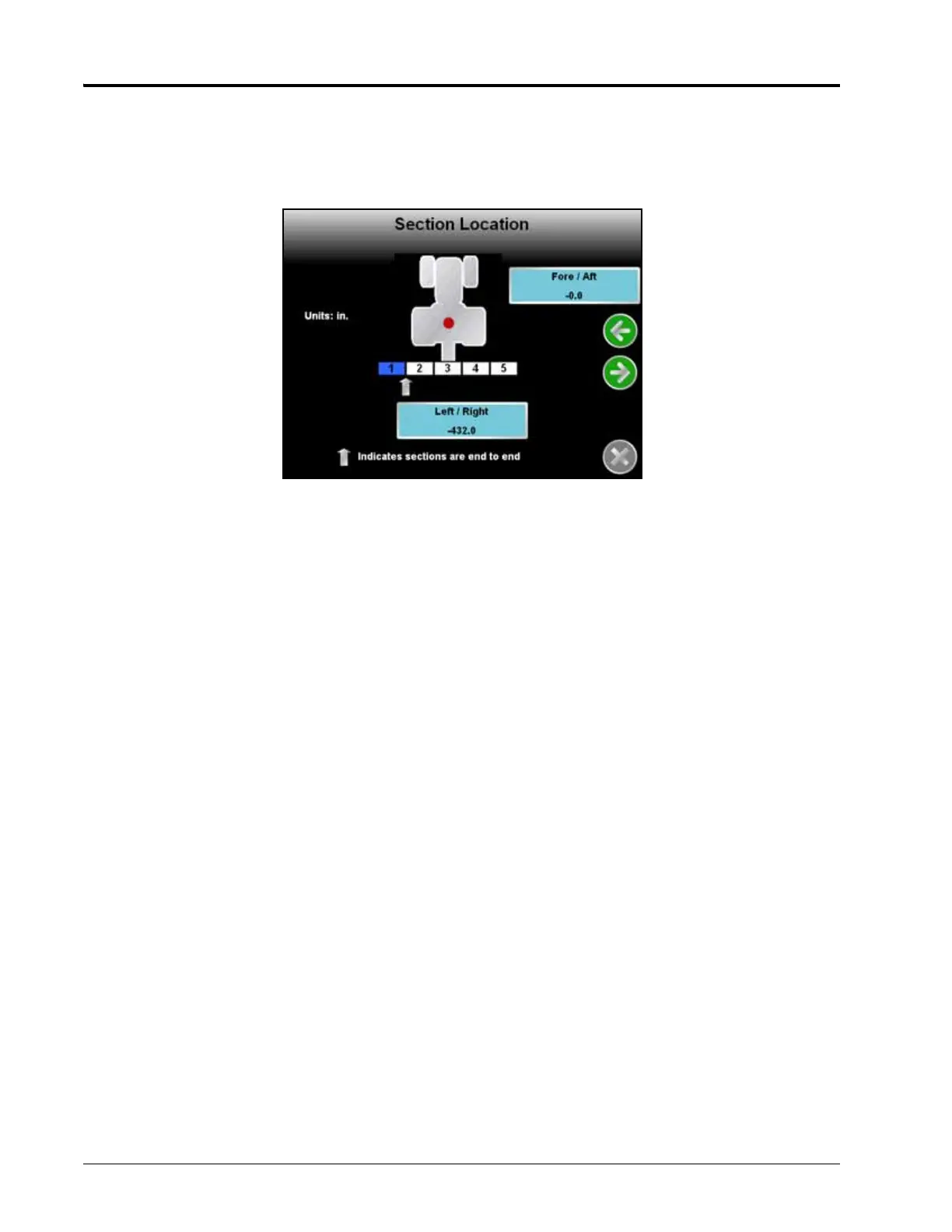

1. The Section Location screen will display.
The current offset (if any) are displayed the Left/Right and Fore/Aft buttons.
Note: The offset distances represent the offset from the DGPS antenna to the center of the selected
section.
2. Touch the Left/Right button to enter a left or right offset for the first section. Enter a negative value if the
center of the section is located to the left of the of the DGPS antenna.
3. Touch the Fore/Aft button to enter a fore or aft offset for the first section. Enter a negative value if the center
of the section is located behind the DGPS antenna.
4. Touch the Next icon and repeat step 2 and step 3 to continue programming individual section locations.
When finished, touch the Next icon to return to the Configure Sections screen.
5. Touch the Accept icon to return to the Setup Wizard Menu.
