be refined for each specific vehicle and speed sense system. See Appendix A, Calculating the Calibration
Values, for instructions on refining the speed cal value.
Note: The GPS speed over CANbus feature is only available with specific Raven speed sense nodes.
4. The test speed and distance values are not required to complete initial setup of the field computer. Refer to
the System Menu section on page 93 for detailed information about these settings. Touch the Next icon to
continue.

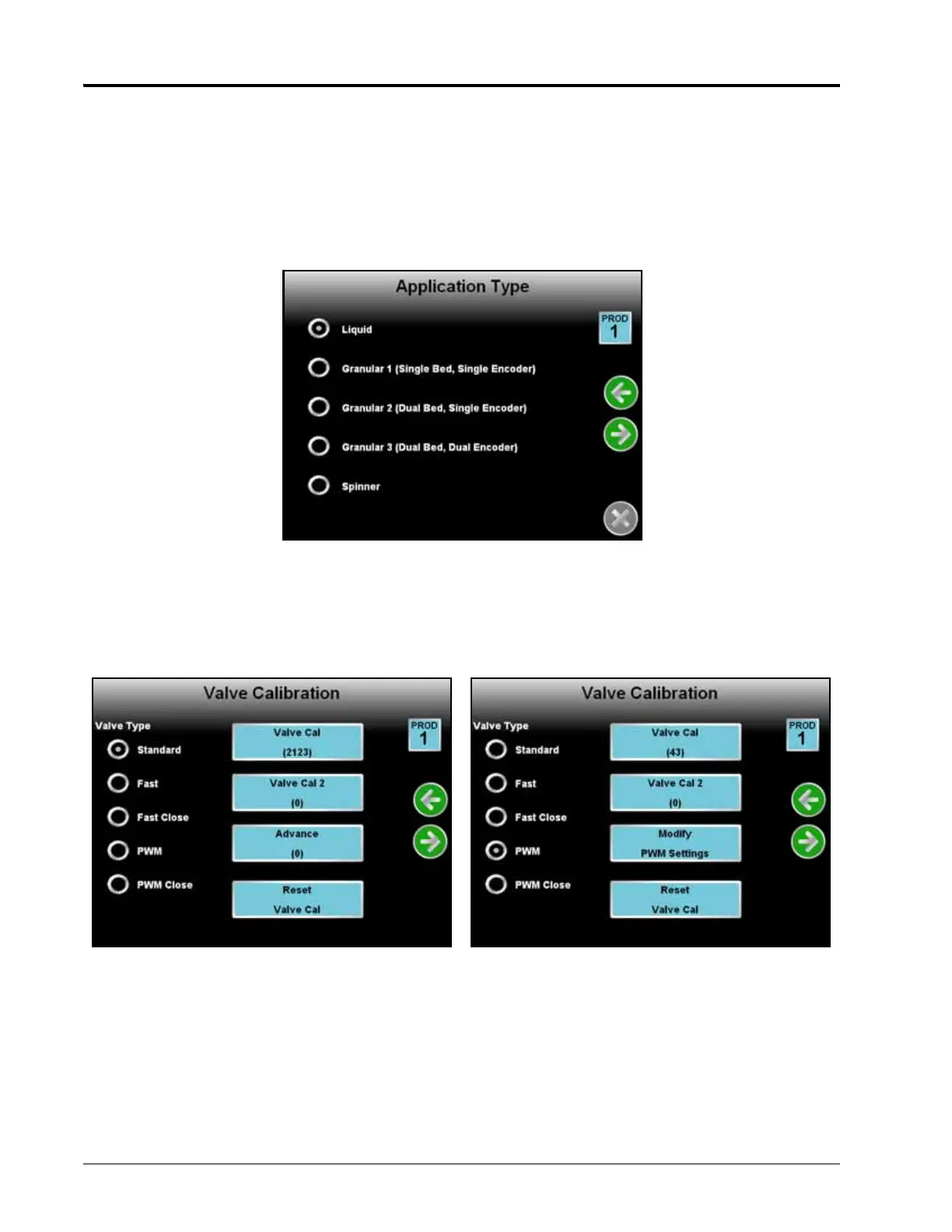

5. The Application Type screen will display for the first product.
Note: A spinner or injection option will be displayed if the node is equipped with firmware supporting
either of these features.
6. Select the type of product which the field computer will be controlling as Product 1.
7. Touch the Next icon to continue. The Valve Calibration screen will display.
8. Select the type of control valve which will be used to control Product 1. Touch the ‘Reset Valve Cal’ button to
insert the recommended calibration value.
Note: The Advance button is only displayed if the assigned product node has software version 1.50 or
higher. Refer to the Valve Advance (Standard, Fast or Fast Close Valve) section on page 102 for
information about the Valve Advance feature.
The Modify PWM Settings button will only be displayed if PWM or PWM Close is selected as the
valve type. Refer to the Modify PWM Settings (PWM or PWM Close Valve) section on page 102
for information on these settings.
Standard/Fast/Fast Close PWM/PWM Close
To Next Page
