TheMARPA-relatedsoftkeysaredisplayed.
2.Alternatively,withRadarOverlayswitchedon,pressthe
TARGETTRACKINGsoftkey.
Chartscaleandradarrangesynchronization
Youcansynchronizetheradarrangeinallradarwindowswiththe
chartscale.
Whensynchronizationisswitchedon:
•Theradarrangeinallradarwindowschangestomatchthechart
scale.
•‘Sync’isindicatedinthetopleft-handcornerofthechartwindow.
•Ifyouchangetheradarrange,inanyradarwindow,all
synchronizedchartviewschangescaletomatch.
•Ifyouchangethescaleofasynchronizedchartwindow,allradar
windowschangerangetomatch.
Synchronizingthechartandradarrange
Inthe2Dchartview:
1.SelectthePRESENTATIONsoftkey.
2.UsetheSYNCsoftkeytoselecttheRDRoption.
3.UsetheRANGEINorOUTcontroltochangethechartand
radarrange.
Note:Radarrangesynchronizationisnotavailablewhenthe
chartmotionmodeissettoAUTORANGE.
Rangerings
1nm
2nm
3nm
D117 66-1

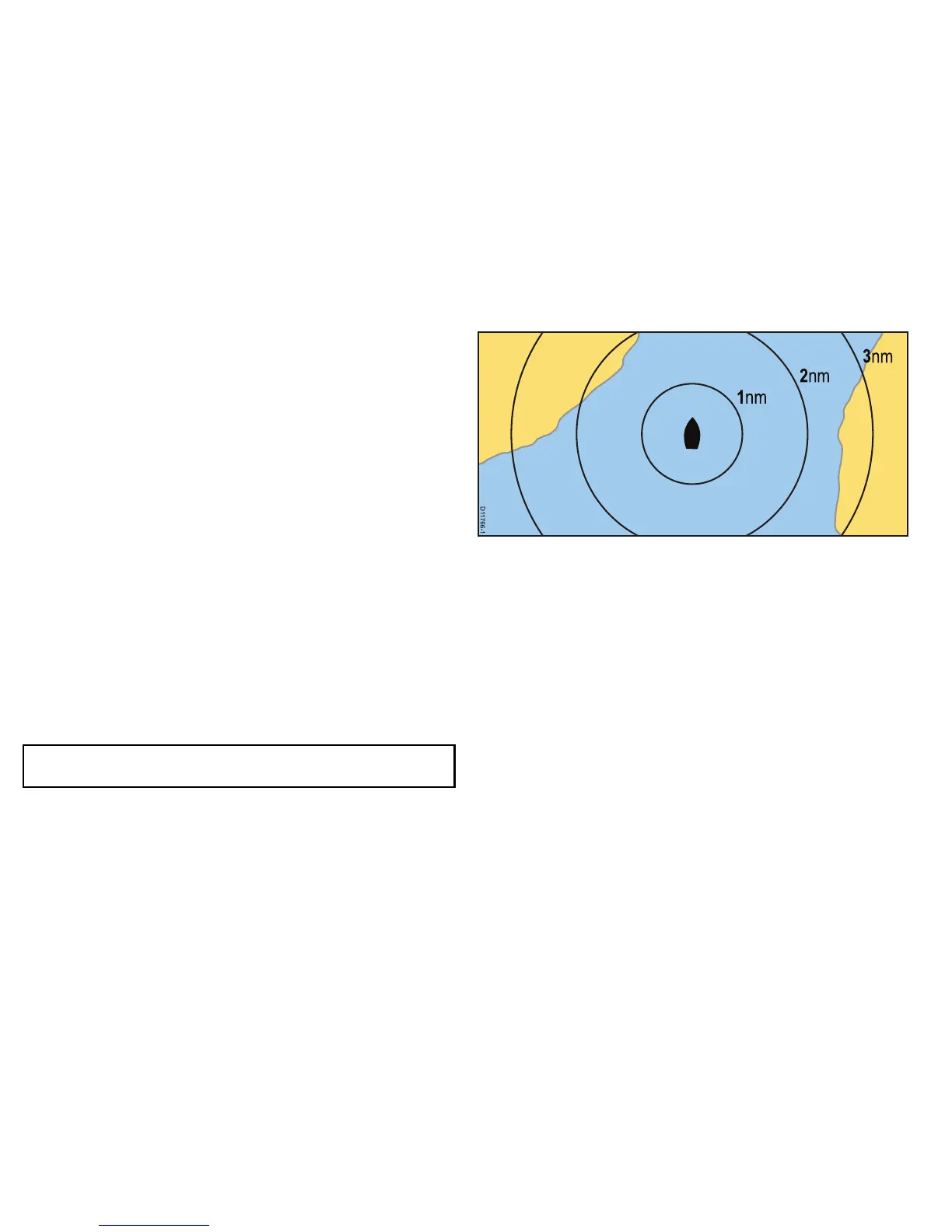

Rangeringsgiveyouanincrementalrepresentationofdistance
fromyourvesseltohelpyoujudgedistancesataglance.Therings
arealwayscentredonyourvessel,andthescalevariestosuityour
currentzoomsetting.Eachringislabelledwiththedistancefrom
yourvessel.
Enablingrangerings
Inthe2Dchartview:
1.PresstheMENUbutton.
2.SelectChartSetup.
3.Select2DSetUp.
4.SelecttheONoptionforthe2DRangeRingsmenuitem.
NOWRadweatheroverlay
Withasuitableweatherreceiverconnectedtoyourmultifunction
display,youcanoverlayNOWRadweatherinformationonthechart
display.
TheNOWRadweatheroverlayprovidesNOWRadweather
informationandreportsinthechartapplication.Youcanadjustthe
86E-SeriesWidescreenUserreference
