3-10 Raychart 425 Chartplotter
3. Select MORE to see more functions (Figure 3-18):

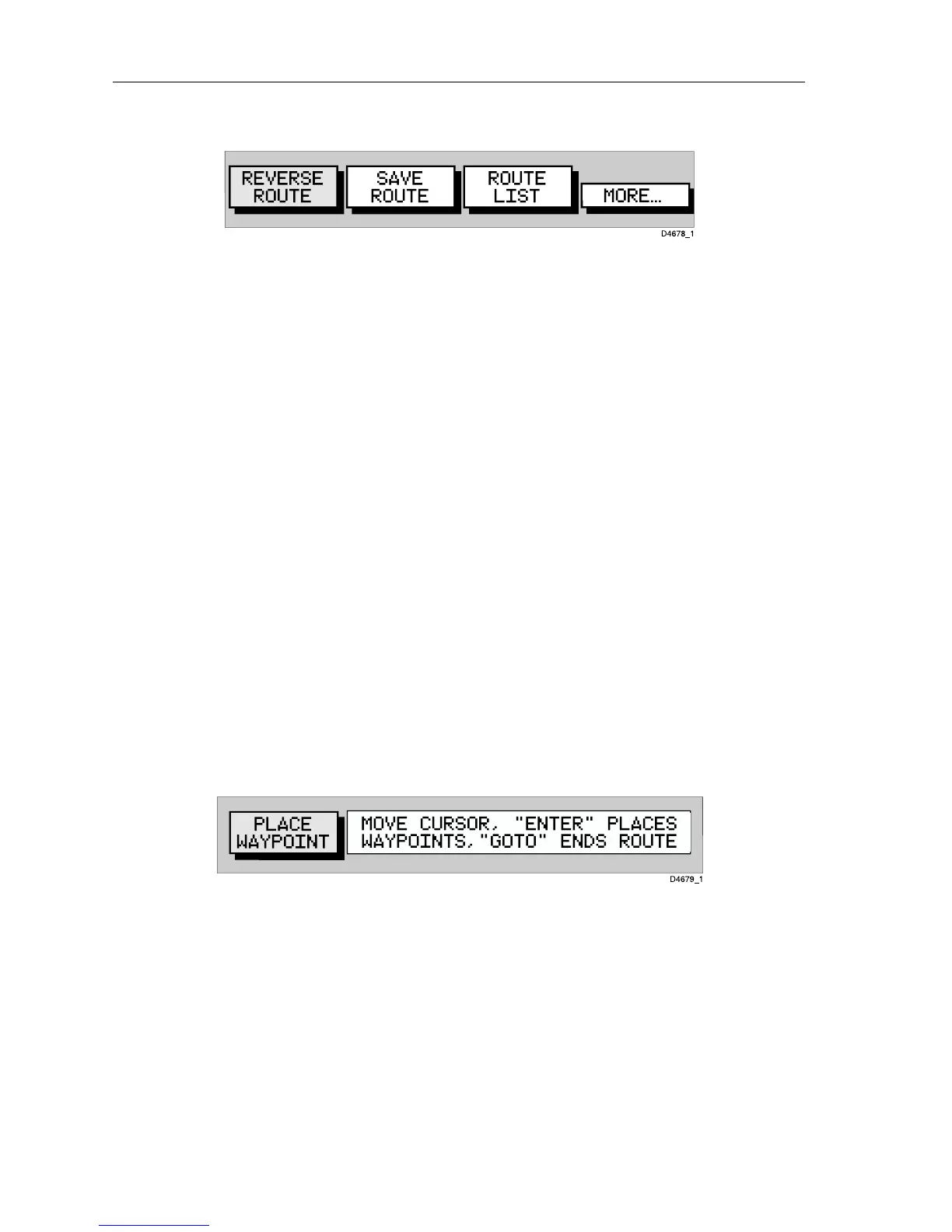

Figure 3-18: Second Level Functions
4. Select MORE again to return to the first level functions.
5. Press
CLEAR to return to chart mode.
Creating a New Route
Note: If there is a current route on screen, it is cleared when MAKE
ROUTE
is selected. If following the current route you are prompted to
STOP FOLLOW. Press ENTER to continue or CLEAR to abandon route
creation. If the route has not been saved you are prompted to save it.
Waypoints in a route can be added/removed after it has been created,
either via the
ROUTES function or via the cursor (see Editing a Route in the
following sections).
➤ To make a new route by placing waypoints:
Note: You can pan the chart and change the scale whilst placing way-
points.
1. If necessary, move the cursor to the required area in which to make the
route and select a suitable chart scale.
2. Select
ROUTES then MAKE ROUTE. The MAKE ROUTE function is
replaced with
PLACE WAYPOINT, together with help text
(Figure 3-19):
Figure 3-19: Place Waypoint Function
3. Move the cursor to the position on the chart where the first waypoint
is to be placed and press
ENTER.
Note: The cursor can be placed on an existing waypoint, if required; the
PLACE WAYPOINT function changes to USE THIS WAYPOINT. Press ENTER
to use the waypoint.
The waypoint appears on the screen at the cursor position. The number
displayed alongside the waypoint identifies its position in the route.
Note: If the route is Cleared before it is saved, the waypoint is removed.
