Chapter 5: Installation 5-5
4. Stick the supplied gasket (3) to the mounting surface ensuring that the
holes match and pass the cable through the centre hole or the cable
exit channel.
5. Carefully position the GPS Receiver, passing the studs through the
holes in the mounting surface and secure to the mounting surface
using the thumb nuts provided (4).

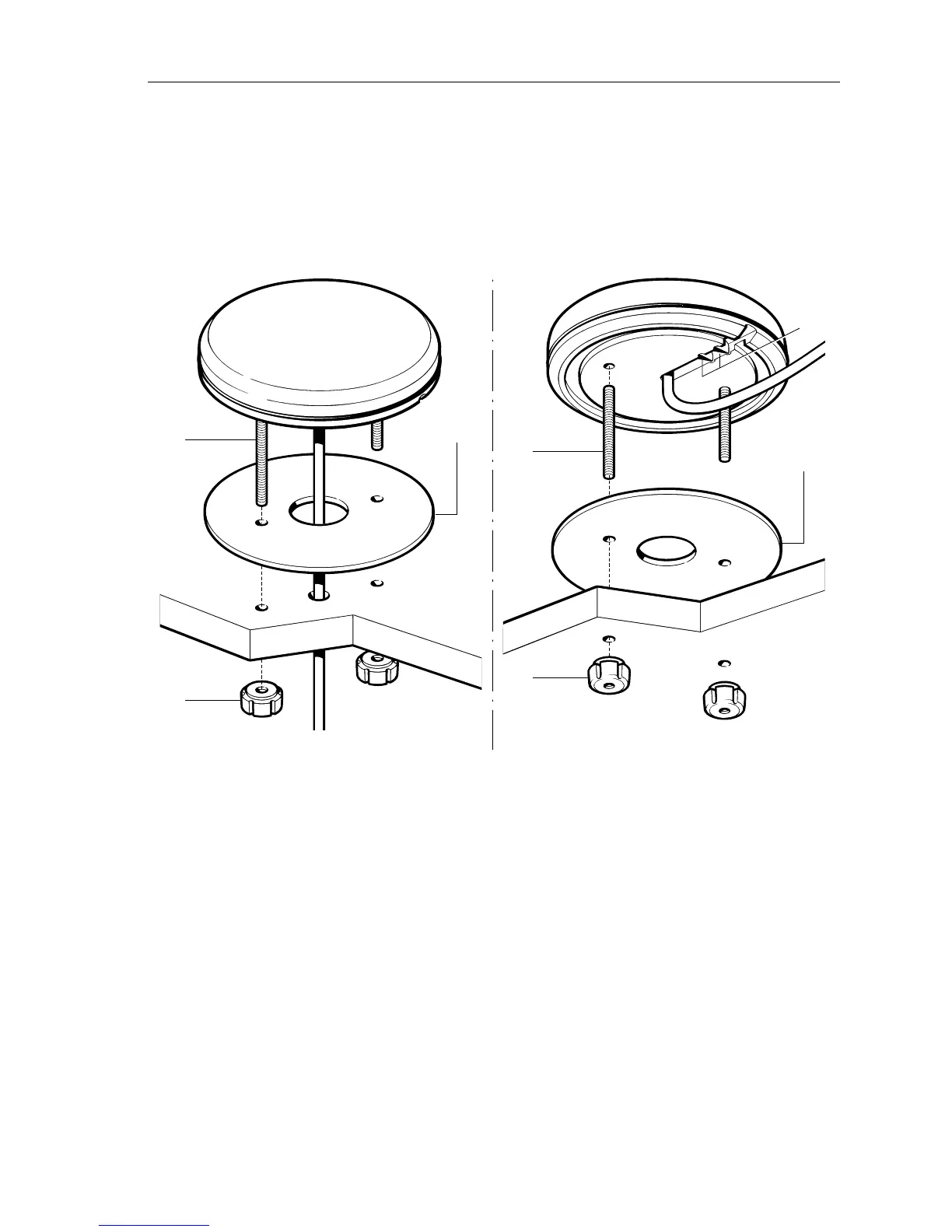

Figure 5-2: Surface Mounting Arrangement
Pole Mounting
Refer to Figure 5-3:
1. Screw the pole mount base to a suitable pole or rail mount bracket,
having an industry standard 1in 14TPI thread, until secure.
2. Pass the cable through the centre hole of the pole mount base (A) or
through the cable exit hole alongside the centre hole (B) or insert the
cable into the side exit channel (C).
3. Check that the cable is positioned correctly and secure the GPS
Receiver to the pole mount base using the two screws provided.
If the cable is to exit from the side of the GPS Receiver through the
side channel, remove the two plastic tabs (1) obstructing the cable
channel.
D4725_1
1
2
3
4
2
3
4
Top view
Underside view
