5-8 Raychart 425 Chartplotter

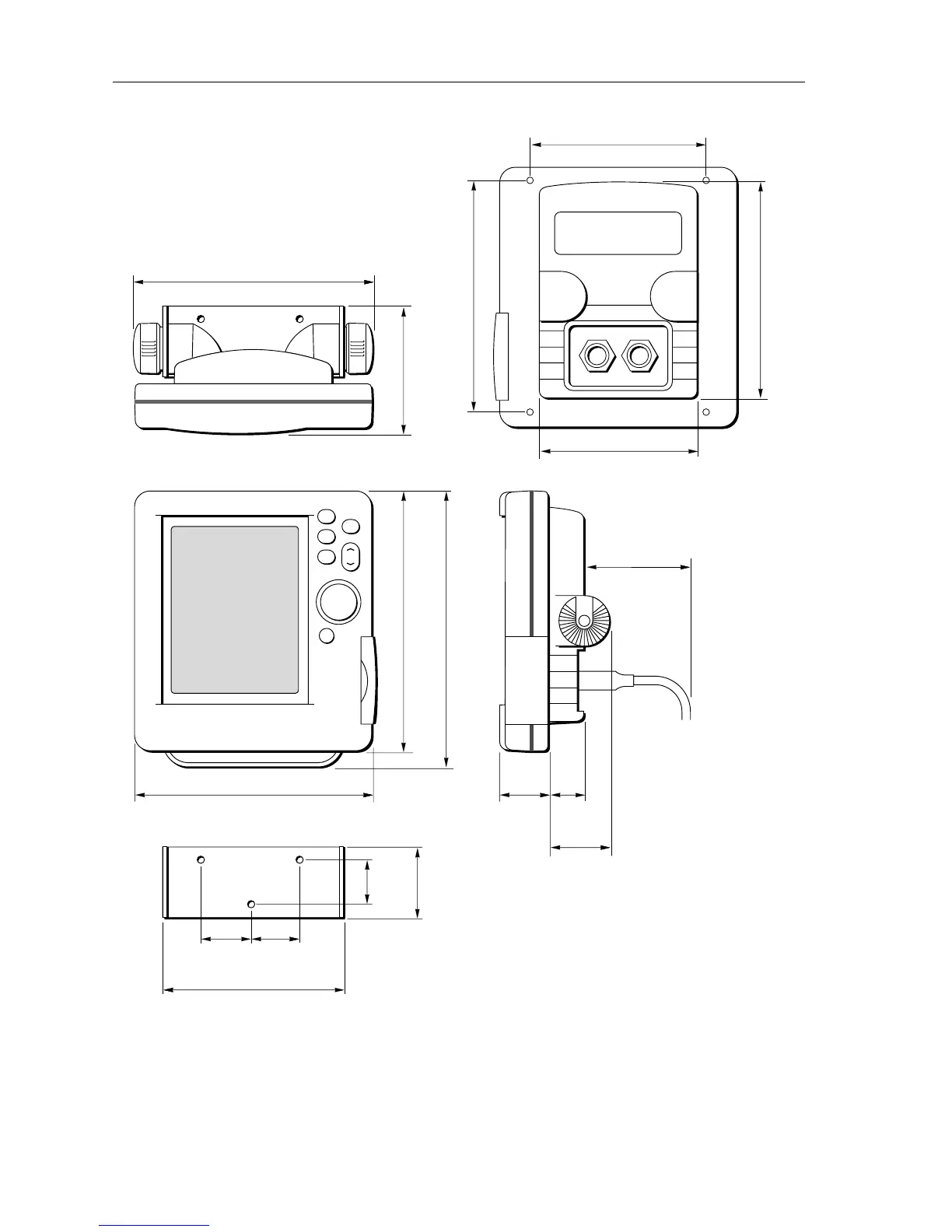

Figure 5-4: Raychart 425 Dimensions
GO TO
MOB
CLEAR
ENTER
PAGE
RANGE
POWER
170mm (6.7in)
196 mm (7.7 in)
184 mm (7.25 in)
168 mm (6.6 in)
122 mm (4.8 in)
34 mm
(1.3 in)
25 mm
(1 in)
35 mm
(1.38 in)
35 mm
(1.38 in)
32 mm
(1.26 in)
50 mm
(2.0 in)
43.5 mm
(3.5 in)
90 mm (3.5 in)
D4721-1
80 mm (3.15 in)
plug clearance
153 mm (6.0 in)
112 mm (4.4 in)
125 mm (4.9 in)
165 mm (6.5 in)
