switch on the MOSAIC system, that will immediately load the backup configuration. In this
way, the work interruptions will be minimized.

The LOAD and RESTORE functions can be disabled via SW. (see Figure 40)

In order to be used, the expansion units must be addressed at the time of
installation (see the NODE SEL section).
 Each time MCM is used, carefully check that the chosen configuration is the one that
was planned for that particular system. Try again a fully functional test of the system
composed of Mosaic plus all devices connected to it (see the TESTING the system
section).
-

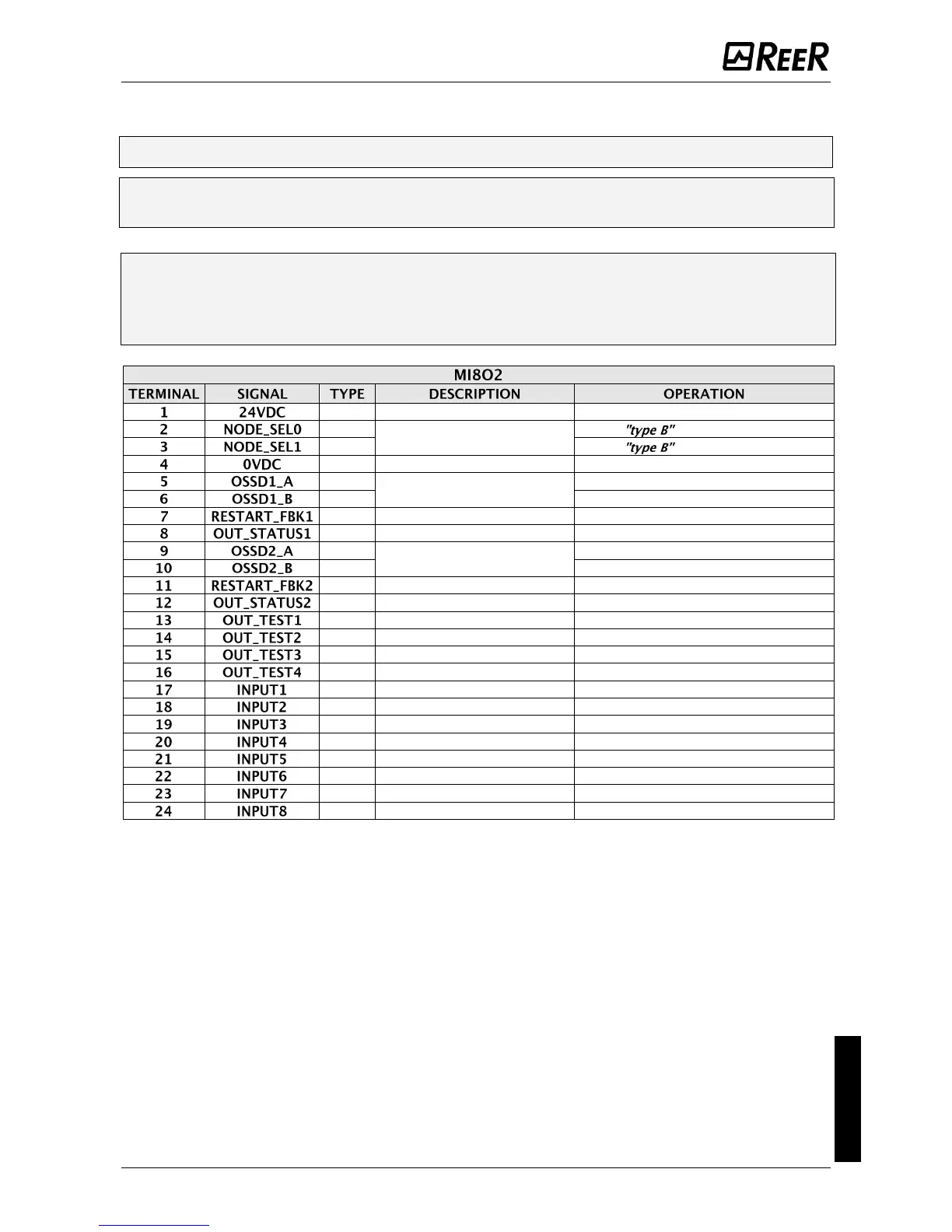

24VDC power supply
-
Input
Node selection
Input ( according to EN 61131-2 )
Input
Input ( according to EN 61131-2 )
-
0VDC power supply
-
Output
Static output 1
PNP active high
Output
PNP active high
Input
Feedback/Restart 1
Input according to EN 61131-2
Output
Programmable signal output
PNP active high
Output
Static output 2
PNP active high
Output
PNP active high
Input
Feedback/Restart 2
Input according to EN 61131-2
Output
Programmable signal output
PNP active high
Output
Short circuit detected output
PNP active high
Output
Short circuit detected output
PNP active high
Output
Short circuit detected output
PNP active high
Output
Short circuit detected output
PNP active high
Input
Digital input 1
Input according to EN 61131-2
Input
Digital input 2
Input according to EN 61131-2
Input
Digital input 3
Input according to EN 61131-2
Input
Digital input 4
Input according to EN 61131-2
Input
Digital input 5
Input according to EN 61131-2
Input
Digital input 6
Input according to EN 61131-2
Input
Digital input 7
Input according to EN 61131-2
Input
Digital input 8
Input according to EN 61131-2
Table 2
