MANUAL – REFLEX EZ-TRAC™ | 23
7 About the REFLEX EZ-TRAC™
equipment
This chapter describes the equipment for REFLEX EZ-TRAC™.

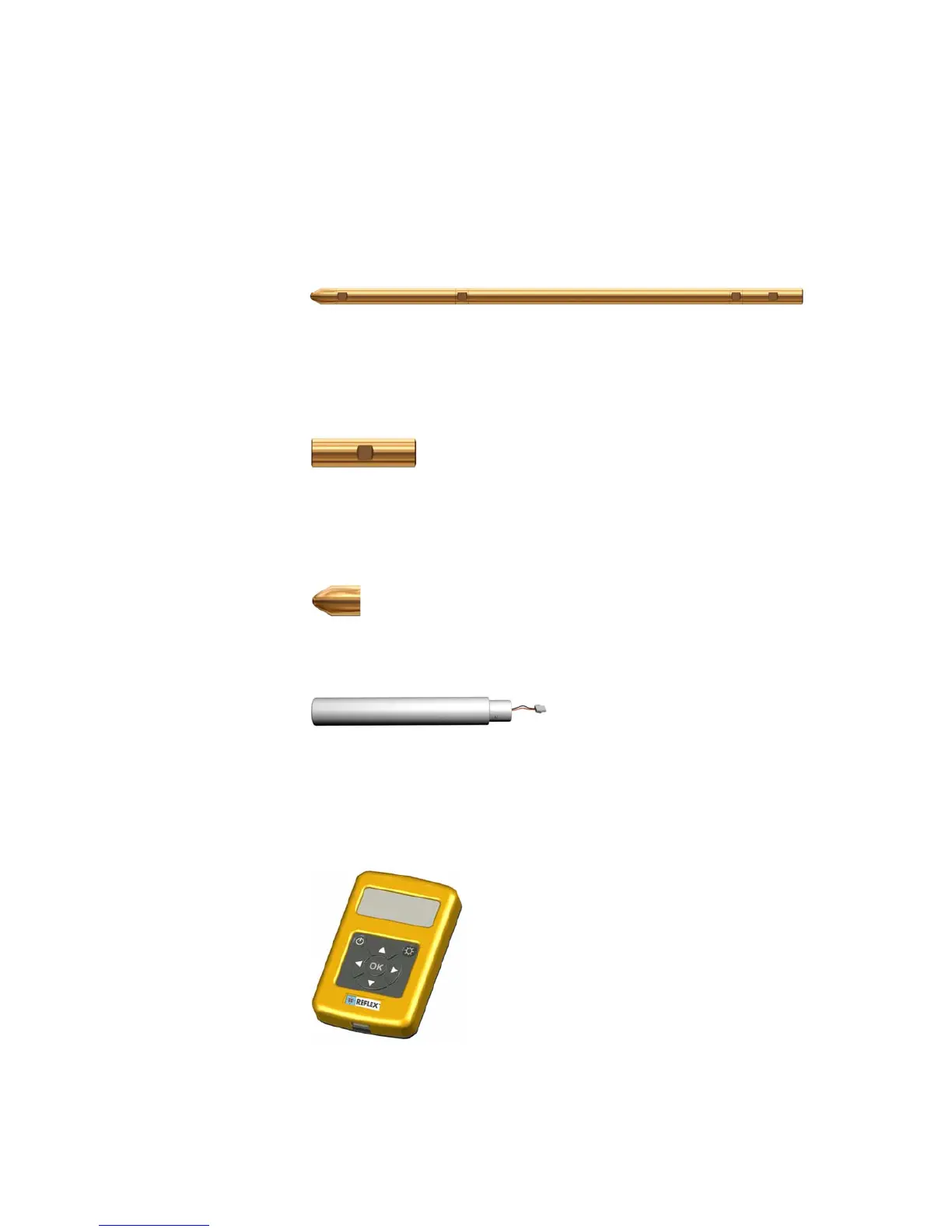

7.1 Instrument
1. Instrument probe
The
instrument probe is a robust tube that holds the electronic
sensors, the onboard computer and the battery pack. In the upper
end of the probe there is an IR port, which is used for communication
with the control unit. The outer diameter of the probe is 35 mm.
2. Top coupling
The top coupling is used to seal the upper end of the instrument
probe, to protect the IR port. The top coupling is sealed with sealing
rings to avoid drilling fluid ingress and to maintain proper pressure
sealing.
3. Bottom nose
The bottom nose is removed when orientation equipment is to be
attached.
4. Battery pack
The lithium battery pack is designed to give several years of life under
normal conditions. The battery pack can be replaced in the field,
please refer to chapter Battery Replacement.
7.2 Control unit
5. REFLEX™ EZ-COM unit
REFLEX™ EZ-COM, which is a robust handheld unit developed by
REFLEX™, is used to control the REFLEX EZ-TRAC™ instrument.
