MANUAL – REFLEX EZ-TRAC™ | 38

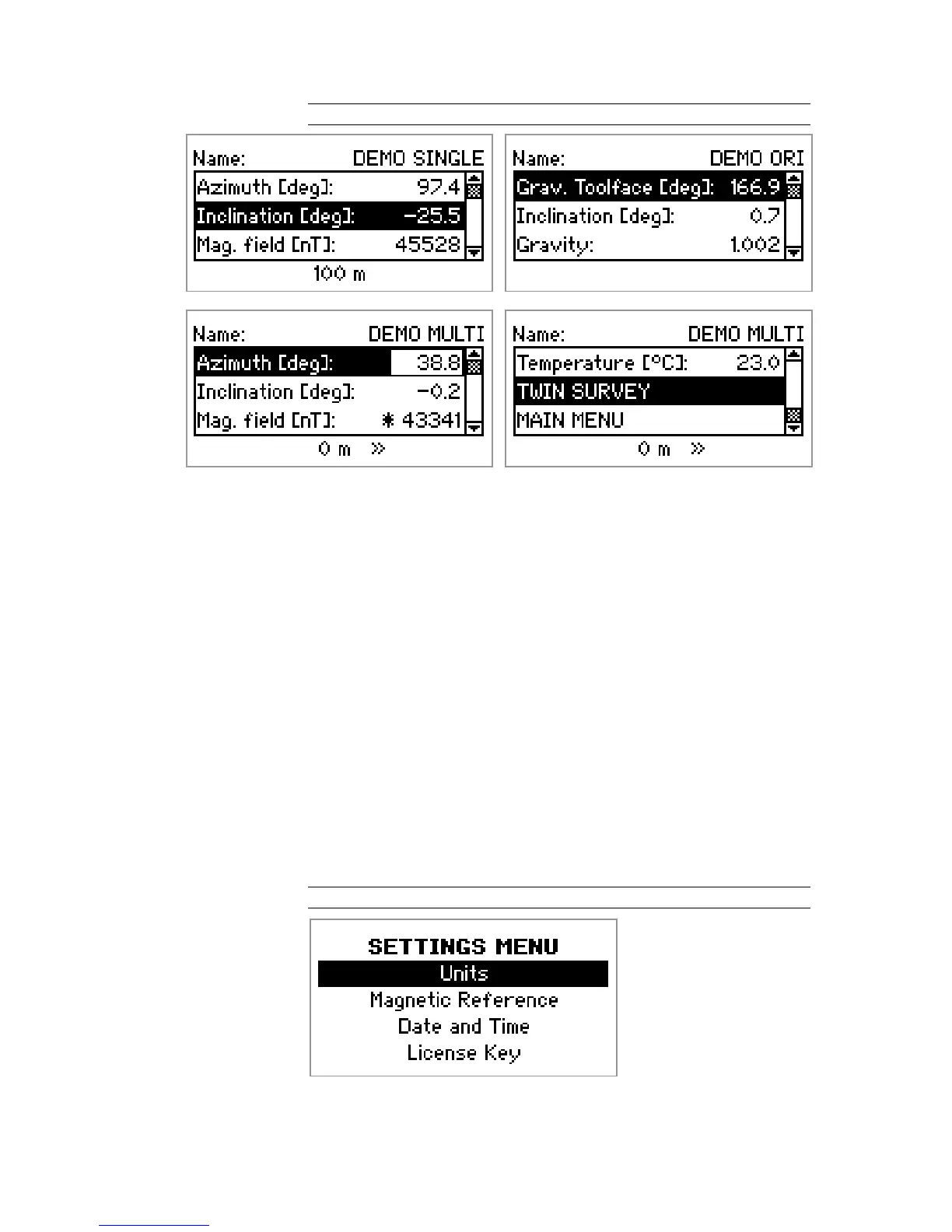

Figure 26 Survey results
UP/DOWN Use the UP/DOWN keys to scroll in the result list.
LEFT/RIGHT Use the LEFT/RIGHT keys to scroll between survey stations in Multi
Shot surveys and in surveys where Single Shot measurements have
been added to an existing survey.
Fast navigation Hold down the UP/DOWN key to navigate directly to the top/bottom of
the results. In surveys with more than one survey station, the
LEFT/RIGHT key can be used in the same manner to navigate
directly to the first/last survey station.
TWIN SURVEY If a Multi Shot survey has been performed in both directions, the
TWIN SURVEY option is used to toggle between the into and out of
hole surveys. The TWIN SURVEY option is available in the bottom of
the results list, just above MAIN MENU.
Return to MAIN Select MAIN MENU, which is available in the bottom of the results
list, to return to the MAIN menu.
8.2.4 Settings Menu
The SETTINGS menu gives access to the settings functionality.
Figure 27 SETTINGS menu
UP/DOWN Use the UP/DOWN keys to navigate between the menu options.
