MANUAL – REFLEX EZ-TRAC™ | 72
Select Enter desired Toolface to continue the orientation procedure
with the current zeroing.
Select End survey and Save results to save the survey results to file.
The zeroing value is automatically stored.
Select Cancel to end the survey without saving. The zeroing value is
lost (unless a stored value is being used).
10.8.1 Enter desired Toolface
If the orientation of the wedge is not as wanted, the desired tool face
can be entered. The
REFLEX™ EZ-COM unit tells you how much you
need to rotate the rods to obtain the correct orientation. The entered
value is stored until the survey is ended.

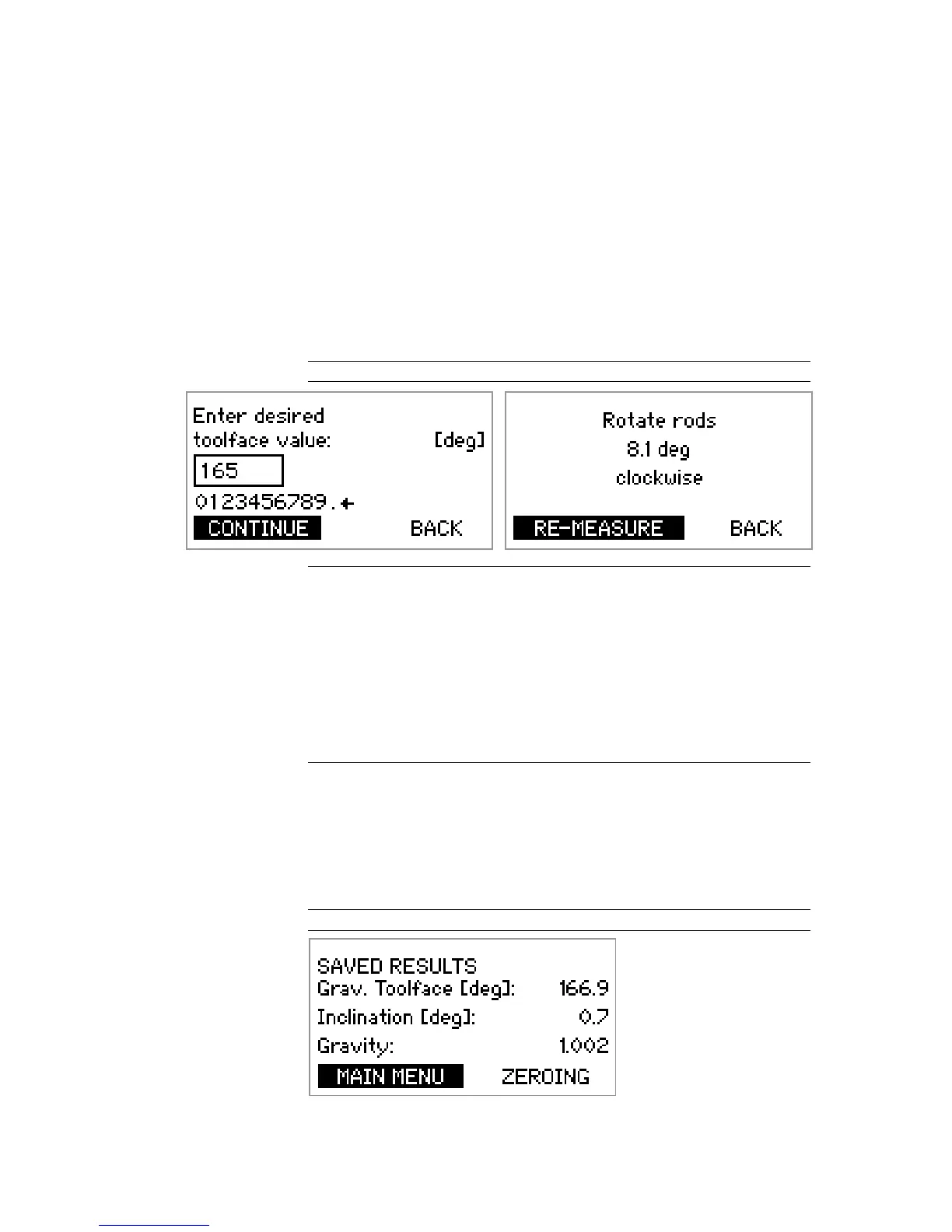

Figure 86 Enter desired toolface
Enter desired Toolface
1. In the Orientation Menu screen, select Enter desired Toolface.
2. Enter the desired toolface value. Select CONTINUE when
finished.
3. The required rotation of the drill rods is displayed. Rotate the drill
rods accordingly.
4. Select RE-MEASURE on the
REFLEX™ EZ-COM unit.
5. Continue to the section Downhole survey above.
10.8.2 End survey and Save results
In addition to the toolface (orientation) of the wedge,
REFLEX EZ-TRAC™ also registers the Inclination and Gravity at the
survey station. These values are saved to file in the
REFLEX™ EZ-COM unit, and can be viewed at a later stage from the
RESULTS menu.
Figure 87 End survey and Save results
To Next Page
