Reflex EZ-TRAC User Manual

MANUAL – REFLEX EZ-TRAC™ | 86
12.2 Transfer files to PC
A USB cable, Type A-A, is needed to connect the REFLEX™ EZ-COM
unit to a PC.
When the
REFLEX™ EZ-COM unit is connected to the PC, it is possible
to access all the survey files stored on the unit from the PC.
When the USB cable is connected, the USB mode message is
displayed on the control unit screen.

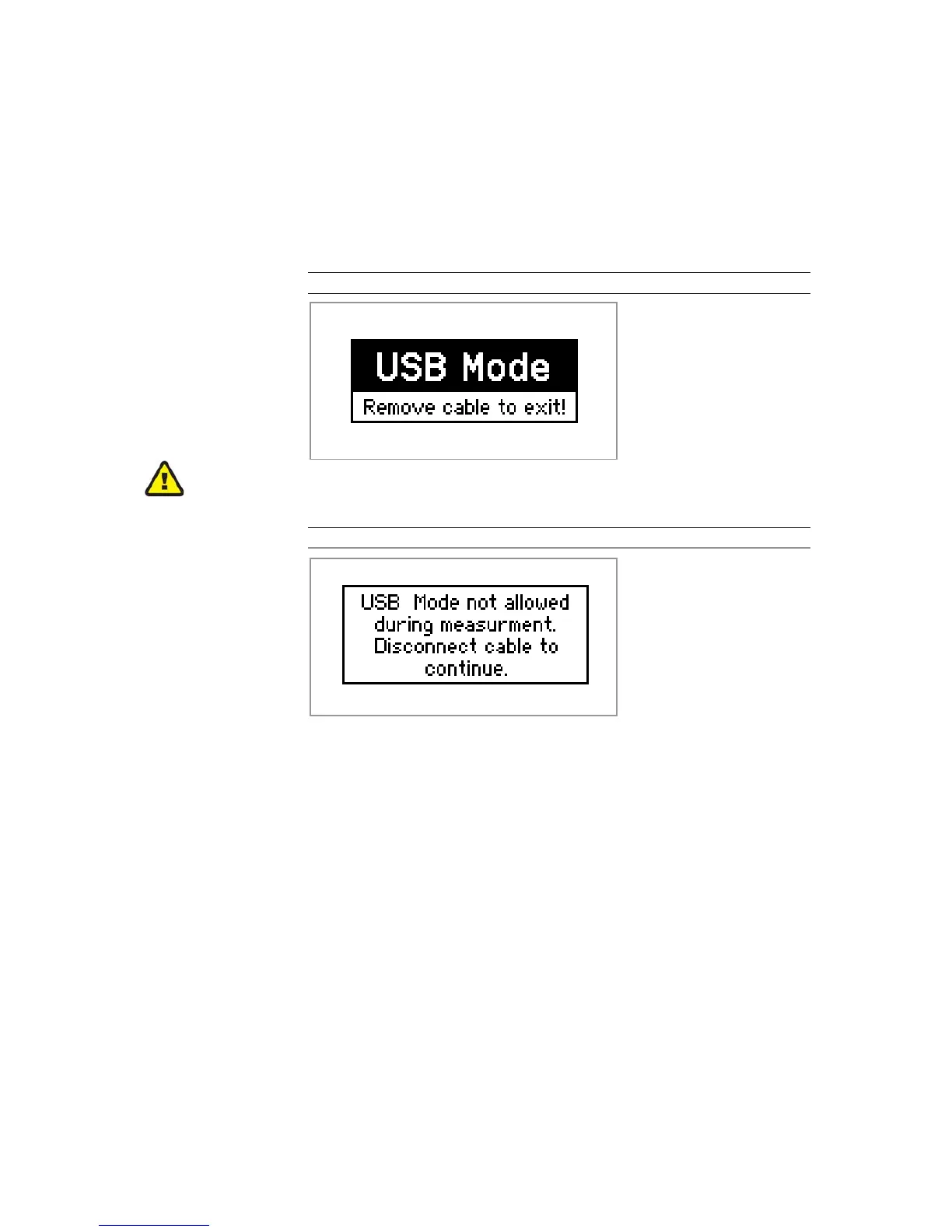

Figure 93 USB mode
The USB cable should not be connected to the REFLEX™ EZ-COM unit
when a survey is in progress. If so, a warning is displayed.
Figure 94 USB warning
When the
REFLEX™ EZ-COM unit is connected to the PC, a Windows
Explorer window is normally automatically displayed on the PC.
Single Shot surveys are stored in the folder SINGLE.
Multi Shot surveys are stored in the folder MULTI.
Orientation surveys are stored in the folder ORI.
