Reflex EZ-TRAC User Manual

MANUAL – REFLEX EZ-TRAC™ | 51

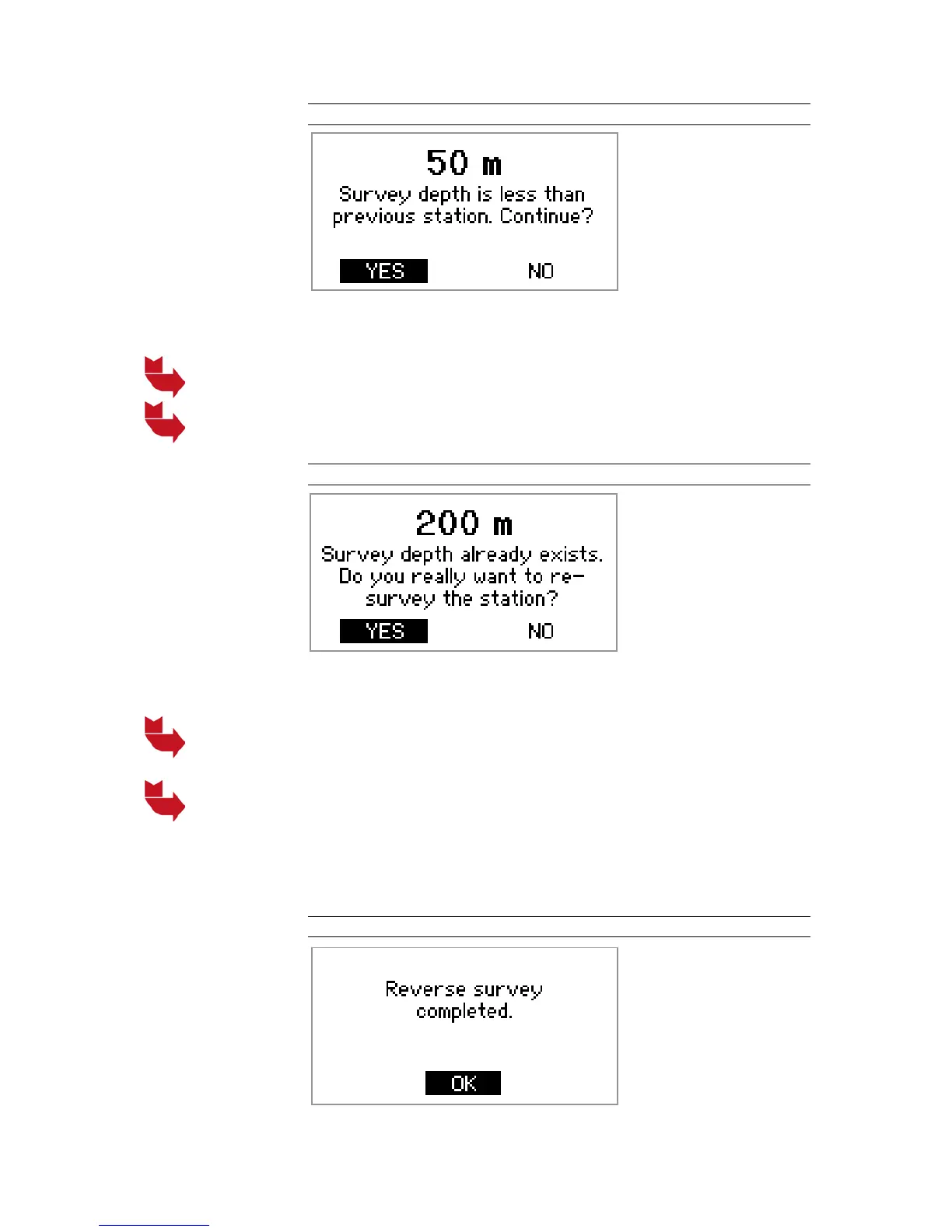

Figure 54 Depth is less
The Depth Is Less message appears if the entered Survey Depth of a
Single Shot measurement to be added to an existing survey is less
than the previous stations in the existing survey.
Select YES to keep the entered Survey Depth.
Select NO to enter another Survey Depth.
Figure 55 Depth exists
The Depth Exists message appears if the entered Survey Depth of a
Single Shot measurement to be added to an existing survey already
exists in the survey.
Select YES to keep the entered Survey Depth. The survey station will
appear twice in the data record.
Select NO to enter another Survey Depth.
8.3.3 Multi Shot
The messages described in this section may appear in Multi Shot
surveys.
Figure 56 Reverse survey completed
