MANUAL – REFLEX EZ-TRAC™ | 24
6. Multi Shot license key
The Multi Shot license key is needed to enable the Multi Shot
functionality in the
REFLEX™ EZ-COM unit. The license key is linked to
the serial number of the unit.
7. USB cable, Type A-A
The USB cable is used to connect the
REFLEX™ EZ-COM unit to a PC,
to allow transfer of survey files. The USB cable has a Male Type A
connector in both ends.
7.3 Utilities

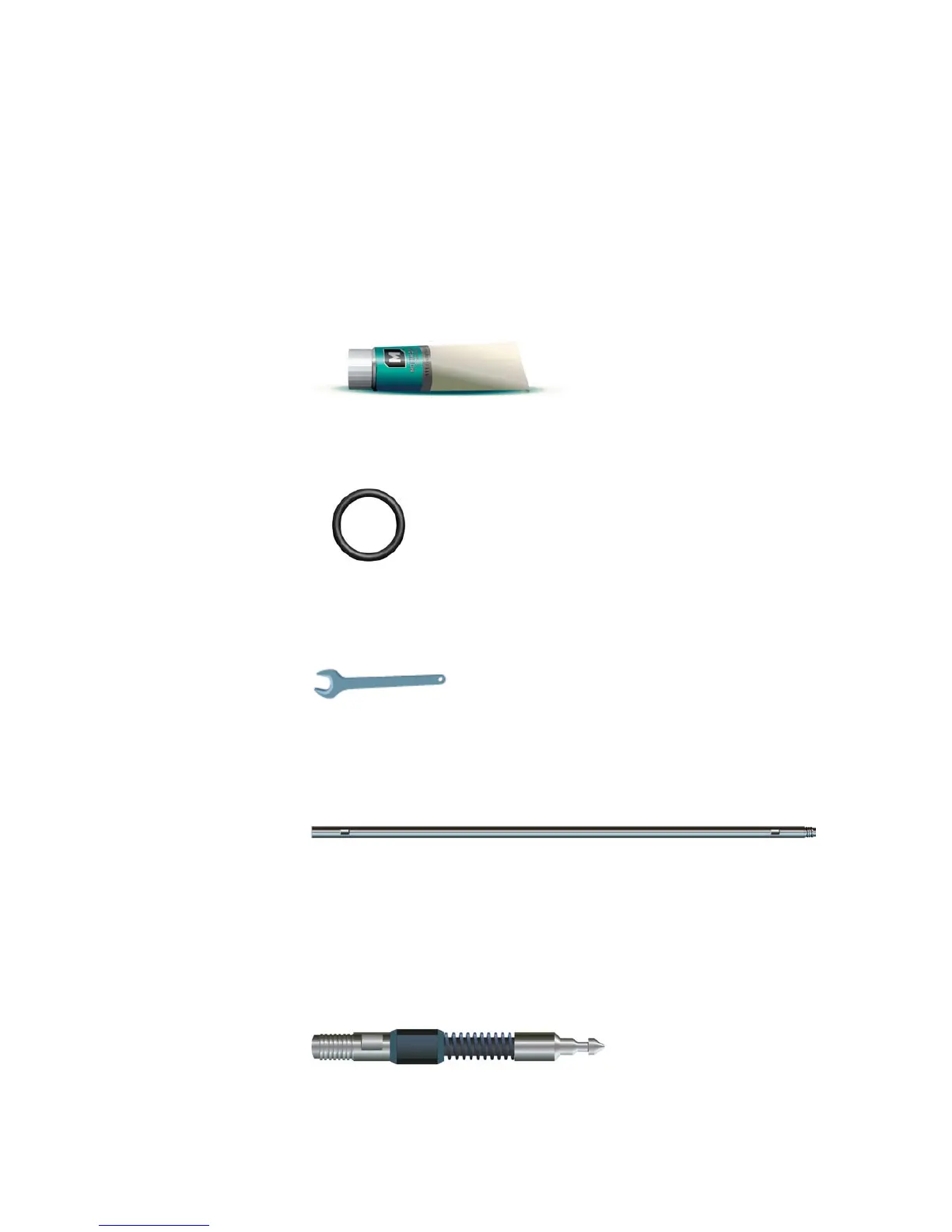

10. Silicon grease
Silicon grease is applied to the sealing rings to ensure that they stay
moist, in order to keep the instrument probe water tight.
11. Sealing rings
The sealing rings keep the instrument probe clean and water tight.
Use of clean, undamaged and correctly sized sealing rings is vital.
The sealing ring dimensions are 24mm x 3mm.
12. Open end wrench
Open end wrenches are used to tighten subs and extension rods. The
wrenches should only be placed in the designated machined slots.
7.4 Running gear
13. Aluminium extension rods
The non-magnetic aluminium extension rods are used to extend the
instrument a safe distance from any magnetic interference, such as
the drill rig or other man made or natural disturbances. The extension
rods are 1.5 meters long and a minimum of three must be used when
extending past the bit. The extension rods also assist the assembly to
lay flat in the hole, giving more accurate readings opposed to a short
rod. The extension rods have a box end and pin end.
14. Pin spear landing collar assembly
The pin spear landing collar assembly consists of a steel body, nylon
landing collar and a spring. The nylons are size specific to the bit
To Next Page
