MANUAL – REFLEX EZ-TRAC™ | 31
Auto Power Off If keys have not been pressed for 5 minutes, the power is
automatically turned off to save battery. When the power key is
pressed again, the unit resumes where it was before turned off.
Manual Power Off If the unit is manually powered off, it starts from the MAIN menu when
powered on again. However, if the unit is powered off during survey
execution, the execution is resumed when the unit is powered on
again.
Backlight key The backlight key is used to turn on/off the backlight.
Auto Backlight Off If keys have not been pressed for 30 seconds, the backlight is
automatically turned off to save battery.
Navigation control The menu driven user interface is controlled with the four arrow keys
(UP, DOWN, LEFT and RIGHT) and the OK key.
UP/DOWN The UP/DOWN keys are normally used to navigate
upwards/downwards on the display.
LEFT/RIGHT The LEFT/RIGHT keys are normally used to navigate to the left/right
on the display.
Navigate back The LEFT key is sometimes, for examples in the menus, used to
navigate back to the previous screen.
Fast navigation Fast navigation is available when entering characters and in the result
lists. If the UP/DOWN or LEFT/RIGHT key is held down, you navigate
directly to the top/bottom or to the far left/right.
Active option The active option is inversed on the display. The figure below shows
the active option FEET.

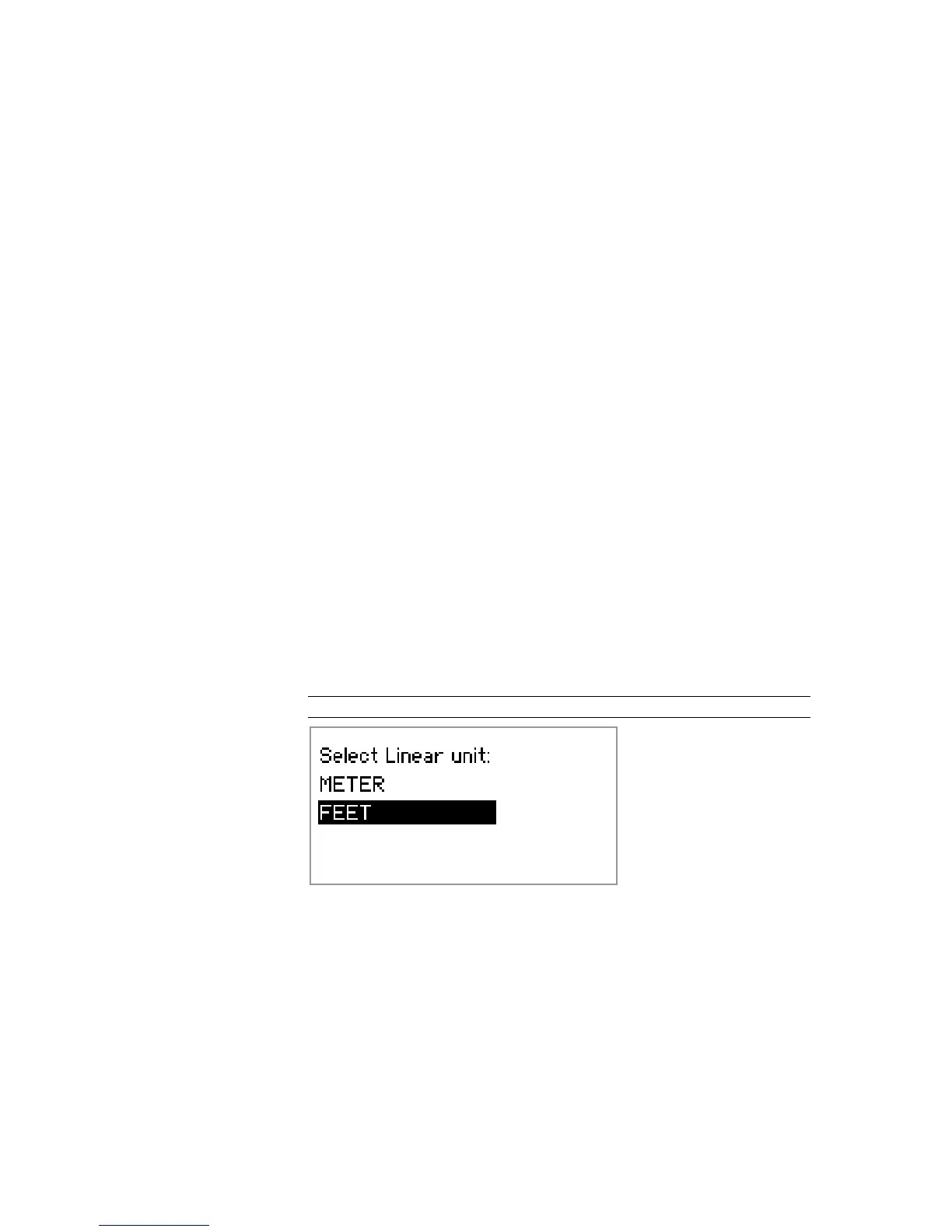

Figure 14 Active option
OK The OK key is used to select the active option.
8.1.2 Enter characters
When Survey Name, Survey Depth, Survey Interval etc are to be
entered, a list with the available characters is displayed.
