MANUAL – REFLEX EZ-TRAC™ | 59
4. To redo the measurement, select REDO. Note, previous
measurement will be replaced.
5. To end the survey, select END.
6. Retrieve the survey system from the borehole.
7. Continue to the section Download data.
9.7.2 Multi Shot execution

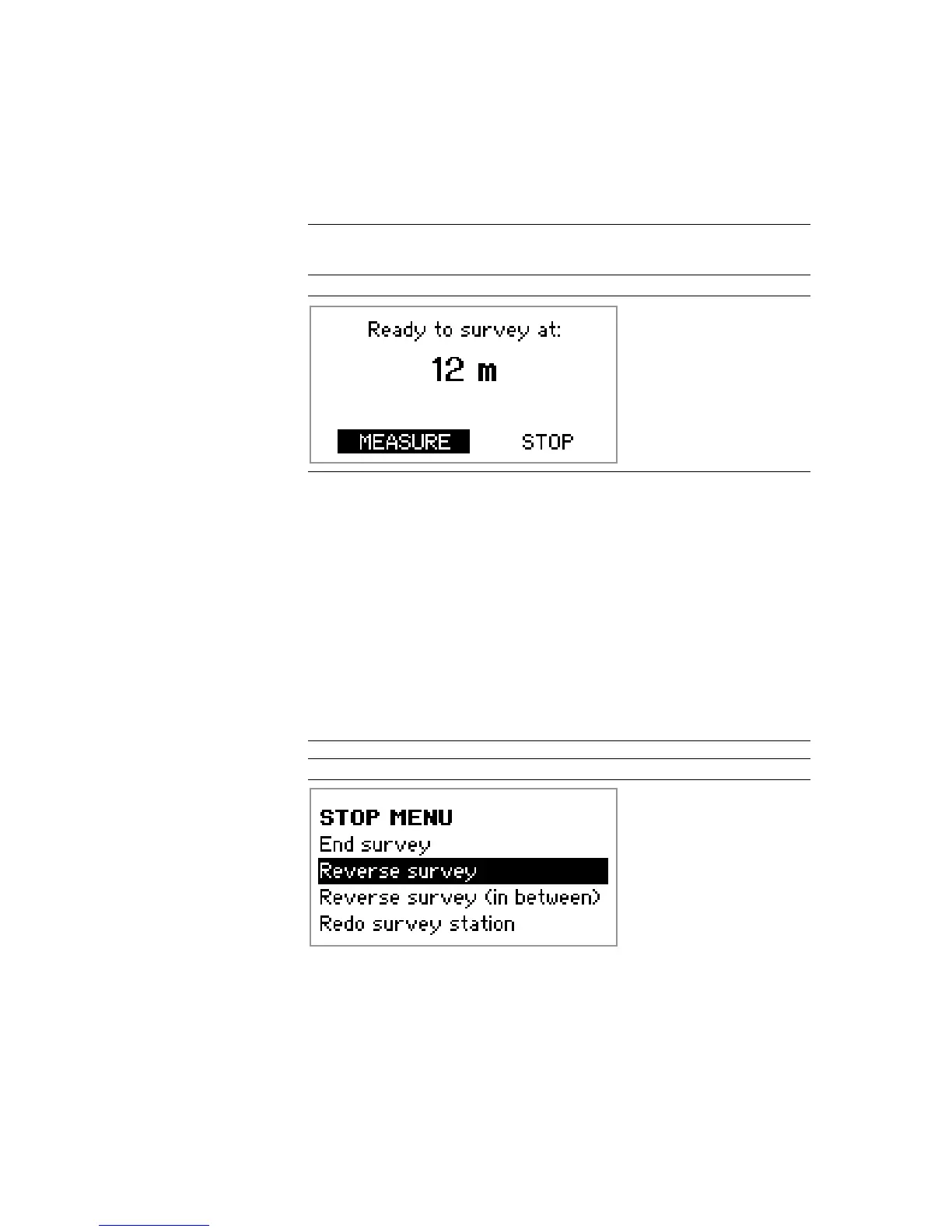

Figure 69 Multi Shot execution
Execute Multi Shot survey
1. Position the survey system at the survey station, using one of the
methods described in chapter Surveying Methods.
2. When the instrument is stationary at the survey station, select
MEASURE on the REFLEX™ EZ-COM unit.
3. Do not move the instrument while ‘Measuring’ is displayed.
4. When ‘Ready to survey’ is displayed, move the instrument to next
survey station.
5. Repeat steps 2-4 until the survey has been completed.
6. Select STOP to stop the survey execution.
7. The STOP menu is displayed.
Figure 70 STOP menu
The STOP menu offers four options.
a) Select End survey to end the survey execution and download the
survey data. Continue to the section Download data.
b) Select Reverse Survey to continue the survey execution in
reverse direction, at the same survey stations. This option is only
available when surveying into the hole. Continue with step 2 in the
Execute Multi Shot survey procedure above.
